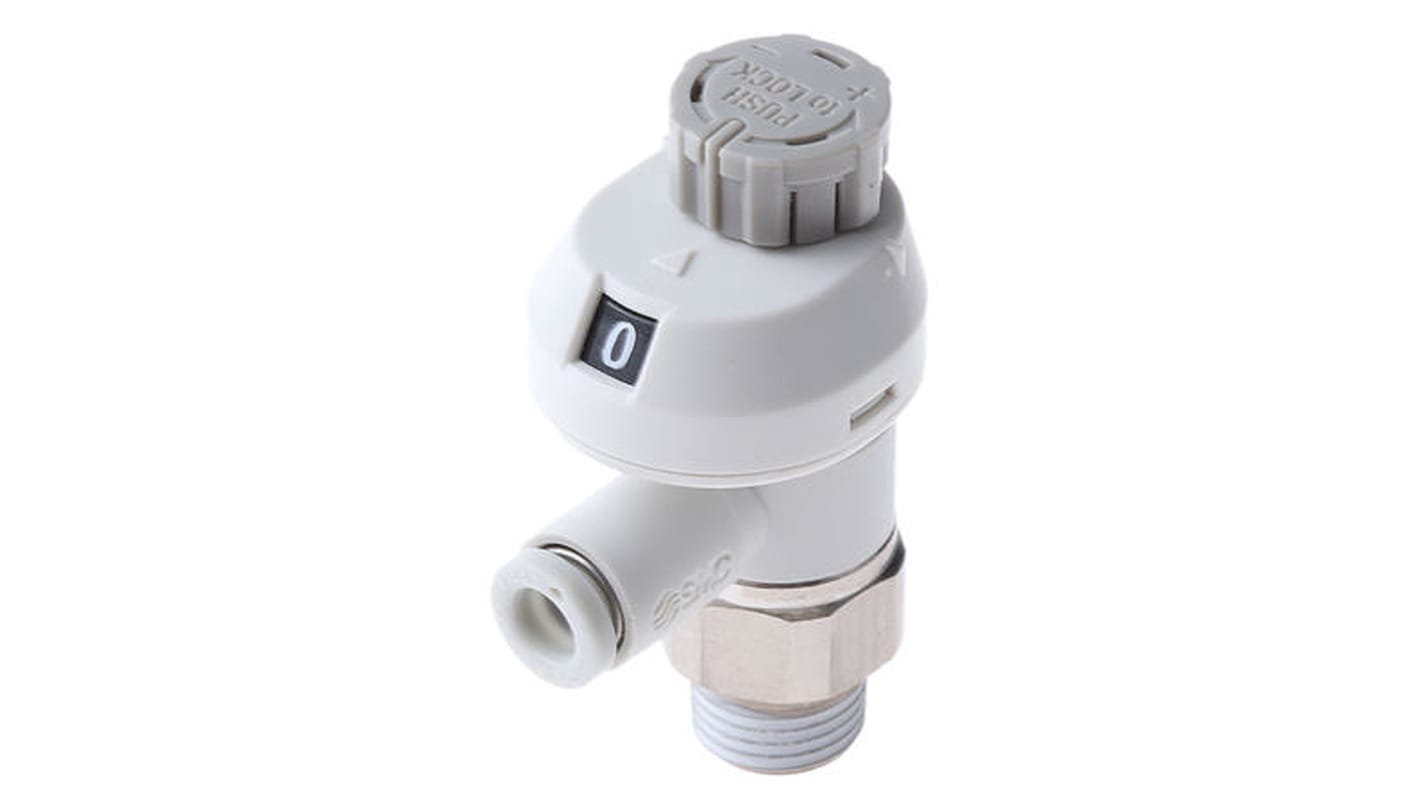

SMC AS-FS Series Elbow Type Speed Controller, Threaded Metric Threaded

RS Stock No.:: 124-3810
Mfr. Part No.:: AS1211FS-M5-23
Brand:: SMC

SMC AS-FS Series Elbow Type Speed Controller, Threaded Metric Threaded

View this category

Subtotal (1 unit)*

£13.21

(exc. VAT)

£15.85

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 13 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£13.21

*price indicative

RS Stock No.:: 124-3810
Mfr. Part No.:: AS1211FS-M5-23
Brand:: SMC

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Speed Controller
	Inlet Connection Type	Threaded
	Outlet Connection Type	Threaded
	Sub Type	Elbow Type
	Series	AS-FS
	Inlet Thread Standard	Metric
	Maximum Operating Pressure	1 Mpa
	Minimum Operating Temperature	-5°C
	Material	Brass, Polyphenylene Sulphide, Polybutylene Terephthalate, POM, Hydrogenated Nitrile Butadiene Rubber, Stainless Steel, Nitrile Rubber (NBR), Steel Wire Rope
	Maximum Operating Temperature	60°C
	Standards/Approvals	RoHS, ISO 10218-1, ISO 4413, ISO 4414, IEC 60204-1
	Hazardous Area Certification	No
	Minimum Operating Pressure	0.1MPa
	Proof Pressure	1.5MPa

	Select all
	Brand SMC
	Product Type Speed Controller
	Inlet Connection Type Threaded
	Outlet Connection Type Threaded
	Sub Type Elbow Type
	Series AS-FS
	Inlet Thread Standard Metric
	Maximum Operating Pressure 1 Mpa
	Minimum Operating Temperature -5°C
	Material Brass, Polyphenylene Sulphide, Polybutylene Terephthalate, POM, Hydrogenated Nitrile Butadiene Rubber, Stainless Steel, Nitrile Rubber (NBR), Steel Wire Rope
	Maximum Operating Temperature 60°C
	Standards/Approvals RoHS, ISO 10218-1, ISO 4413, ISO 4414, IEC 60204-1
	Hazardous Area Certification No
	Minimum Operating Pressure 0.1MPa
	Proof Pressure 1.5MPa

Datasheet

RoHS Status: Exempt

COO (Country of Origin):: FR

Flow Regulator, AS-FS Series

Elbow type meter-out flow controllers suitable for nylon, soft nylon, polyurethane, FEP and PFA tube.

A numeric indicator gives quick and visual indication of the chosen flow setting reducing both errors and setting time and the large snap-lock handle makes changes and adjustments simple.

Colour coding on both the setting dial and tube insert makes it easy to distinguish between meter-in/meter-out and metric and imperial types.

Features and Benefits

Wide viewing angle

High corrosion resistance

Easy to assemble and install

Reduced setting time

Easy identification using the different available colours

Applications

The AS-FS flow regulator is suitable for all general industrial and machining pneumatics applications where accurate and easy setting of actuator are required.

Flow Regulators & Restrictors - SMC

Regulators for controlling the flow of compressed air to pneumatic actuators. SMC’s AS series speed controllers have a larger, push-pull locking dial making precise adjustment and control easy and reducing the setting time by half. Available to suit a range of tubing diameters.
