SMC ASD Series Speed Controller Speed Controller, ASD230FM-M5-04, Inlet Male, Threaded Metric M5 x 0.8, Outlet Female
- RS Stock No.:
- 393-580
- Mfr. Part No.:
- ASD230FM-M5-04
- Brand:
- SMC
Subtotal (1 unit)*
£18.22
(exc. VAT)
£21.86
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £18.22 |
*price indicative
- RS Stock No.:
- 393-580
- Mfr. Part No.:
- ASD230FM-M5-04
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Speed Controller | |
| Inlet Connection Type | Threaded | |
| Outlet Connection Type | Tube One-Touch Fitting | |
| Sub Type | Speed Controller | |
| Inlet Connection Size | M5 x 0.8 | |
| Outlet Connection Size | 4 mm | |
| Series | ASD | |
| Inlet Thread Standard | Metric | |
| Inlet Port Gender | Male | |
| Maximum Operating Pressure | 1.0 Mpa | |
| Material | Polybutylene Terephthalate, Brass | |
| Outlet Port Gender | Female | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 10218-1, IEC 60204-1, RoHS, ISO 4413, ISO 4414 | |
| Minimum Operating Pressure | 0.1MPa | |
| Hazardous Area Certification | NO | |
| Proof Pressure | 1.5MPa | |
| Model Number | ASD230FM-M5-04 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Speed Controller | ||
Inlet Connection Type Threaded | ||
Outlet Connection Type Tube One-Touch Fitting | ||
Sub Type Speed Controller | ||
Inlet Connection Size M5 x 0.8 | ||
Outlet Connection Size 4 mm | ||
Series ASD | ||
Inlet Thread Standard Metric | ||
Inlet Port Gender Male | ||
Maximum Operating Pressure 1.0 Mpa | ||
Material Polybutylene Terephthalate, Brass | ||
Outlet Port Gender Female | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 10218-1, IEC 60204-1, RoHS, ISO 4413, ISO 4414 | ||
Minimum Operating Pressure 0.1MPa | ||
Hazardous Area Certification NO | ||
Proof Pressure 1.5MPa | ||
Model Number ASD230FM-M5-04 | ||
- COO (Country of Origin):
- JP

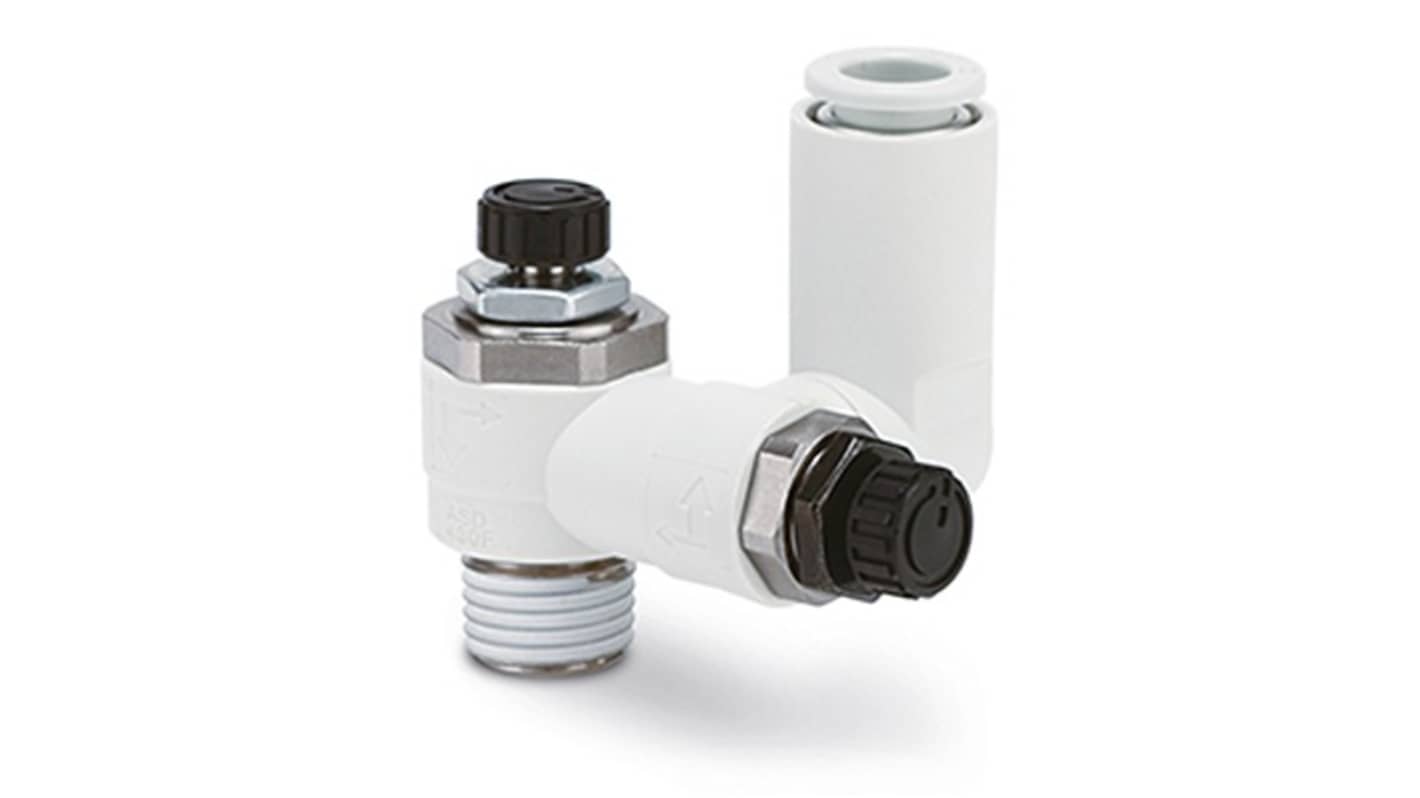

The SMC ASD Series Dual Speed Controller for Low Speed Operation with one touch fitting. Series ASD, combines a meter in and meter out dual speed controller in a single body. The series is available with PT or NPT ports and one touch fittings are standard. Tamper proof and flat head screwdriver adjustable versions are also available for extra protection against inadvertent operation.
Enables bi directional flow control
Unrestricted 360 tube mounting direction
Flow direction symbol on the resin body
Reduces piping man hours and saves space
