SMC AS-FG Series Speed Controller Speed Controller, AS3201FG-03-06S, Inlet Male, Threaded R R 3/8, Outlet Female Tube
- RS Stock No.:
- 393-540
- Mfr. Part No.:
- AS3201FG-03-06S
- Brand:
- SMC
Subtotal (1 unit)*
£22.94
(exc. VAT)
£27.53
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £22.94 |
*price indicative
- RS Stock No.:
- 393-540
- Mfr. Part No.:
- AS3201FG-03-06S
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Speed Controller | |
| Outlet Connection Type | Tube One-Touch Fitting | |
| Inlet Connection Type | Threaded | |
| Sub Type | Speed Controller | |
| Inlet Connection Size | R 3/8 | |
| Outlet Connection Size | 6 mm | |
| Series | AS-FG | |
| Inlet Thread Standard | R | |
| Maximum Operating Pressure | 1.0 Mpa | |
| Inlet Port Gender | Male | |
| Material | Polybutylene Terephthalate, Stainless Steel | |
| Outlet Port Gender | Female | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 9001, JIS B 8370, ISO 14001, ISO 4414, RoHS | |
| Hazardous Area Certification | No | |
| Minimum Operating Pressure | 0.1MPa | |
| Model Number | AS3201FG-03-06S | |
| Proof Pressure | 1.5MPa | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Speed Controller | ||
Outlet Connection Type Tube One-Touch Fitting | ||
Inlet Connection Type Threaded | ||
Sub Type Speed Controller | ||
Inlet Connection Size R 3/8 | ||
Outlet Connection Size 6 mm | ||
Series AS-FG | ||
Inlet Thread Standard R | ||
Maximum Operating Pressure 1.0 Mpa | ||
Inlet Port Gender Male | ||
Material Polybutylene Terephthalate, Stainless Steel | ||
Outlet Port Gender Female | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 9001, JIS B 8370, ISO 14001, ISO 4414, RoHS | ||
Hazardous Area Certification No | ||
Minimum Operating Pressure 0.1MPa | ||
Model Number AS3201FG-03-06S | ||
Proof Pressure 1.5MPa | ||
- COO (Country of Origin):
- JP

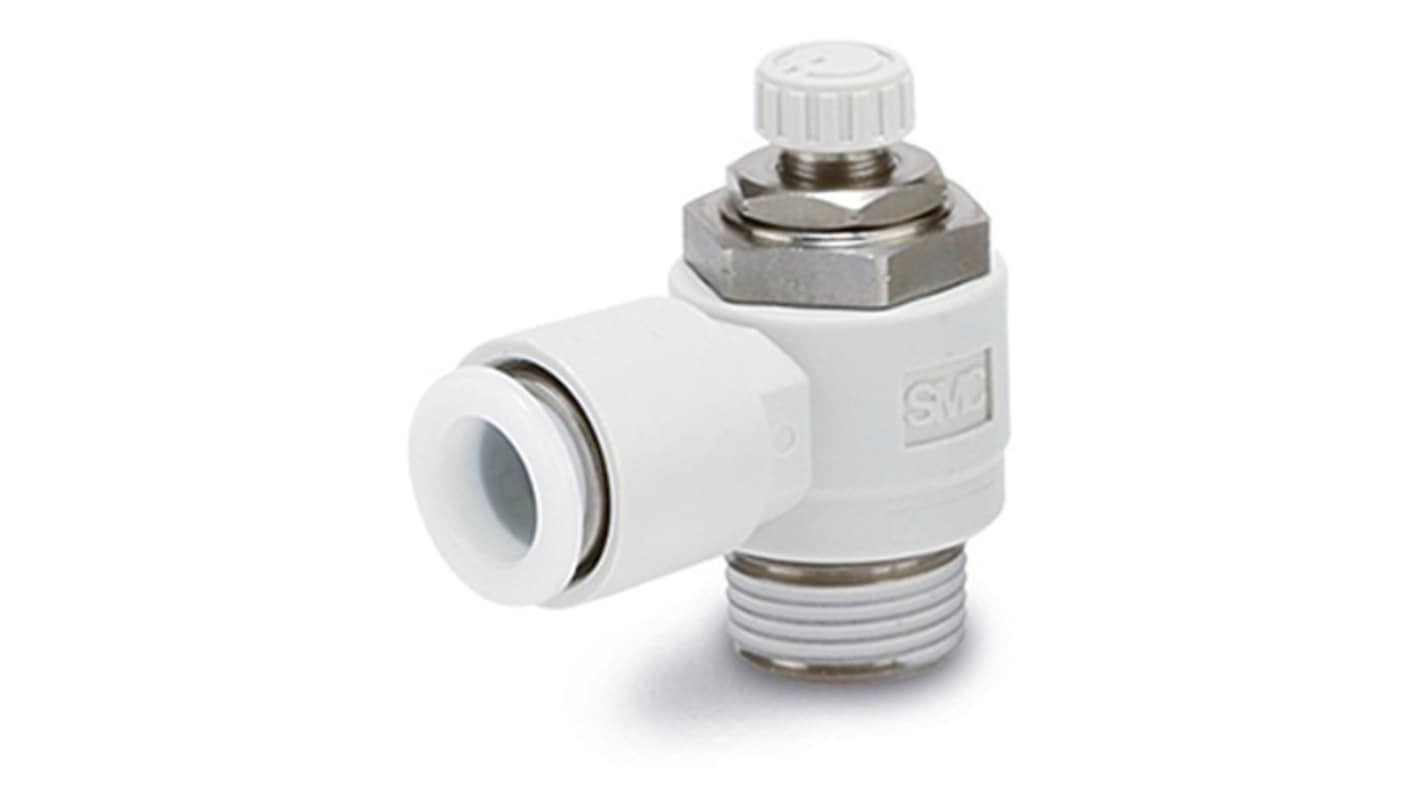

The SMC Flow Controller with built-in one-touch fittings minimize installation time, reduce mounting height, and contribute to a more compact machine design.
Speed may be accurately controlled even at low speed
Elbow type
