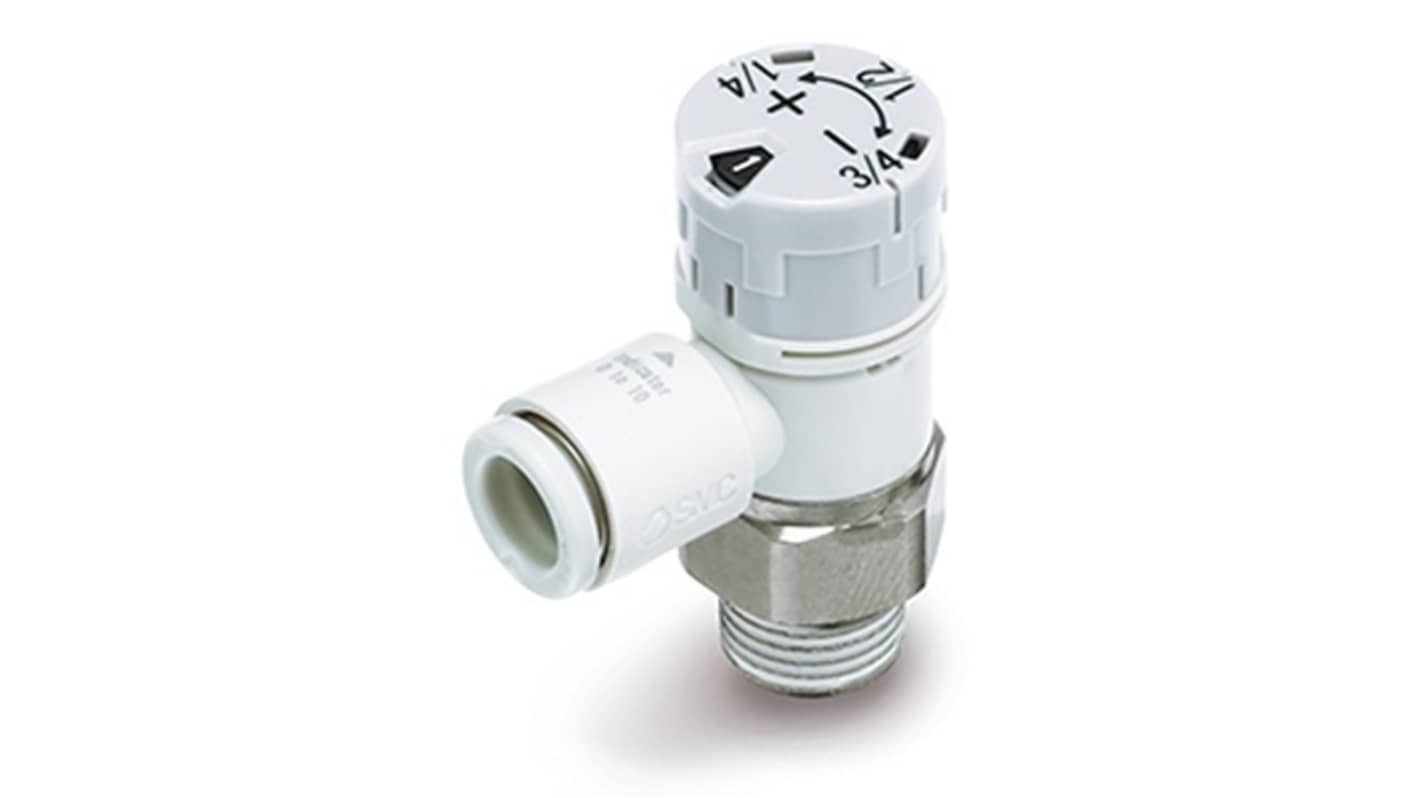

SMC AS Series Speed Controller Speed Controller, AS2201FS-G01-04A, Inlet Female, 1/8 in G G 1/8 in, Outlet Female Tube
- RS Stock No.:
- 393-518
- Mfr. Part No.:
- AS2201FS-G01-04A
- Brand:
- SMC
Subtotal (1 unit)*
£15.83
(exc. VAT)
£19.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 23 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £15.83 |
*price indicative
- RS Stock No.:
- 393-518
- Mfr. Part No.:
- AS2201FS-G01-04A
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Inlet Connection Type | 1/8 in G | |
| Product Type | Speed Controller | |
| Outlet Connection Type | Tube One-Touch Fitting | |
| Sub Type | Speed Controller | |
| Inlet Connection Size | 1/8 in | |
| Outlet Connection Size | 4 mm | |
| Series | AS | |
| Inlet Thread Standard | G | |
| Inlet Port Gender | Female | |
| Maximum Operating Pressure | 1 Mpa | |
| Minimum Operating Temperature | -5°C | |
| Outlet Port Gender | Female | |
| Material | Polybutylene Terephthalate, Brass | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 9001, JIS B 8370, ISO 4414, RoHS, ISO 14001 | |
| Minimum Operating Pressure | 0.1MPa | |
| Hazardous Area Certification | No | |
| Proof Pressure | 1.5MPa | |
| Model Number | AS2201FS-G01-04A | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Inlet Connection Type 1/8 in G | ||
Product Type Speed Controller | ||
Outlet Connection Type Tube One-Touch Fitting | ||
Sub Type Speed Controller | ||
Inlet Connection Size 1/8 in | ||
Outlet Connection Size 4 mm | ||
Series AS | ||
Inlet Thread Standard G | ||
Inlet Port Gender Female | ||
Maximum Operating Pressure 1 Mpa | ||
Minimum Operating Temperature -5°C | ||
Outlet Port Gender Female | ||
Material Polybutylene Terephthalate, Brass | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 9001, JIS B 8370, ISO 4414, RoHS, ISO 14001 | ||
Minimum Operating Pressure 0.1MPa | ||
Hazardous Area Certification No | ||
Proof Pressure 1.5MPa | ||
Model Number AS2201FS-G01-04A | ||
- COO (Country of Origin):
- JP
SMC Series AS Speed Controller, 1/8 inches Inlet Connection size, 4mm Outlet Connection size - AS2201FS-G01-04A
This speed controller is a Compact pneumatic device designed to regulate airflow in industrial automation systems. It is intended for inline use with female 1/8 inches G inlet fittings and 4mm tube outlets, providing controlled flow for pneumatic actuators and tooling where precise motion speed adjustment is required.
Features & Benefits
• Operates across 0.1–1 MPa to manage varied supply pressures
• Rated for use up to 60°C to suit warmer environments
• Constructed from polybutylene terephthalate and brass for Durable service
• Proof pressure of 1.5 MPa enhances safety margin against overpressure
• Female 1/8 inches G inlet simplifies connection to standard G‑threaded lines
• 4mm tube one‑touch outlet enables Rapid tubing connection
• Rated for use up to 60°C to suit warmer environments
• Constructed from polybutylene terephthalate and brass for Durable service
• Proof pressure of 1.5 MPa enhances safety margin against overpressure
• Female 1/8 inches G inlet simplifies connection to standard G‑threaded lines
• 4mm tube one‑touch outlet enables Rapid tubing connection
**Applications**
• Suitable for controlling cylinder retraction and extension speeds
• Ideal for integration in pick‑and‑place automation systems
• Used with pneumatic conveyors for regulated flow to valves
• Can be used for speed adjustment on vacuum grippers in assembly lines
• Ideal for integration in pick‑and‑place automation systems
• Used with pneumatic conveyors for regulated flow to valves
• Can be used for speed adjustment on vacuum grippers in assembly lines
What is the connector type for the supply line?
The inlet uses a female G‑threaded connection sized at 1/8 inches to mate with standard G fittings.
Which materials contact the media and what is their relevance?
The body combines polybutylene terephthalate with brass components to balance chemical resistance and mechanical strength in pneumatic circuits.
How does the outlet facilitate quick installation?
The outlet employs a 4mm tube one‑touch fitting that allows push‑in tubing insertion and simple removal without additional tools.
What proof and operating pressures are provided for safety considerations?
The unit withstands a proof pressure of 1.5 MPa while its normal operating range spans from 0.1 MPa to 1 MPa.
