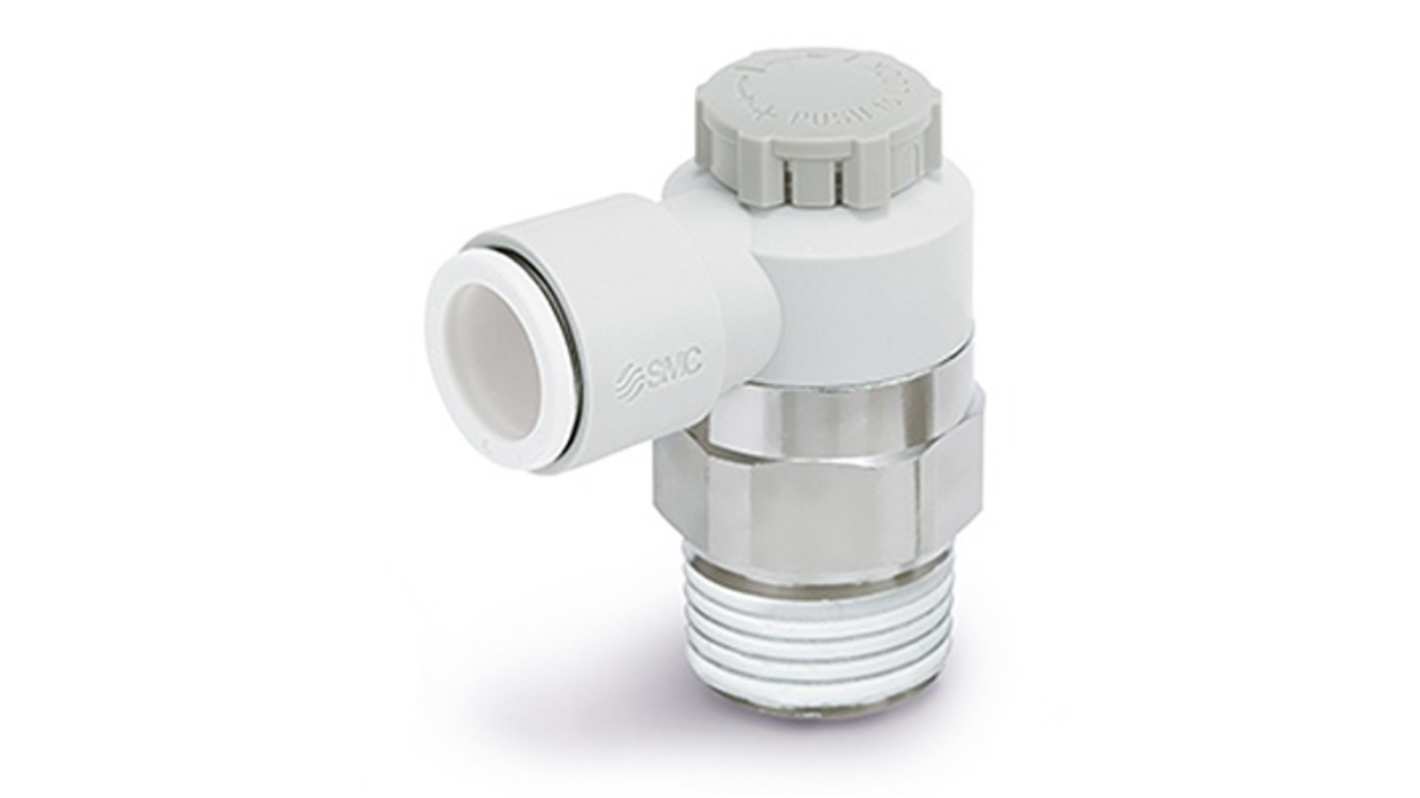

SMC AS Series Speed Controller Speed Controller, AS2201FG-02-08SA, Inlet Female, Threaded R 1/4 in, Outlet Female
- RS Stock No.:
- 393-508
- Mfr. Part No.:
- AS2201FG-02-08SA
- Brand:
- SMC
Subtotal (1 unit)*
£19.90
(exc. VAT)
£23.88
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.90 |
*price indicative
- RS Stock No.:
- 393-508
- Mfr. Part No.:
- AS2201FG-02-08SA
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Outlet Connection Type | One-touch Fitting | |
| Product Type | Speed Controller | |
| Inlet Connection Type | Threaded | |
| Sub Type | Speed Controller | |
| Inlet Connection Size | 1/4 in | |
| Outlet Connection Size | 8 mm | |
| Series | AS | |
| Inlet Thread Standard | R | |
| Inlet Port Gender | Female | |
| Maximum Operating Pressure | 1 Mpa | |
| Minimum Operating Temperature | -5°C | |
| Material | Polybutylene Terephthalate, Brass | |
| Outlet Port Gender | Female | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 9001, ISO 14001, ISO 4414, JIS B 8370, RoHS | |
| Minimum Operating Pressure | 0.1MPa | |
| Hazardous Area Certification | No | |
| Model Number | AS2201FG-02-08SA | |
| Proof Pressure | 1.5MPa | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Outlet Connection Type One-touch Fitting | ||
Product Type Speed Controller | ||
Inlet Connection Type Threaded | ||
Sub Type Speed Controller | ||
Inlet Connection Size 1/4 in | ||
Outlet Connection Size 8 mm | ||
Series AS | ||
Inlet Thread Standard R | ||
Inlet Port Gender Female | ||
Maximum Operating Pressure 1 Mpa | ||
Minimum Operating Temperature -5°C | ||
Material Polybutylene Terephthalate, Brass | ||
Outlet Port Gender Female | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 9001, ISO 14001, ISO 4414, JIS B 8370, RoHS | ||
Minimum Operating Pressure 0.1MPa | ||
Hazardous Area Certification No | ||
Model Number AS2201FG-02-08SA | ||
Proof Pressure 1.5MPa | ||
- COO (Country of Origin):
- IN
SMC Series AS Speed Controller, 1/4 inches Inlet Connection size, 8mm Outlet Connection size - AS2201FG-02-08SA
This speed controller regulates pneumatic flow to control actuator motion in automation and mechanical systems. It is designed for inline mounting with a female threaded inlet and a female one-touch outlet, providing straightforward integration into compressed Air circuits where controlled cylinder or valve speed is required. The unit is constructed from polymer and metal components and operates across typical workshop temperature and pressure ranges.
Features & Benefits
• Maximum operating pressure 1MPa ensures robust system control
• Proof pressure 1.5MPa offers a safety margin against overpressure
• Temperature range -5 to 60°C supports varied ambient conditions
• Inlet 1/4 inches female threaded connection simplifies piping interfaces
• Outlet 8mm one-touch fitting enables quick tube changes
• Polybutylene terephthalate and brass construction resists wear
• Proof pressure 1.5MPa offers a safety margin against overpressure
• Temperature range -5 to 60°C supports varied ambient conditions
• Inlet 1/4 inches female threaded connection simplifies piping interfaces
• Outlet 8mm one-touch fitting enables quick tube changes
• Polybutylene terephthalate and brass construction resists wear
**Applications**
• Suitable for controlling cylinder extension and retraction speeds
• Ideal for fine-tuning pneumatic actuator deceleration
• Used with automated pick-and-place equipment for motion control
• Can be used for adjustable flow in test benches and fixtures
• Used for machine tool auxiliary pneumatic control tasks
• Ideal for fine-tuning pneumatic actuator deceleration
• Used with automated pick-and-place equipment for motion control
• Can be used for adjustable flow in test benches and fixtures
• Used for machine tool auxiliary pneumatic control tasks
What materials are exposed to the compressed Air flow?
Flowing Air contacts components MADE from polybutylene terephthalate and brass, which provide a balance of corrosion resistance and mechanical strength.
How does the connection arrangement aid installation?
The input uses a female 1/4 inches threaded port for standard fittings while the output employs an 8mm one-touch connector for Rapid tubing assembly without additional fittings.
What standards underpin its manufacture and quality systems?
Production and management adhere to ISO 9001 and ISO 14001 standards and the device is designed in accordance with ISO 4414 and JIS B8370 guidelines.
What operational limits should be observed for safe use?
Maintain supply pressure between 0.1MPa and 1MPa and avoid exceeding the proof pressure of 1.5MPa
operate within the -5 to 60°C temperature interval.
