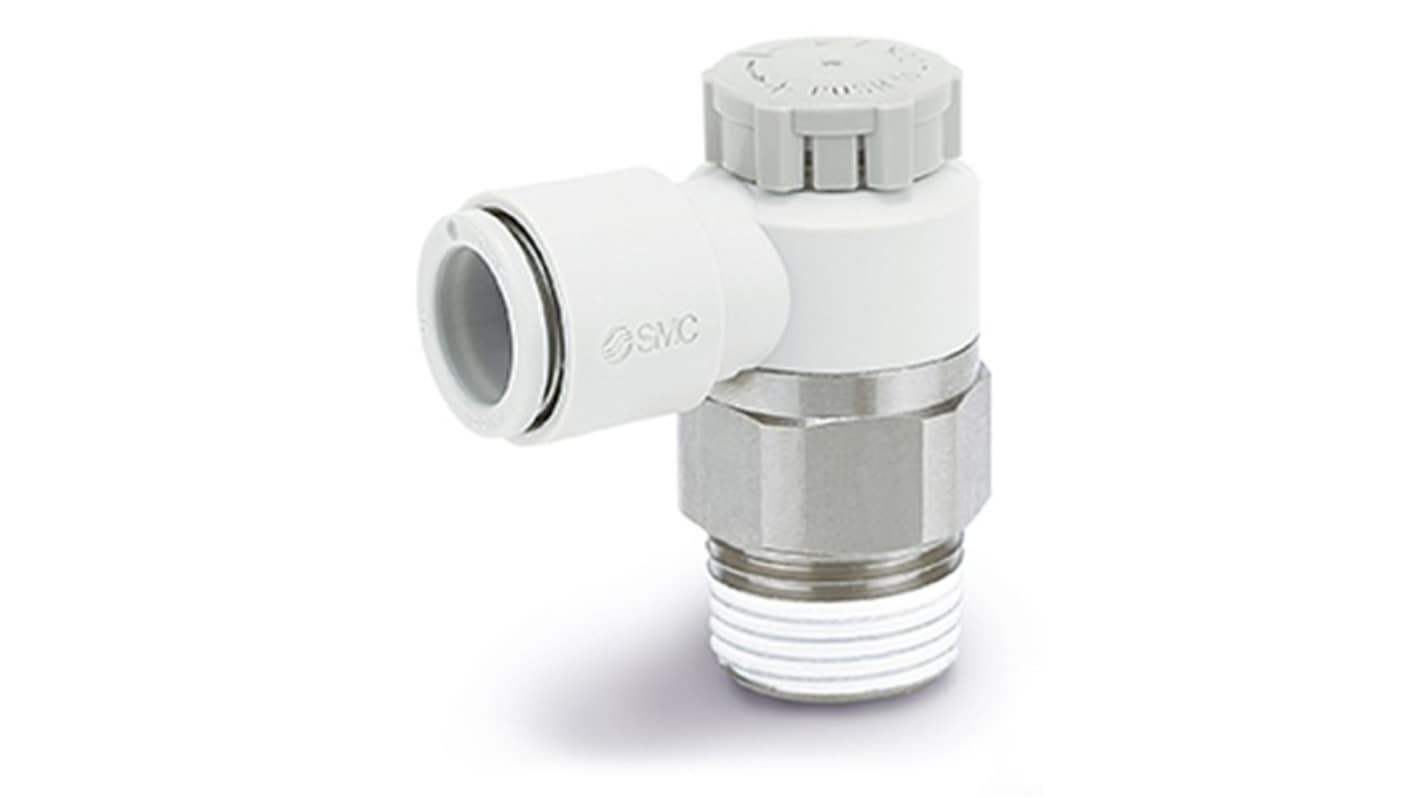

SMC AS1 Series Speed Controller Pneumatic Silencer & Exhaust Restrictor Function Fitting, AS1201F-U10/32-03A, Inlet
- RS Stock No.:
- 392-717
- Mfr. Part No.:
- AS1201F-U10/32-03A
- Brand:
- SMC
Subtotal (1 unit)*
£7.09
(exc. VAT)
£8.51
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 9 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.09 |
*price indicative
- RS Stock No.:
- 392-717
- Mfr. Part No.:
- AS1201F-U10/32-03A
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Inlet Connection Type | Threaded | |
| Product Type | Pneumatic Silencer & Exhaust Restrictor Function Fitting | |
| Outlet Connection Type | Push-in | |
| Sub Type | Speed Controller | |
| Inlet Connection Size | 10-32 UNF | |
| Outlet Connection Size | 4 mm | |
| Series | AS1 | |
| Inlet Thread Standard | UNF | |
| Maximum Operating Pressure | 1 Mpa | |
| Inlet Port Gender | Male | |
| Outlet Port Gender | Male | |
| Material | Polybutylene Terephthalate, Brass | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | NO | |
| Minimum Operating Pressure | 0.1MPa | |
| Model Number | AS1201F-U10/32-03A | |
| Proof Pressure | 1.5MPa | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Inlet Connection Type Threaded | ||
Product Type Pneumatic Silencer & Exhaust Restrictor Function Fitting | ||
Outlet Connection Type Push-in | ||
Sub Type Speed Controller | ||
Inlet Connection Size 10-32 UNF | ||
Outlet Connection Size 4 mm | ||
Series AS1 | ||
Inlet Thread Standard UNF | ||
Maximum Operating Pressure 1 Mpa | ||
Inlet Port Gender Male | ||
Outlet Port Gender Male | ||
Material Polybutylene Terephthalate, Brass | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification NO | ||
Minimum Operating Pressure 0.1MPa | ||
Model Number AS1201F-U10/32-03A | ||
Proof Pressure 1.5MPa | ||
- COO (Country of Origin):
- JP
The SMC flow regulators are standard push-in fittings with a locking push-in mechanism and a uni-fitting thread. They feature an elbow design and are available in orifice sizes Uni 1/8, Uni 1/4, Uni 3/8, and Uni 1/2. The usable tube outer diameters range from 3.2mm to 16mm and 1/8 inch to 1/2 inch.
Operating pressure range 0.1 to 1 MPa
