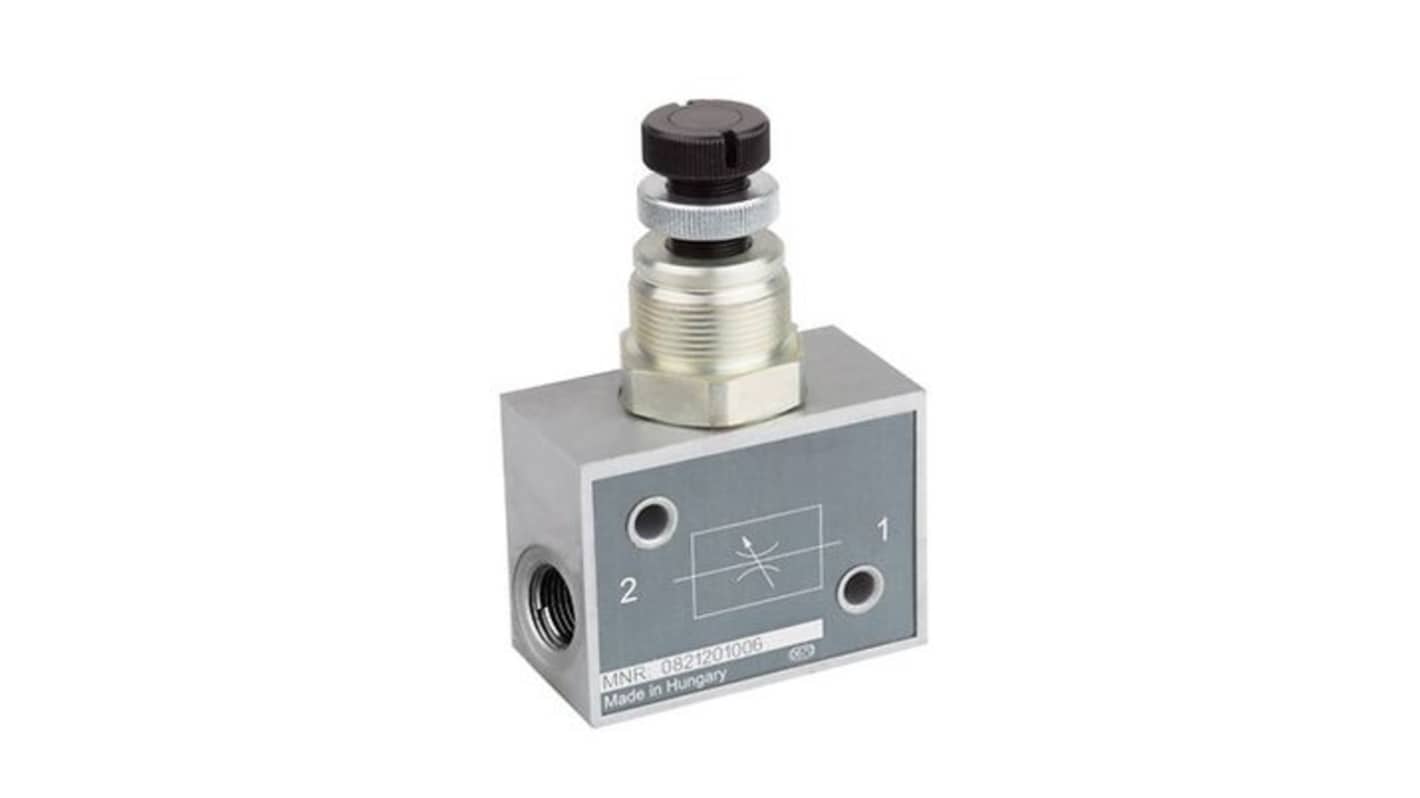

EMERSON – AVENTICS CH01 Series Flow Valve, 0821201006, Inlet Female, Threaded G 1/2, Outlet Female G 1/2
- RS Stock No.:
- 303-569
- Mfr. Part No.:
- 0821201006
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£90.08
(exc. VAT)
£108.10
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 19 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £90.08 |
*price indicative
- RS Stock No.:
- 303-569
- Mfr. Part No.:
- 0821201006
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Product Type | Flow Valve | |
| Inlet Connection Type | Threaded | |
| Series | CH01 | |
| Inlet Thread Standard | G 1/2 | |
| Maximum Operating Pressure | 10 bar | |
| Inlet Port Gender | Female | |
| Material | Aluminium | |
| Outlet Port Gender | Female | |
| Minimum Operating Temperature | 0°C | |
| Outlet Thread Standard | G 1/2 | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | No | |
| Minimum Operating Pressure | 0bar | |
| Hazardous Area Certification | No | |
| Model Number | 0821201006 | |
| Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Product Type Flow Valve | ||
Inlet Connection Type Threaded | ||
Series CH01 | ||
Inlet Thread Standard G 1/2 | ||
Maximum Operating Pressure 10 bar | ||
Inlet Port Gender Female | ||
Material Aluminium | ||
Outlet Port Gender Female | ||
Minimum Operating Temperature 0°C | ||
Outlet Thread Standard G 1/2 | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals No | ||
Minimum Operating Pressure 0bar | ||
Hazardous Area Certification No | ||
Model Number 0821201006 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- HU
The Aventics Throttle Valve is a compact and lightweight solution designed for precise control of compressed air flow in industrial applications. Its robust construction ensures reliable performance in demanding environments.
Throttle bore diameter is 8.5 mm
Port diameters are G 1 by 2
Nominal flow is 2800 l per min
