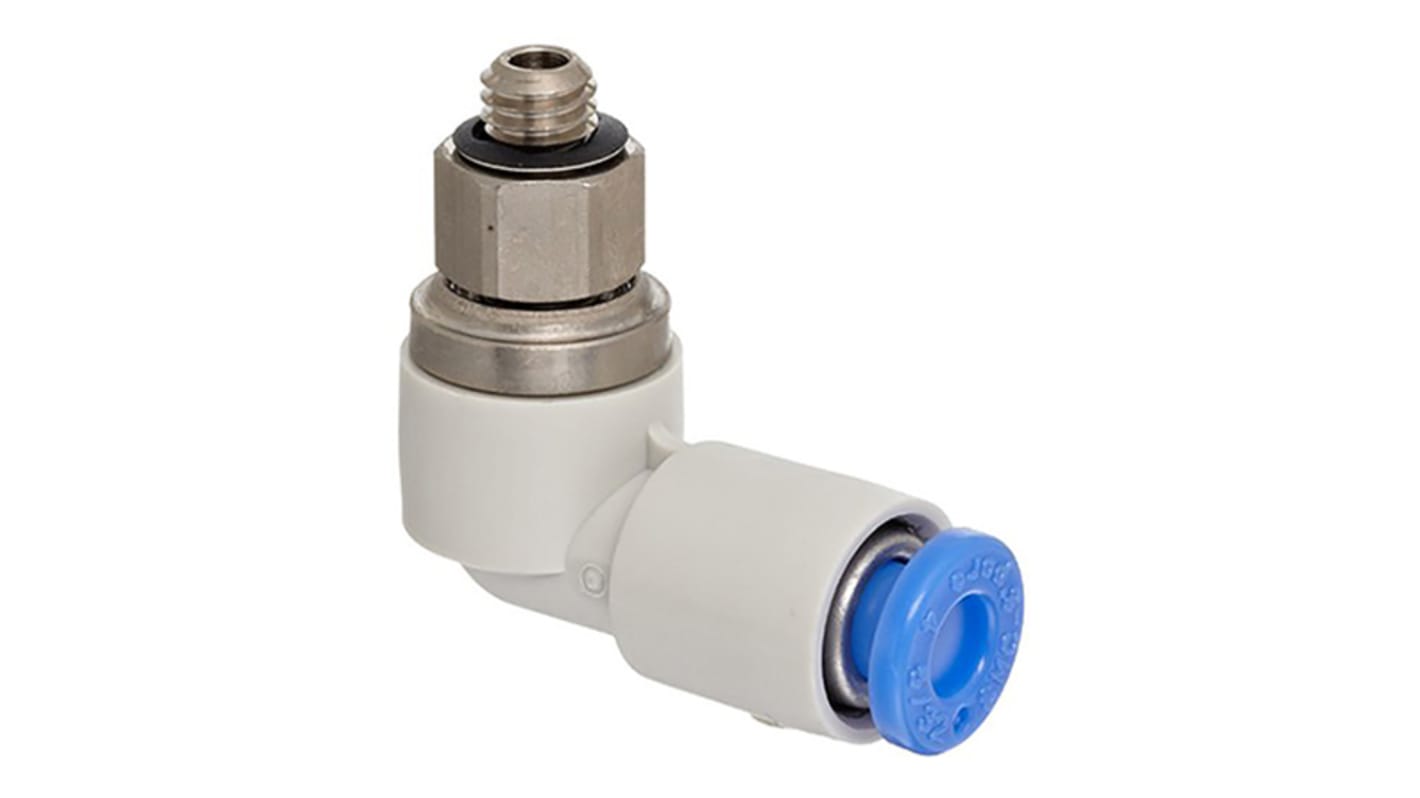

SMC KSL Series, Threaded-to-Tube Connection Style

View all Pneumatic Fittings
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Photo of Pneumatic Fittings & Air Hose
Explore our Air hose range
Need compressed air system for your fittings? You’re in the right place. Our wide range of air hoses includes everything you need—all designed for secure, efficient performance. With both fittings and hoses available side by side, it’s easy to find compatible components and build a complete setup that works for your space and application.
Shop Now
RS Stock No.:
851-4311
Mfr. Part No.:
KSL06-M5
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Connection Style

Threaded-to-Tube

Threaded Connection

M5 x 0.8 Male

Manufacturer Series

KSL

Thread Material

Nickel Plated Brass

Maximum Operating Pressure

1 MPa, 3 (Proof) MPa

Minimum Operating Temperature

-5°C

Body Material

PBT

Maximum Operating Temperature

+60°C

Angle

90°

Rotary Adaptors - KS Series


The KS series from SMC are rotary one-touch fittings with a double ball race bearing for high speed applications. This series is suitable for vacuum or pressure applications, applicable to use for oscillating and rotating sections in robots.

Ball race bearing for oscillating or 360° rotating applications
One-touch collet includes anti tube-rotation mechanism
Maximum rotational speed 500rpm (4/6mm), 400rpm (8mm)
Low torque rotation style
Copper-free specifications
Electro less nickel plated stud


Thread-to-Tube Adaptors
