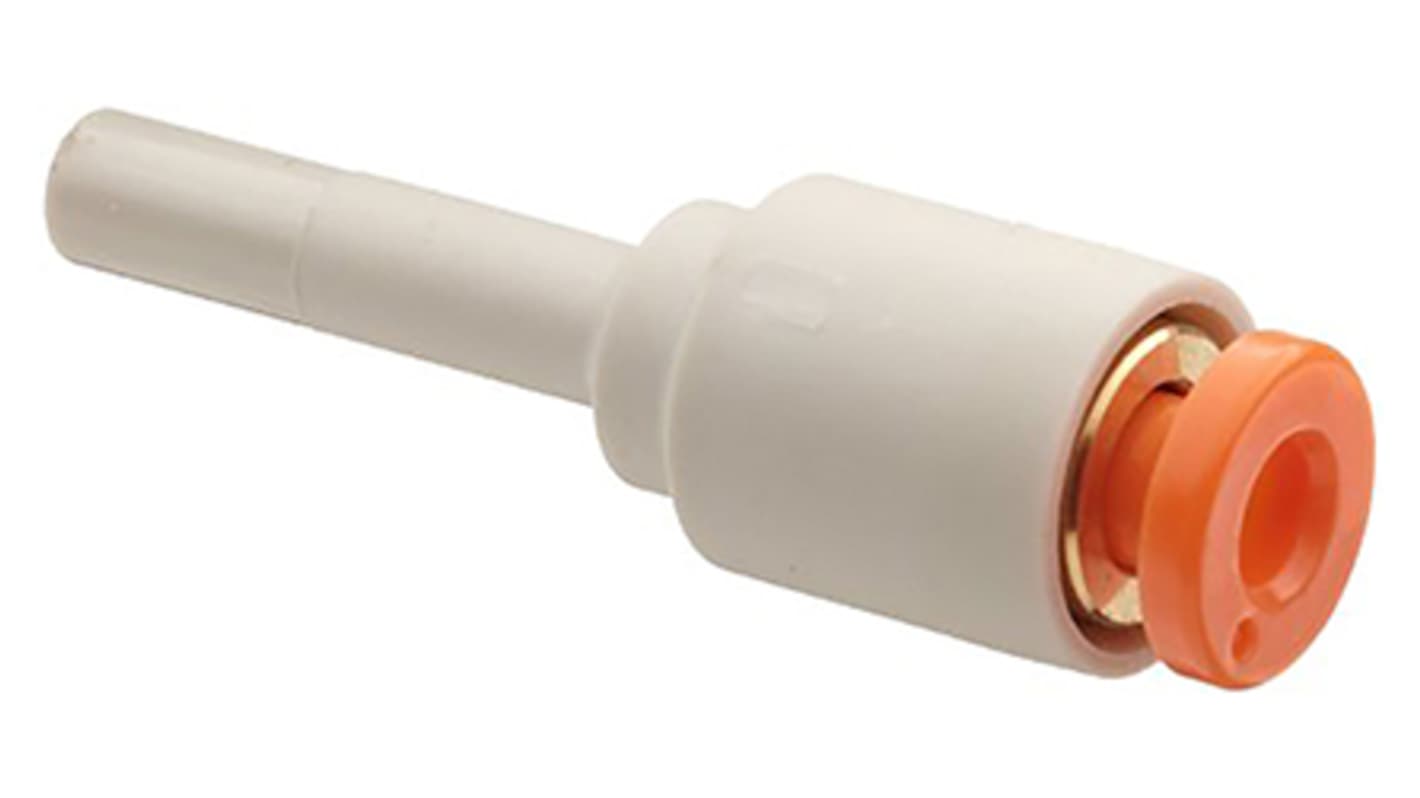

SMC KQ2 Series, Tube-to-Tube Connection Style

View all Pneumatic Fittings
Bulk discount available

Subtotal (1 unit)*

£1.01

(exc. VAT)

£1.21

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£1.01
5 - 9£0.97
10 +£0.94

*price indicative

Photo of Pneumatic Fittings & Air Hose
Explore our Air hose range
Need compressed air system for your fittings? You’re in the right place. Our wide range of air hoses includes everything you need—all designed for secure, efficient performance. With both fittings and hoses available side by side, it’s easy to find compatible components and build a complete setup that works for your space and application.
Shop Now
RS Stock No.:
840-4211
Mfr. Part No.:
KQ2R07-09A
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Connection Style

Tube-to-Tube

Manufacturer Series

KQ2

Maximum Operating Pressure

1 MPa, 3 MPa

Body Material

PBT

Minimum Operating Temperature

-5 °C, 0 °C

Maximum Operating Temperature

+40 °C, +60 °C

COO (Country of Origin):
JP

Plug-in Reducer KQ2R


The KQ2R plug-in reducer fittings from SMC are quick and easy to install into your pneumatic fittings. These KQ2R plug-in reducers are also more compact in design which means that these connectors can be used within a confined space. Plug-in reducers are designed to change the size of one-touch fittings. The new KQ2 range of products are lighter than previous models and have the advantage of improved insertion and removal forces.

Can be used under a wide range of pressures from a low vacuum to 1MPa
Low force required for fitting and removal
Compact dimensions for use within smaller spaces


Tube-to-Tube Fittings & Plugs


Sealant coated threads minimise assembly time. The fittings can be used on vacuum or positive pressure lines. Suitable for use with nylon, soft nylon or polyurethane tube for compressed air or water (general industry) conveyance.


Maximum operating pressure 10 bar
Maximum vacuum operating pressure -100kPa
Proof pressure 3MPa
Ambient and fluid temperature -5 to +60°C (water 0 - 40°C)
