Legris Straight Threaded Adaptor, G 1/4 Male to Push In 6 mm, Threaded-to-Tube Connection Style
- RS Stock No.:
- 486-8967
- Mfr. Part No.:
- 7880 06 13
- Brand:
- Legris
Bulk discount available
Subtotal (1 pair)*
£66.82
(exc. VAT)
£80.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pair(s) | Per Pair |
---|---|
1 - 4 | £66.82 |
5 - 9 | £64.77 |
10 + | £62.68 |
*price indicative
- RS Stock No.:
- 486-8967
- Mfr. Part No.:
- 7880 06 13
- Brand:
- Legris
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Legris | |
Connector A | G 1/4 Male | |
Connector B | Push In 6 mm | |
Pneumatic Fitting Type | Straight Threaded Adaptor | |
Connection Style | Threaded-to-Tube | |
Threaded Connection | G 1/4 Male | |
Thread Material | Nickel Plated Brass | |
Body Material | Nickel Plated Brass | |
Maximum Operating Pressure | 10 bar | |
Mounting Type | Inline | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +70°C | |
Finish | Nickel Plated | |
Select all | ||
---|---|---|
Brand Legris | ||
Connector A G 1/4 Male | ||
Connector B Push In 6 mm | ||
Pneumatic Fitting Type Straight Threaded Adaptor | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection G 1/4 Male | ||
Thread Material Nickel Plated Brass | ||
Body Material Nickel Plated Brass | ||
Maximum Operating Pressure 10 bar | ||
Mounting Type Inline | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Finish Nickel Plated | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

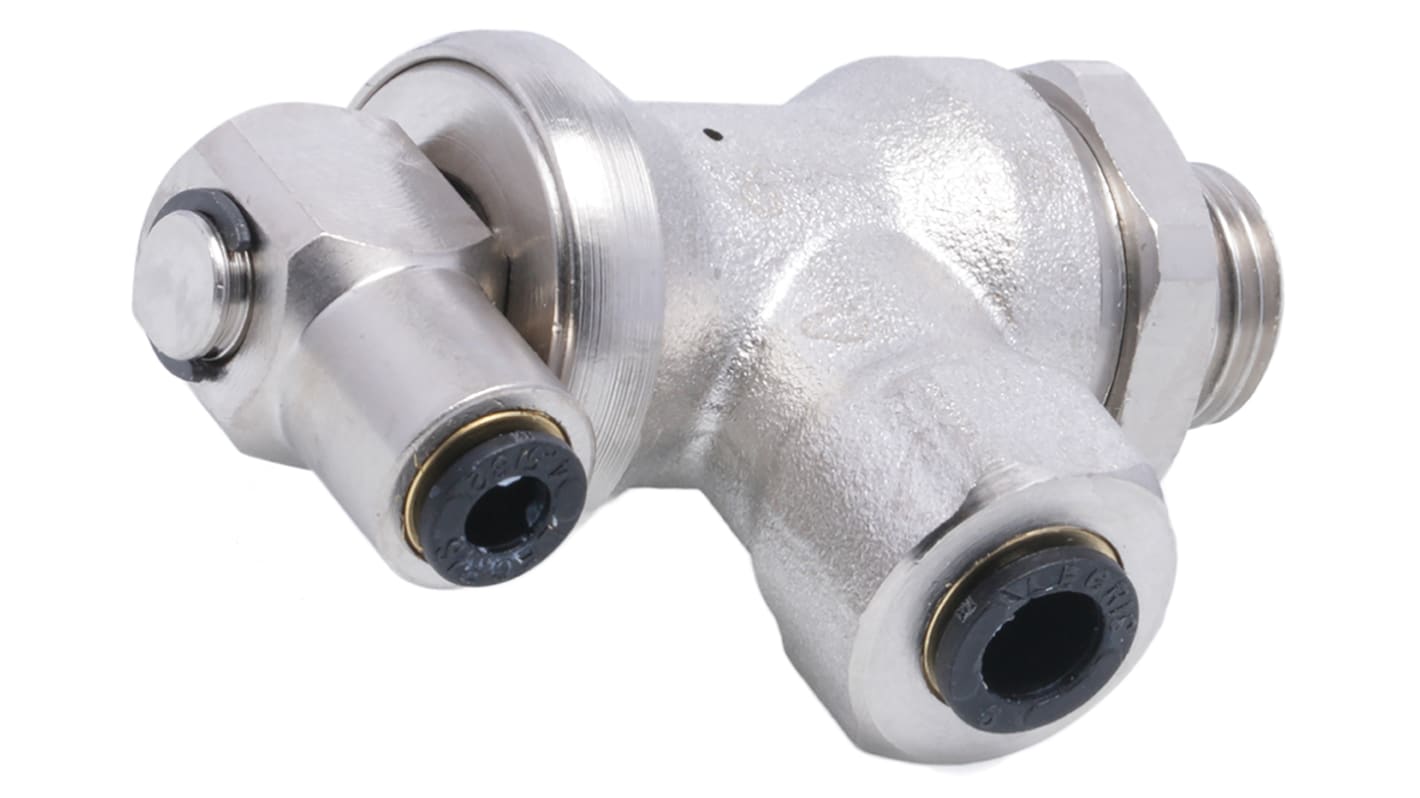

Blocking Fittings
These fittings can be mounted in pairs on a cylinder to lock the piston by simultaneously cutting off the supply and exhaust.,Safety or functional locks are more precise and rapid when blocking fittings are provided on the cylinder: the volumes of air in the pipework no longer need to be taken into consideration.
Compatible with all cylinders (horizontal and vertical)
Load remains in a stable position under all circumstances
Operation is via pilot supply using 4mm OD tubing
Load remains in a stable position under all circumstances
Operation is via pilot supply using 4mm OD tubing

Blocking & Venting
A range of blocking and venting fittings with BSP threaded inlet and LF3000 push-in outlet connections. Maximum working pressure is 10 bar, and operating temperature range is -10 to +80°C.
