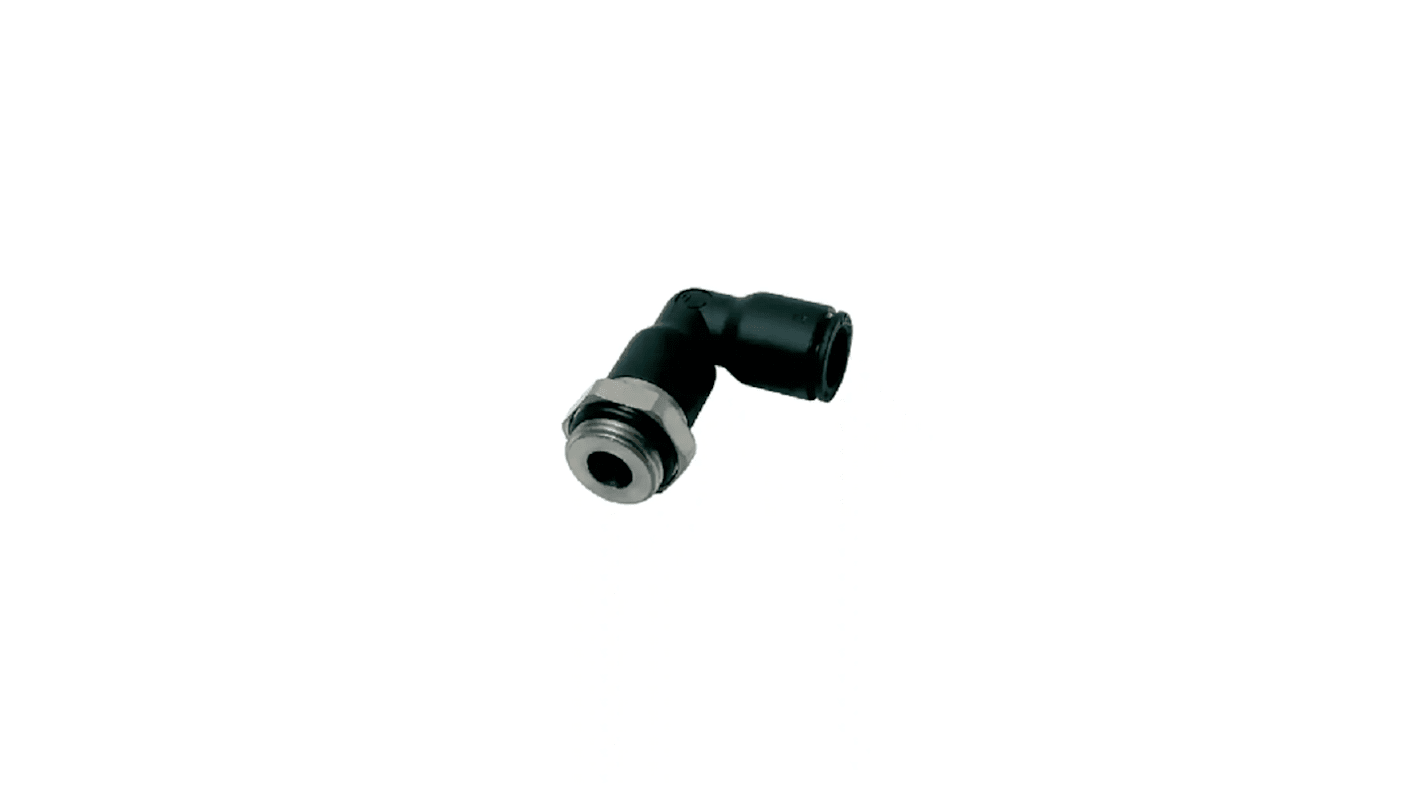

Legris 3169 Series Elbow Threaded Adaptor, G 1/4 Male to Push In 12 mm, Threaded-to-Tube Connection Style
- RS Stock No.:
- 245-5181
- Mfr. Part No.:
- 3169 12 13
- Brand:
- Legris
6 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price 1 Box of 10
£101.25
(exc. VAT)
£121.50
(inc. VAT)
Box(es) | Per Box | Per unit* |
1 + | £101.25 | £10.125 |
*price indicative |
- RS Stock No.:
- 245-5181
- Mfr. Part No.:
- 3169 12 13
- Brand:
- Legris
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details
The Legris LF 3000® pneumatic extended stud elbow fitting offers wide variety of shapes and configurations, allows you to find the perfect connector to meet your needs and thus optimise the use of your equipment. The push-in fitting is the most intuitive way of connecting tubes to a fitting in order to create a fluid distribution network. Thanks to its quick installation, versatility and exceptional lifespan, the push-in fitting contributes to improving machine efficiency.
Materials with high resistance
Durability of product and equipment
100% leak-tested in production
Full bore for optimum flow
Compact and aesthetic design: reduced dimensions for space-saving
Lightweight: reduced energy consumption of operating system
Durability of product and equipment
100% leak-tested in production
Full bore for optimum flow
Compact and aesthetic design: reduced dimensions for space-saving
Lightweight: reduced energy consumption of operating system
Specifications
Attribute | Value |
---|---|
Connector A | G 1/4 Male |
Connector B | Push In 12 mm |
Pneumatic Fitting Type | Elbow Threaded Adaptor |
Connection Style | Threaded-to-Tube |
Threaded Connection | G 1/4 Male |
Manufacturer Series | 3169 |
Number of Inlet Ports | 1 |
Number of Outlet Ports | 1 |
Maximum Operating Pressure | 20 bar |
