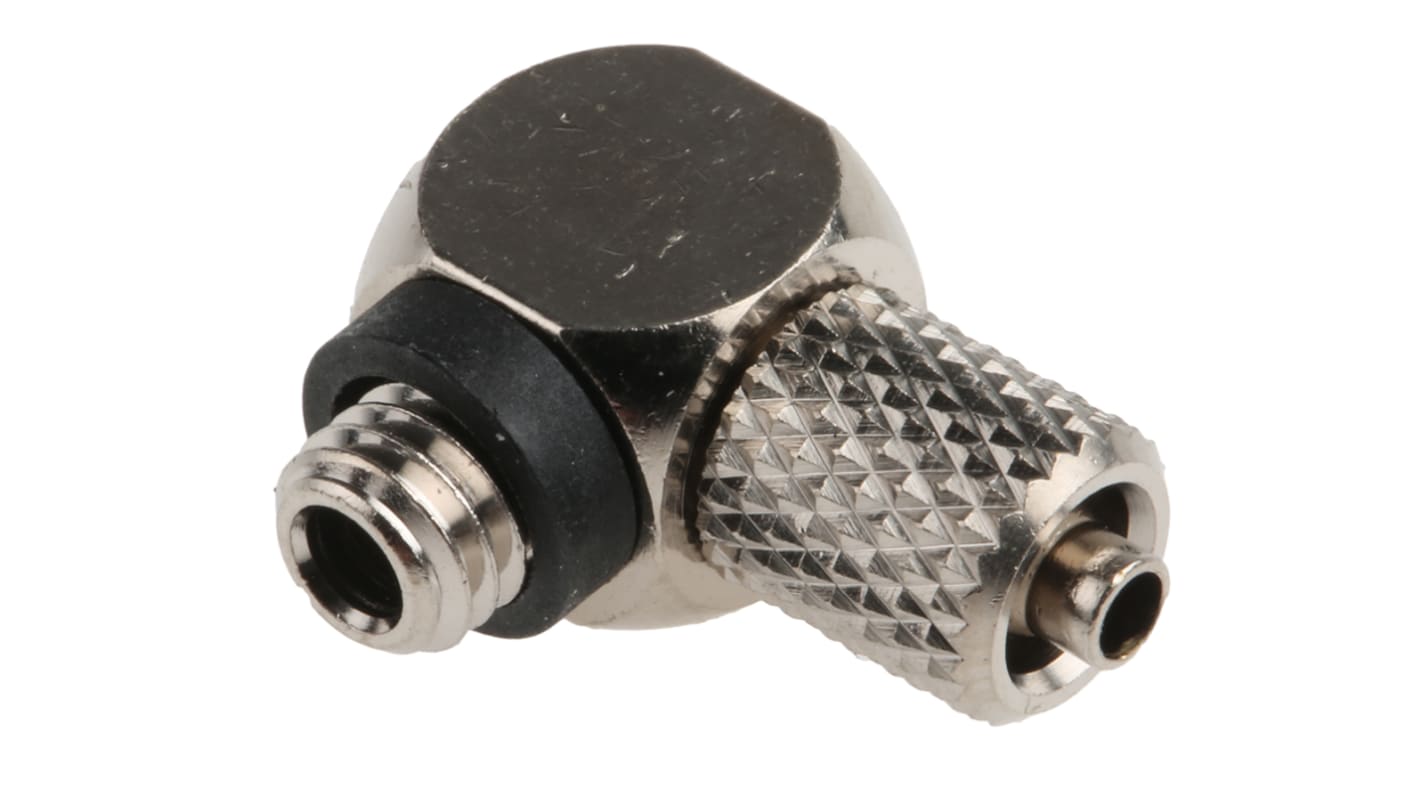

Hose Elbow
Elbows for connecting another pipe fitting at an angle of 45° or 90°.
Primary connection M5
The SMC miniature fittings is made from electroless nickel plated.
Fluid air, water
Ambient and fluid temperature -5 to 60 °C
Ambient and fluid temperature -5 to 60 °C
Threaded Adaptors & Accessories
M5 Nickel plated miniature fittings offering a compact and space saving design
The tube has a large retaining force with hose nipples assuring easy removal
Suitable for nylon, soft nylon and polyurethane tubing
The tube has a large retaining force with hose nipples assuring easy removal
Suitable for nylon, soft nylon and polyurethane tubing
Specifications
Attribute | Value |
---|---|
Connector A | M5 Male |
Connector B | Barbed 4 mm |
Pneumatic Fitting Type | Elbow Threaded Adaptor |
Connection Style | Threaded-to-Tube |
Threaded Connection | M5 Male |
Manufacturer Series | M |
Swivel Connection | No |
Body Material | Nickel Plated Brass |
Angle | 90° |
Maximum Operating Pressure | 1.5 MPa |
