RS PRO Push-in Fitting, M5 Male to Push In 4 mm, Threaded-to-Tube Connection Style
- RS Stock No.:
- 176-1412
- Brand:
- RS PRO
Subtotal (1 pack of 10 units)*
£30.39
(exc. VAT)
£36.47
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 110 unit(s) ready to ship
- Plus 60 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £3.039 | £30.39 |
*price indicative
- RS Stock No.:
- 176-1412
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Connector A | M5 Male | |
Connector B | Push In 4 mm | |
Pneumatic Fitting Type | Push-in Fitting | |
Connection Style | Threaded-to-Tube | |
Threaded Connection | M5 Male | |
Thread Material | Brass | |
Maximum Operating Temperature | +80°C | |
Swivel Connection | Yes | |
Maximum Operating Pressure | 20 bar | |
Angle | 90° | |
Minimum Operating Temperature | -20°C | |
Standards Met | 1907/2006 (REACH), ISO 14743:2004, PED 2014/68/UE | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Connector A M5 Male | ||
Connector B Push In 4 mm | ||
Pneumatic Fitting Type Push-in Fitting | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection M5 Male | ||
Thread Material Brass | ||
Maximum Operating Temperature +80°C | ||
Swivel Connection Yes | ||
Maximum Operating Pressure 20 bar | ||
Angle 90° | ||
Minimum Operating Temperature -20°C | ||
Standards Met 1907/2006 (REACH), ISO 14743:2004, PED 2014/68/UE | ||
- COO (Country of Origin):
- IT

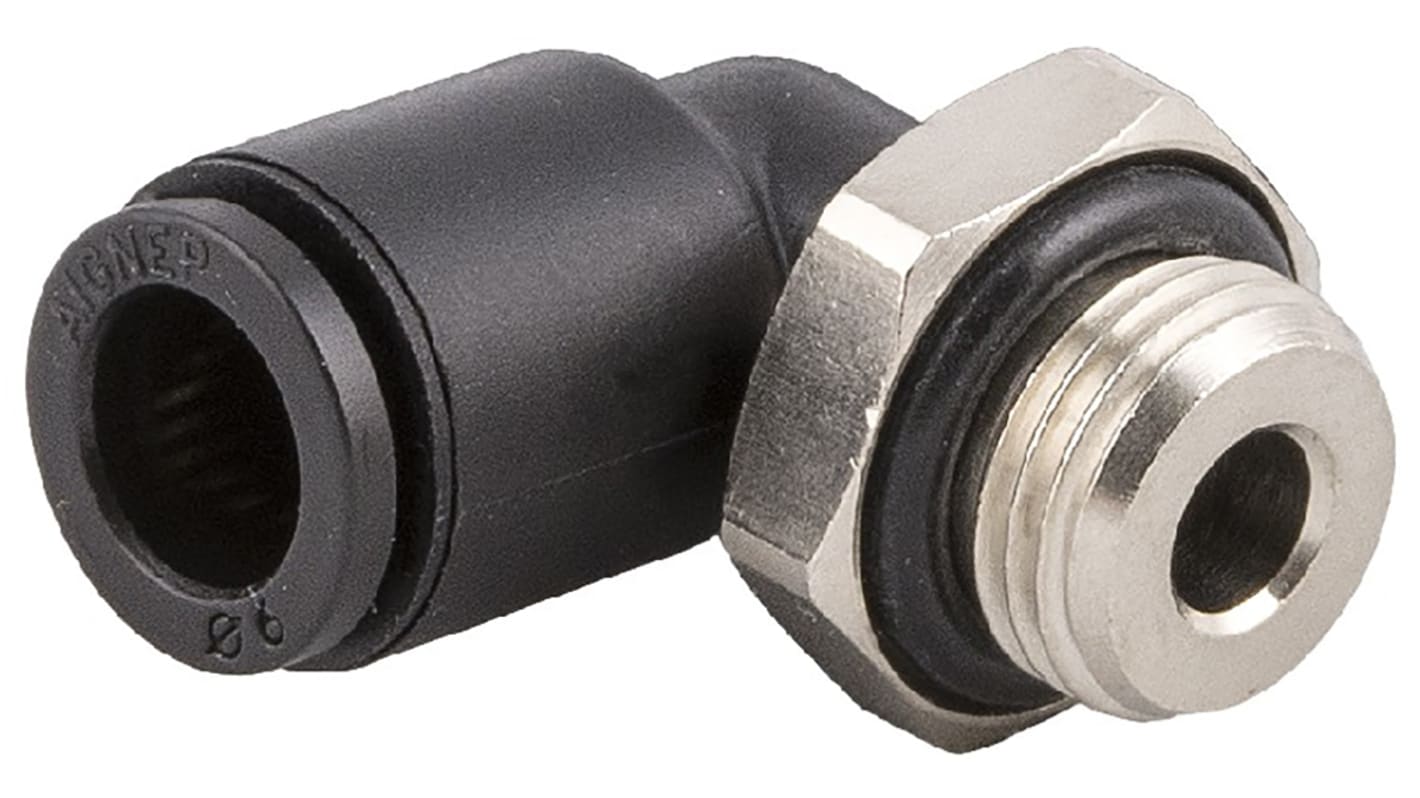

RS PRO Elbow Threaded Adaptor, M5 Male to Push In 4 mm, 20 bar
This RS PRO elbow threaded adaptor makes it easy to install tubing around corners or inside confined spaces. It features a swivel connection, so it's frequently used in situations where you want to prevent twists and kinks in tubing.
The part is made of brass and technopolymer material, both of which are highly resistant to chemicals. The adaptor also withstands a temperature range of -20ºC to +80ºC and maximum pressure of 20 bar, making it well-suited for a wide range of environments. It's Restriction of Hazardous Substances (RoHS) compliant, meaning it contains only minimal levels of any harmful materials.
The part is made of brass and technopolymer material, both of which are highly resistant to chemicals. The adaptor also withstands a temperature range of -20ºC to +80ºC and maximum pressure of 20 bar, making it well-suited for a wide range of environments. It's Restriction of Hazardous Substances (RoHS) compliant, meaning it contains only minimal levels of any harmful materials.
Features and Benefits
• Angle of 90º
• Elbow threaded-to-tube pneumatic adaptor
• Male threaded connection size of M5
• Push-in connection diameter of 4 mm
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Swivel connection
• Brass thread material
• Standards met of Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) 1907/2006, International Organisation of Standardisation (ISO) 14743:2004 and Pressure Equipment Directive (PED) 2014/68/UE
• Elbow threaded-to-tube pneumatic adaptor
• Male threaded connection size of M5
• Push-in connection diameter of 4 mm
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Swivel connection
• Brass thread material
• Standards met of Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) 1907/2006, International Organisation of Standardisation (ISO) 14743:2004 and Pressure Equipment Directive (PED) 2014/68/UE
