Legris3312 1 Outlet Pneumatic Manifold Threaded Fitting G 1/8 Female G 1/8
- RS Stock No.:
- 146-6888
- Mfr. Part No.:
- 3312 00 10
- Brand:
- Legris
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 146-6888
- Mfr. Part No.:
- 3312 00 10
- Brand:
- Legris
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legris | |
| Number of Outlet Ports | 1 | |
| Outlet Port | G 1/8 Female | |
| Number of Inlet Ports | 1 | |
| Inlet Port | G 1/8 Female | |
| Manufacturer Series | 3312 | |
| Material | Anodised Aluminium | |
| Maximum Operating Pressure | 20 bar | |
| Outlet Port - Thread Size | 1/8in | |
| Maximum Operating Temperature | +80°C | |
| Outlet Port - Gender | Female | |
| Outlet Port - Thread Standard | G | |
| Inlet Port - Thread Size | 1/8in | |
| Inlet Port - Thread Standard | G | |
| Inlet Port - Gender | Female | |
| Minimum Operating Temperature | -10°C | |
| Standards Met | ATEX, PED 97/23/EC | |
| Inlet Port - Connection Type | Threaded | |
| Connection Style | Threaded | |
| Outlet Port - Connection Type | Threaded | |
Select all | ||
|---|---|---|
Brand Legris | ||
Number of Outlet Ports 1 | ||
Outlet Port G 1/8 Female | ||
Number of Inlet Ports 1 | ||
Inlet Port G 1/8 Female | ||
Manufacturer Series 3312 | ||
Material Anodised Aluminium | ||
Maximum Operating Pressure 20 bar | ||
Outlet Port - Thread Size 1/8in | ||
Maximum Operating Temperature +80°C | ||
Outlet Port - Gender Female | ||
Outlet Port - Thread Standard G | ||
Inlet Port - Thread Size 1/8in | ||
Inlet Port - Thread Standard G | ||
Inlet Port - Gender Female | ||
Minimum Operating Temperature -10°C | ||
Standards Met ATEX, PED 97/23/EC | ||
Inlet Port - Connection Type Threaded | ||
Connection Style Threaded | ||
Outlet Port - Connection Type Threaded | ||
- COO (Country of Origin):
- HU

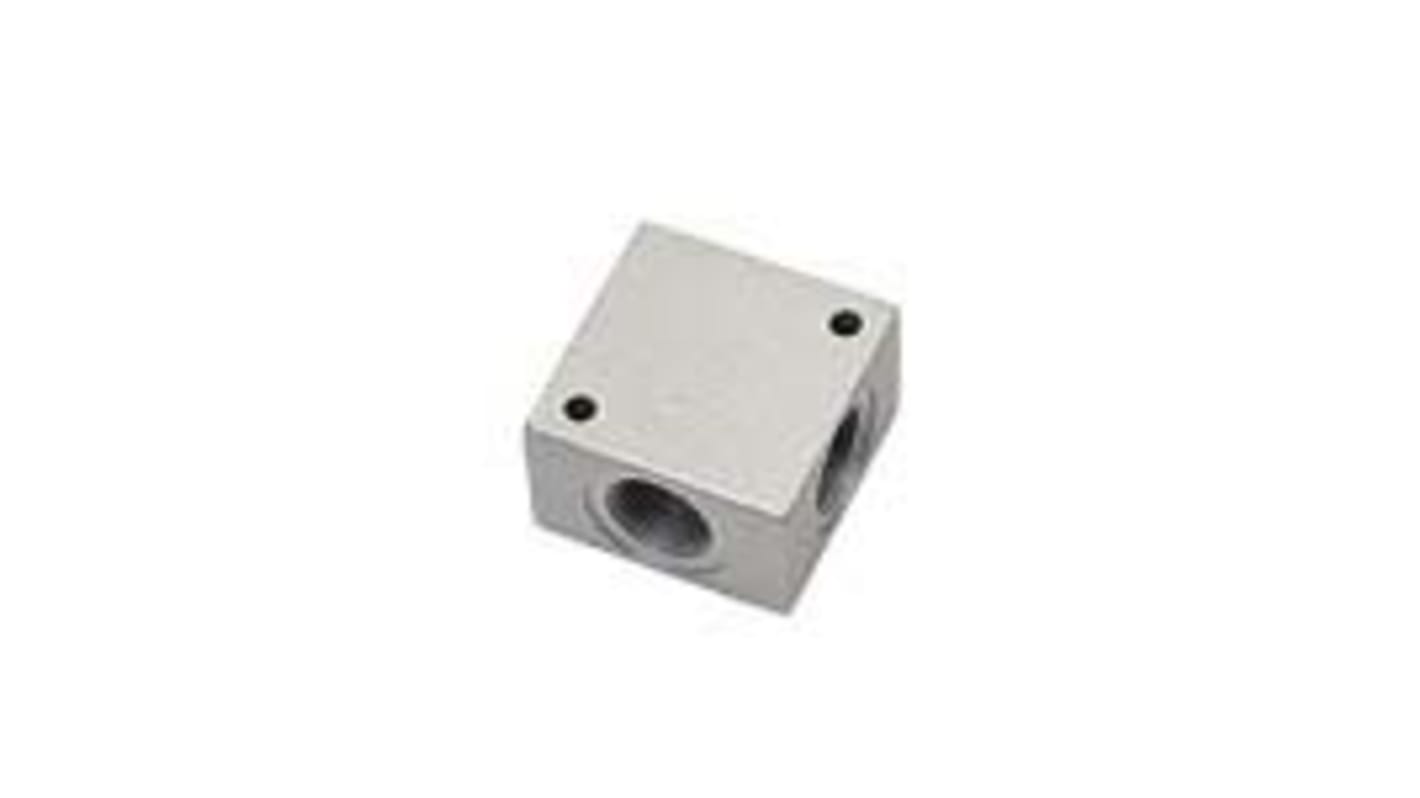

The Legris Manifold is a female cross manifold. This manifold is ideal for packaging, robotics, textile, pneumatics, automotive process and food processing application. This manifold is made from anodised aluminium. It is suitable for low to high pressure, depending on configuration and material.
Robust design
Large range and flexibility
Excellent chemical compatibility
Forged shapes for mechanical strength
Large range and flexibility
Excellent chemical compatibility
Forged shapes for mechanical strength
