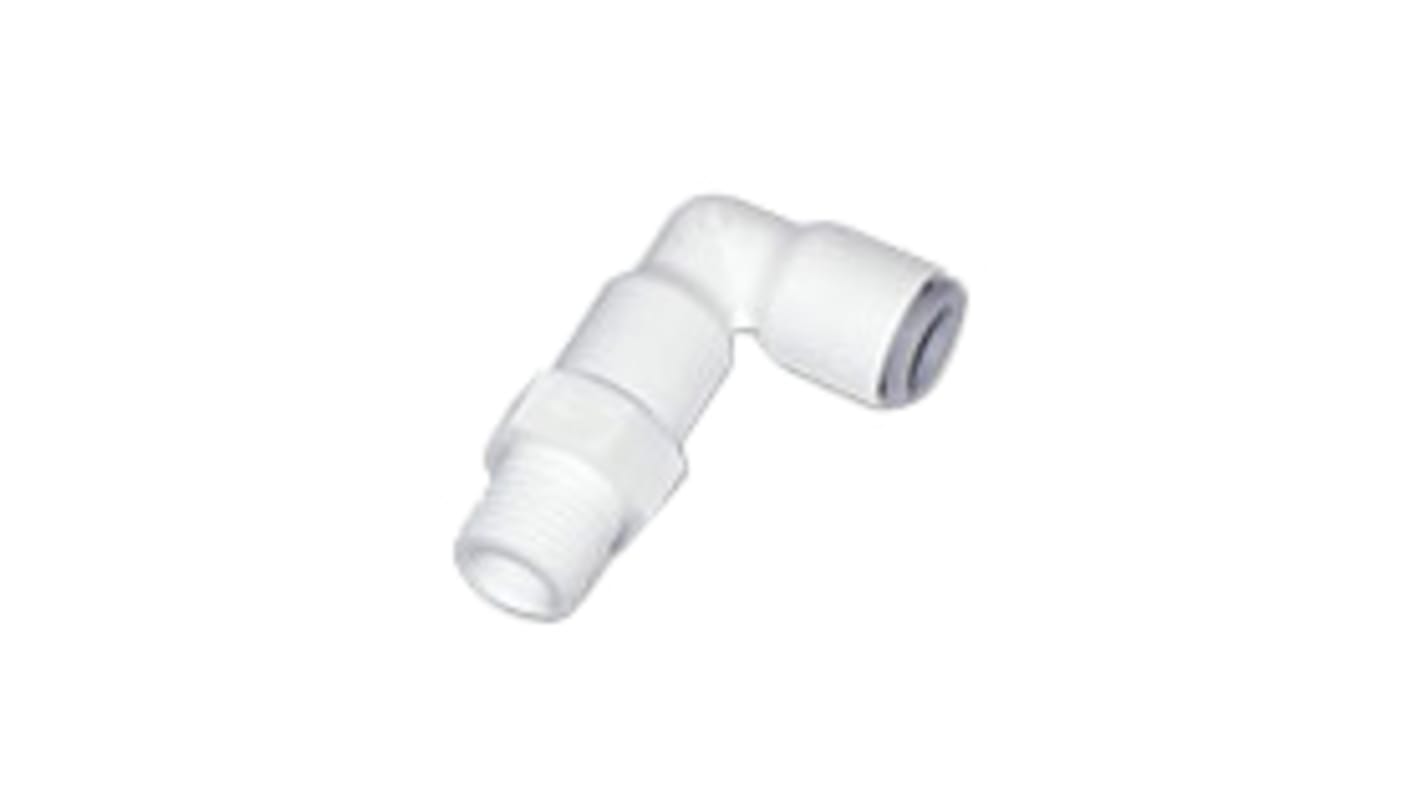

Legris LF6300 LIQUIfit Series Elbow Threaded Adaptor, R 1/2 Male to Push In 12 mm, Threaded-to-Tube Connection Style
- RS Stock No.:
- 136-9317
- Mfr. Part No.:
- 6509 12 21WP2
- Brand:
- Legris
Available to back order for despatch 11/06/2024, delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price 1 Bag of 4
£30.54
(exc. VAT)
£36.65
(inc. VAT)
| Bag(s) | Per Bag | Per unit* |
| 1 + | £30.54 | £7.635 |
| *price indicative | ||
- RS Stock No.:
- 136-9317
- Mfr. Part No.:
- 6509 12 21WP2
- Brand:
- Legris
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
LIQUIfit and LIQUIfit, 2 new “eco-designed” ranges of leak-free and compact push-in fittings, tubing and complementary products for liquid transfer applications. The LIQUIfit range is suitable for liquid transfer applications. This product range also benefits from a range extension of metal adaptors designed for liquid transfer applications. LIQUIfit provides zero retention push-in fittings for 100% cleanliness. The innovative sealing and gripping design drastically reduces bacteria growth, giving 100% cleanliness.
Connection of tubing at 90° with a male thread.
Tightened on the top of the fitting with a flat spanner.
Robust and aesthetic design for improved installation
Full flow
100% leak-tested in production: date coding to guarantee quality and traceability
NSF 51, NSF 61 C HOT, WRAS, FDA, ACS, in compliance with regulation (EC) 1935/2004, RoHS
Tightened on the top of the fitting with a flat spanner.
Robust and aesthetic design for improved installation
Full flow
100% leak-tested in production: date coding to guarantee quality and traceability
NSF 51, NSF 61 C HOT, WRAS, FDA, ACS, in compliance with regulation (EC) 1935/2004, RoHS
Specifications
Attribute | Value |
|---|---|
| Connector A | R 1/2 Male |
| Connector B | Push In 12 mm |
| Pneumatic Fitting Type | Elbow Threaded Adaptor |
| Connection Style | Threaded-to-Tube |
| Threaded Connection | R 1/2 Male |
| Manufacturer Series | LF6300 LIQUIfit |
| Thread Material | Bio-Based Polymer |
| Maximum Operating Temperature | +95°C |
| Minimum Operating Temperature | -10°C |
| Swivel Connection | No |
| Maximum Operating Pressure | 16 bar |
| Mounting Type | Inline |
| Body Material | Polymer |
| Standards Met | ACS, EC 1935/2004, FDA, NSF 51, NSF 61 C HOT, WRAS |
