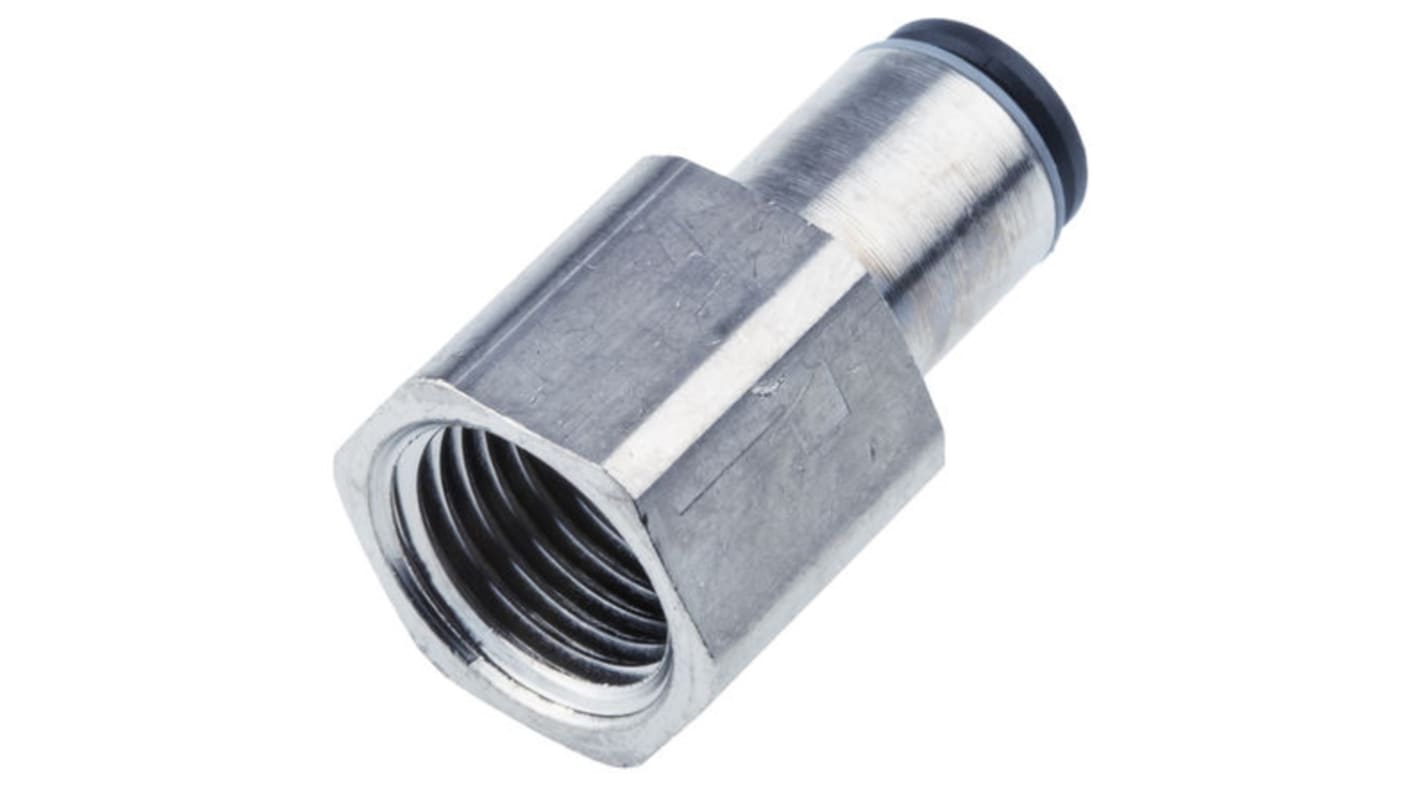

Legris LF3000 Series Straight Threaded Adaptor, G 1/2 Female to Push In 16 mm, Threaded-to-Tube Connection Style
- RS Stock No.:
- 124-0156
- Mfr. Part No.:
- 3114 16 21
- Brand:
- Legris
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 124-0156
- Mfr. Part No.:
- 3114 16 21
- Brand:
- Legris
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legris | |
| Connector A | G 1/2 Female | |
| Connector B | Push In 16 mm | |
| Pneumatic Fitting Type | Straight Threaded Adaptor | |
| Connection Style | Threaded-to-Tube | |
| Manufacturer Series | LF3000 | |
| Thread Material | Brass | |
| Finish | Nickel Plated | |
| Minimum Operating Temperature | -20°C | |
| Body Material | Plastic | |
| Maximum Operating Pressure | 20 bar | |
| Maximum Operating Temperature | +80°C | |
| Mounting Type | Inline | |
| Standards Met | EC/42/2006 | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand Legris | ||
Connector A G 1/2 Female | ||
Connector B Push In 16 mm | ||
Pneumatic Fitting Type Straight Threaded Adaptor | ||
Connection Style Threaded-to-Tube | ||
Manufacturer Series LF3000 | ||
Thread Material Brass | ||
Finish Nickel Plated | ||
Minimum Operating Temperature -20°C | ||
Body Material Plastic | ||
Maximum Operating Pressure 20 bar | ||
Maximum Operating Temperature +80°C | ||
Mounting Type Inline | ||
Standards Met EC/42/2006 | ||
Priced to Clear Yes | ||
- COO (Country of Origin):
- FR
Straight Adaptor - Female Parallel Thread
A high-quality polymer push in fitting suitable for compressed air applications. The LF3000 fittings can be used in systems with a working pressure from a vacuum of 0.9 bar to a positive pressure of 20 bar. These fittings are suitable for use with all plastic pneumatic plastic tubing and are 100% leak tested during manufacture.
These fittings are used to connect a pneumatic tube to a male thread and can be tightend using either a socket or spanner.
These fittings are used to connect a pneumatic tube to a male thread and can be tightend using either a socket or spanner.
Full bore design
Exceptionally low leak rate
Available with BSPP and BSPT threads
Suitable for Vacuum or pressure applications
ISO 14743 compliant
Date coded for traceability and reliability
Automatically seals in both dynamic and static situations
Exceptionally low leak rate
Available with BSPP and BSPT threads
Suitable for Vacuum or pressure applications
ISO 14743 compliant
Date coded for traceability and reliability
Automatically seals in both dynamic and static situations
