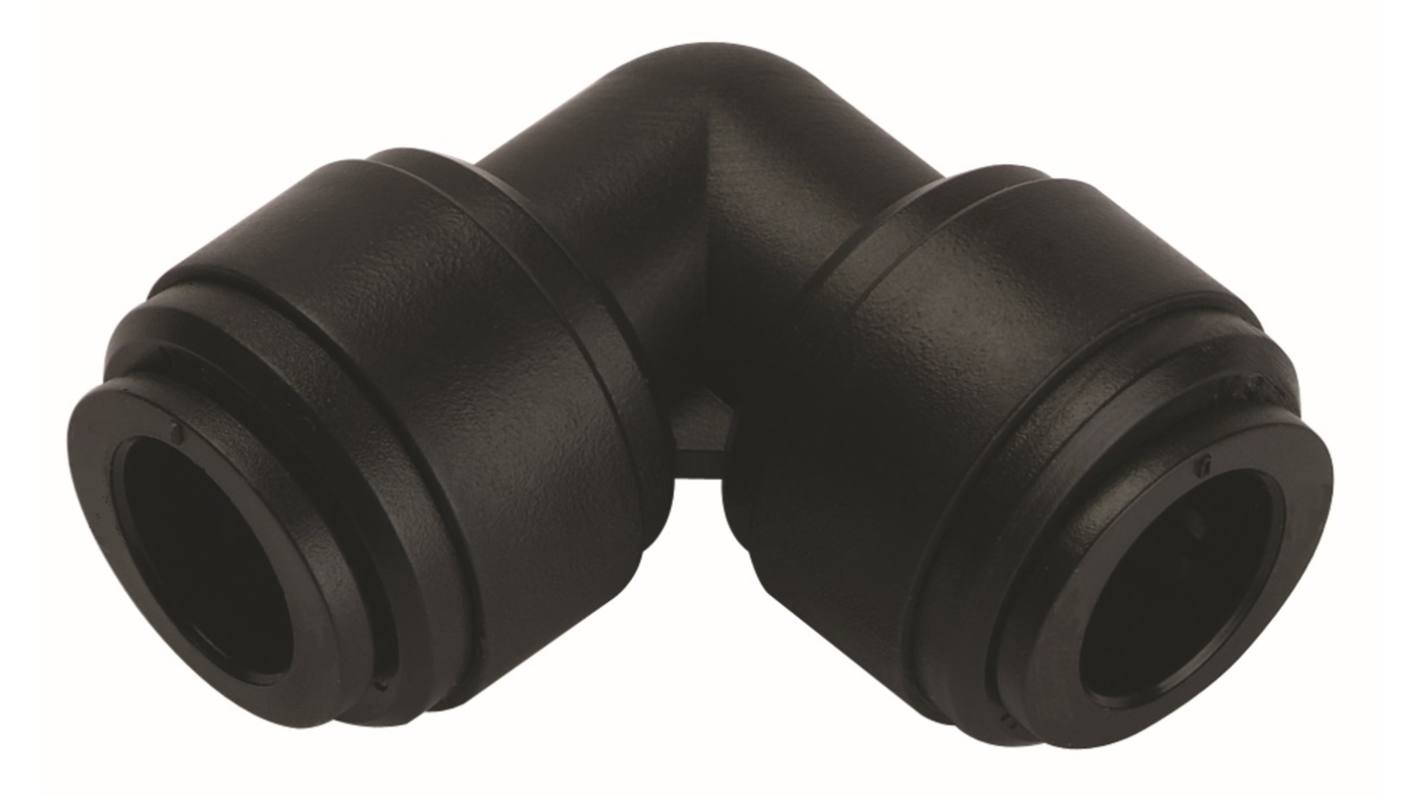

RS PRO Elbow Tube-toTube Adaptor, Push In 12 mm to Push In 8 mm, Push-in Connection Style
- RS Stock No.:
- 528-569
- Brand:
- RS PRO
Subtotal (1 bag of 5 units)*
£14.36
(exc. VAT)
£17.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £14.36 | £2.872 |
*price indicative
- RS Stock No.:
- 528-569
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Connector A | Push In 12 mm | |
| Connector B | Push In 8 mm | |
| Pneumatic Fitting Type | Elbow Tube-toTube Adaptor | |
| Connection Style | Push-in | |
| Number of Inlet Ports | 1 | |
| Number of Outlet Ports | 1 | |
| Maximum Operating Pressure | 10bar | |
| Mounting Type | Inline | |
| Minimum Operating Temperature | 1°C | |
| Angle | 90° | |
| Body Material | Acetal Copolymer | |
| Food Grade | Yes | |
| Maximum Operating Temperature | 65°C | |
| Standards Met | ACS, DM174/2004, EC1935/2004 , ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Connector A Push In 12 mm | ||
Connector B Push In 8 mm | ||
Pneumatic Fitting Type Elbow Tube-toTube Adaptor | ||
Connection Style Push-in | ||
Number of Inlet Ports 1 | ||
Number of Outlet Ports 1 | ||
Maximum Operating Pressure 10bar | ||
Mounting Type Inline | ||
Minimum Operating Temperature 1°C | ||
Angle 90° | ||
Body Material Acetal Copolymer | ||
Food Grade Yes | ||
Maximum Operating Temperature 65°C | ||
Standards Met ACS, DM174/2004, EC1935/2004 , ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS | ||
- COO (Country of Origin):
- KR
RS PRO Pneumatic Fitting, Reducing Elbow, 12 mm to 8 mm
This RS PRO pneumatic fitting is a reducing elbow designed to connect tubes with different diameters, specifically from 12 mm to 8 mm. It is ideal for applications requiring a secure and reliable connection in pneumatic systems, offering ease of installation and versatility in various industrial settings.
Features and Benefits
Fluidfit design: Suitable for water, food, and air contact, and compatible with selected gases, vacuum, and liquids, providing broad application versatility
Quick connection and release: Allows for fast and efficient tube installation and removal, saving time and reducing costs
Non-toxic material: Constructed from NSF and ACS approved materials, ensuring safety and compliance with food-grade standards
High pressure tolerance: Supports a maximum operating pressure of 10 bar, suitable for demanding pneumatic applications
Temperature range: Operates effectively between 1 °C and 65 °C, accommodating various environmental conditions
Quick connection and release: Allows for fast and efficient tube installation and removal, saving time and reducing costs
Non-toxic material: Constructed from NSF and ACS approved materials, ensuring safety and compliance with food-grade standards
High pressure tolerance: Supports a maximum operating pressure of 10 bar, suitable for demanding pneumatic applications
Temperature range: Operates effectively between 1 °C and 65 °C, accommodating various environmental conditions
Applications
Water systems
Beverage dispensing
Vacuum systems
Compressed air systems
Gas and liquid transfer compatible with construction material
Beverage dispensing
Vacuum systems
Compressed air systems
Gas and liquid transfer compatible with construction material
Additional Information
Complies with multiple international standards including ACS, DM174/2004, EC1935/2004, ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270, KTW, and WRAS, ensuring global applicability and compliance.
