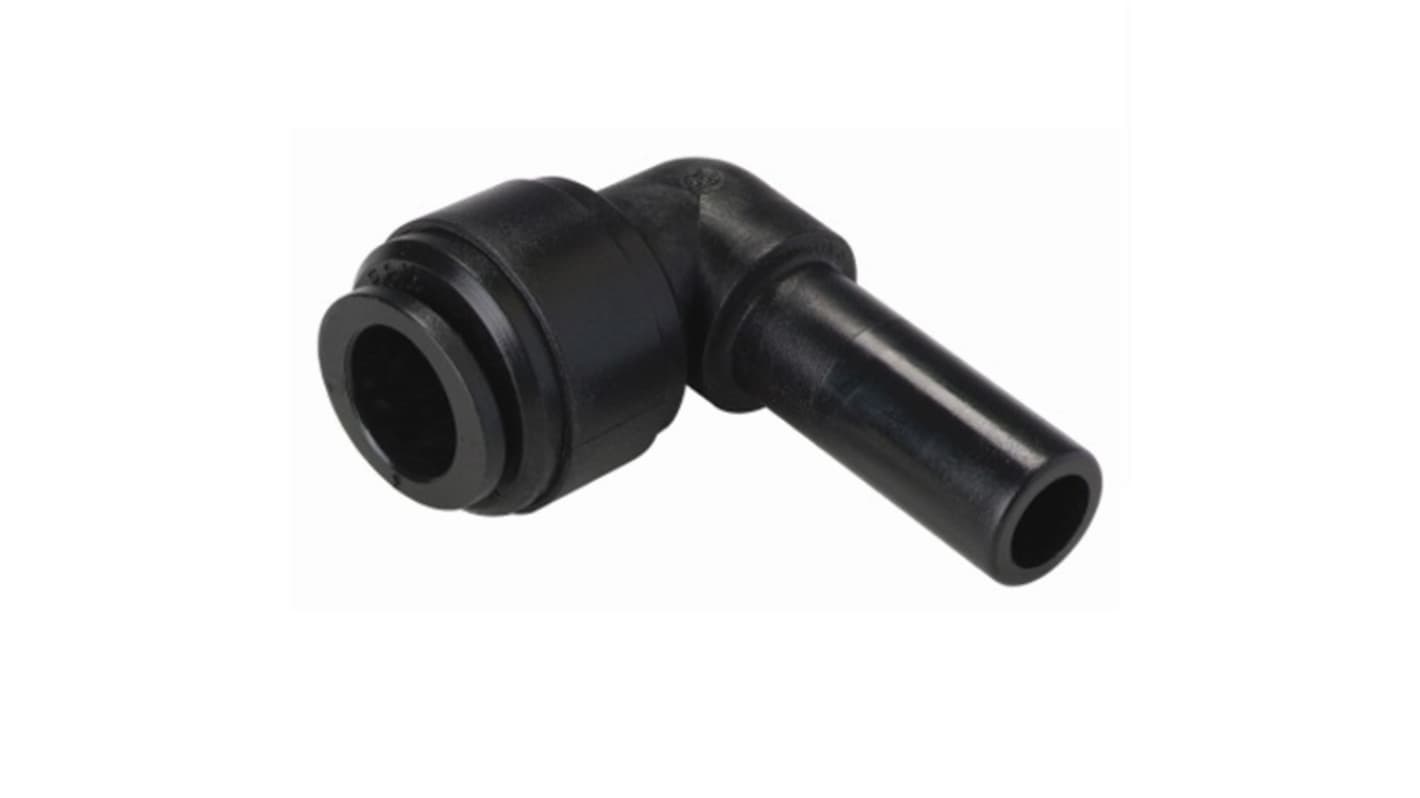

RS PRO Plug-in Elbow, Push In 10 mm to 6 mm, Push-in Connection Style
- RS Stock No.:
- 528-480
- Brand:
- RS PRO
Subtotal (1 bag of 5 units)*
£11.34
(exc. VAT)
£13.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £11.34 | £2.268 |
*price indicative
- RS Stock No.:
- 528-480
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Connector A | Push In 10 mm | |
| Connector B | 6 mm | |
| Pneumatic Fitting Type | Plug-in Elbow | |
| Connection Style | Push-in | |
| Number of Inlet Ports | 1 | |
| Number of Outlet Ports | 1 | |
| Angle | 90° | |
| Mounting Type | Inline | |
| Maximum Operating Pressure | 10bar | |
| Body Material | Acetal Copolymer | |
| Minimum Operating Temperature | 1°C | |
| Food Grade | Yes | |
| Maximum Operating Temperature | 65°C | |
| Standards Met | ACS, DM174/2004, EC1935/2004 , ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Connector A Push In 10 mm | ||
Connector B 6 mm | ||
Pneumatic Fitting Type Plug-in Elbow | ||
Connection Style Push-in | ||
Number of Inlet Ports 1 | ||
Number of Outlet Ports 1 | ||
Angle 90° | ||
Mounting Type Inline | ||
Maximum Operating Pressure 10bar | ||
Body Material Acetal Copolymer | ||
Minimum Operating Temperature 1°C | ||
Food Grade Yes | ||
Maximum Operating Temperature 65°C | ||
Standards Met ACS, DM174/2004, EC1935/2004 , ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS | ||
- COO (Country of Origin):
- KR
RS PRO Reducing Stem Elbow, 10 mm Stem OD - 6 mm Tube OD
This RS PRO pneumatic fitting is a reducing stem elbow designed to connect a 10 mm stem to a 6 mm tube. It is ideal for applications requiring a secure and efficient connection in pneumatic systems. The main benefit of this fitting is its ability to facilitate quick and easy connections, saving both time and expenses in industrial settings.
Features and Benefits
Fluidfit design: Suitable for water, food, and air contact, as well as selected gases, vacuum, and liquids, providing versatility in various applications
Quick connection and release: Allows for easy tube connection and disconnection, enhancing efficiency and reducing downtime
Non-toxic material: Made from NSF and ACS approved materials, ensuring safety in food and beverage applications
90° angle: Facilitates connections in tight spaces, improving system layout flexibility
High pressure tolerance: Operates up to 10 bar, suitable for demanding pneumatic systems
Temperature range: Functions effectively from 1 °C to 65 °C, accommodating various environmental conditions
Quick connection and release: Allows for easy tube connection and disconnection, enhancing efficiency and reducing downtime
Non-toxic material: Made from NSF and ACS approved materials, ensuring safety in food and beverage applications
90° angle: Facilitates connections in tight spaces, improving system layout flexibility
High pressure tolerance: Operates up to 10 bar, suitable for demanding pneumatic systems
Temperature range: Functions effectively from 1 °C to 65 °C, accommodating various environmental conditions
Applications
Water
Beverage
Vacuum
Compressed air
Gases and liquids compatible with construction material
Beverage
Vacuum
Compressed air
Gases and liquids compatible with construction material
Additional Information
Made from acetal copolymer, this fitting meets multiple international standards including ACS, DM174/2004, EC1935/2004, ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270, KTW, and WRAS, ensuring compliance across various markets.
