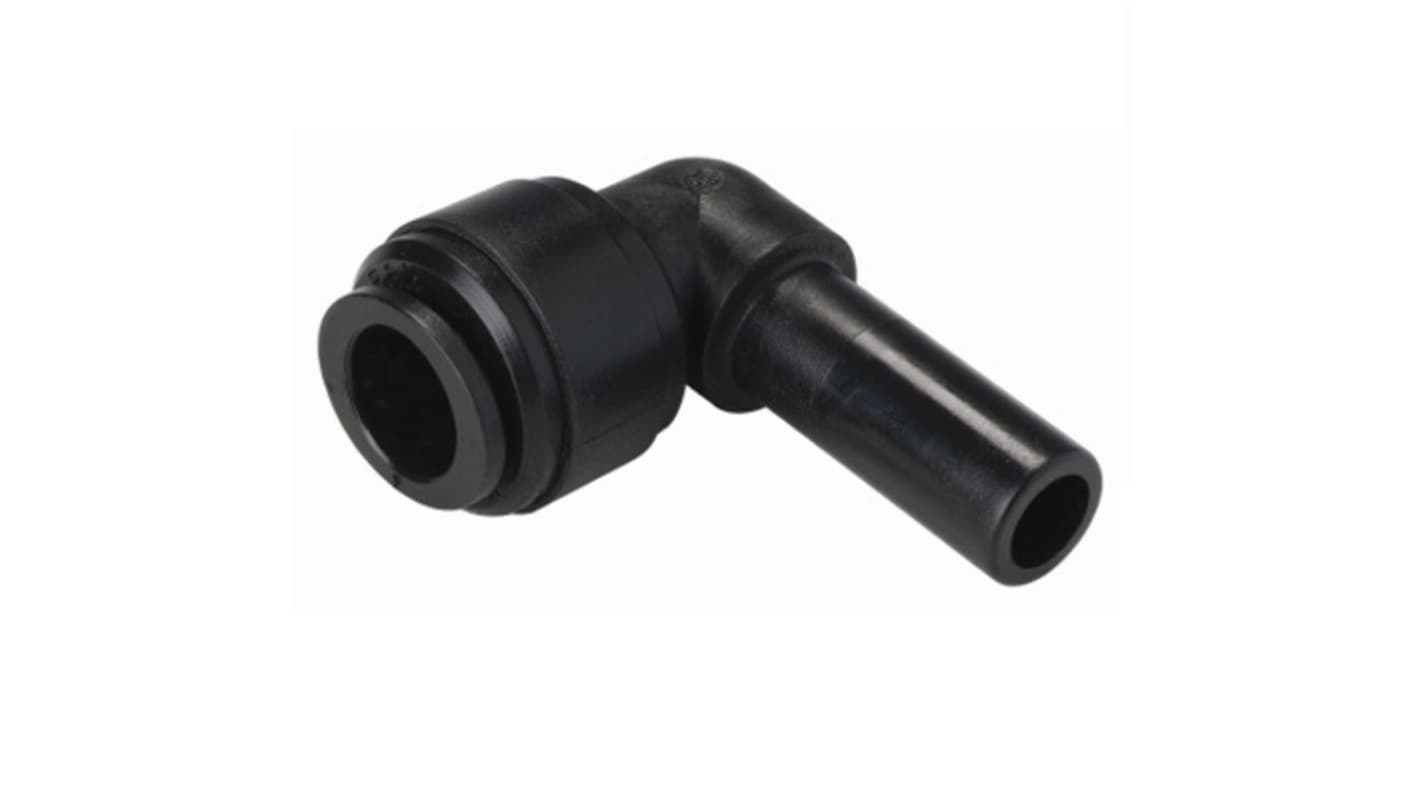

RS PRO Plug-in Elbow, Push In 10 mm to 8 mm, Push-in Connection Style
- RS Stock No.:
- 528-478
- Brand:
- RS PRO
Subtotal (1 bag of 5 units)*
£11.34
(exc. VAT)
£13.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £11.34 | £2.268 |
*price indicative
- RS Stock No.:
- 528-478
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Connector A | Push In 10 mm | |
| Connector B | 8 mm | |
| Pneumatic Fitting Type | Plug-in Elbow | |
| Connection Style | Push-in | |
| Number of Inlet Ports | 1 | |
| Number of Outlet Ports | 1 | |
| Mounting Type | Inline | |
| Maximum Operating Pressure | 10bar | |
| Angle | 90° | |
| Maximum Operating Temperature | 65°C | |
| Food Grade | Yes | |
| Body Material | Acetal Copolymer | |
| Minimum Operating Temperature | 1°C | |
| Standards Met | ACS, DM174/2004, EC1935/2004 , ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Connector A Push In 10 mm | ||
Connector B 8 mm | ||
Pneumatic Fitting Type Plug-in Elbow | ||
Connection Style Push-in | ||
Number of Inlet Ports 1 | ||
Number of Outlet Ports 1 | ||
Mounting Type Inline | ||
Maximum Operating Pressure 10bar | ||
Angle 90° | ||
Maximum Operating Temperature 65°C | ||
Food Grade Yes | ||
Body Material Acetal Copolymer | ||
Minimum Operating Temperature 1°C | ||
Standards Met ACS, DM174/2004, EC1935/2004 , ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS | ||
- COO (Country of Origin):
- KR
RS PRO Reducing Stem Elbow, 10 mm Stem OD - 8 mm Tube OD
This RS PRO pneumatic fitting is a reducing stem elbow designed for efficient fluid and air transfer. It features a 10 mm stem OD and an 8 mm tube OD, making it ideal for applications requiring a secure and reliable connection. The main benefit of this fitting is its versatility in handling various media, including water, food, and air.
Features and Benefits
Fluidfit design: Suitable for water, food, and air contact, as well as selected gases, vacuum, and liquids, providing versatility in use
Quick connection and release: Easy actions allow the tube to be connected and released quickly, saving time and expenses
Non-toxic material: Made from NSF and ACS approved materials, ensuring safety and compliance with food-grade standards
High pressure tolerance: Operates up to a maximum pressure of 10 bar, suitable for demanding applications
Temperature range: Functions effectively between 1 °C and 65 °C, accommodating various environmental conditions
Push-in connection style: Simplifies installation and maintenance, reducing downtime
Food grade compliance: Meets multiple international standards, ensuring suitability for food and beverage applications
Quick connection and release: Easy actions allow the tube to be connected and released quickly, saving time and expenses
Non-toxic material: Made from NSF and ACS approved materials, ensuring safety and compliance with food-grade standards
High pressure tolerance: Operates up to a maximum pressure of 10 bar, suitable for demanding applications
Temperature range: Functions effectively between 1 °C and 65 °C, accommodating various environmental conditions
Push-in connection style: Simplifies installation and maintenance, reducing downtime
Food grade compliance: Meets multiple international standards, ensuring suitability for food and beverage applications
Applications
Water
Beverage
Vacuum
Compressed air
Gases and liquids suitable with construction material
Beverage
Vacuum
Compressed air
Gases and liquids suitable with construction material
Additional Information
Complies with ACS, DM174/2004, EC1935/2004, ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS standards, ensuring broad regulatory acceptance across various markets.
