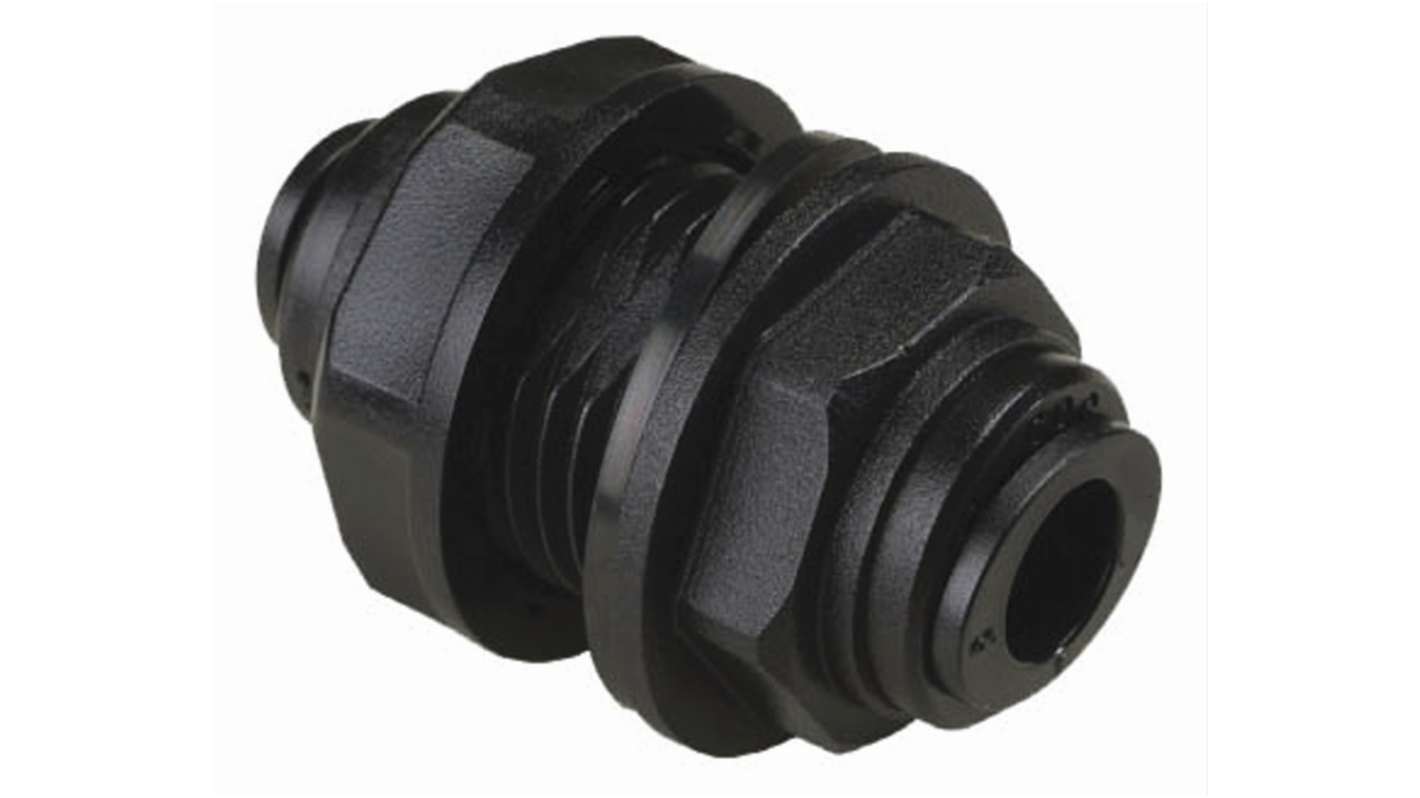

RS PRO Bulkhead Tube-to-Tube Adaptor, Push In 4 mm to Push In 4 mm, Push-in Connection Style
- RS Stock No.:
- 528-471
- Brand:
- RS PRO
Subtotal (1 bag of 5 units)*
£15.31
(exc. VAT)
£18.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £15.31 | £3.062 |
*price indicative
- RS Stock No.:
- 528-471
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Connector A | Push In 4 mm | |
| Connector B | Push In 4 mm | |
| Pneumatic Fitting Type | Bulkhead Tube-to-Tube Adaptor | |
| Connection Style | Push-in | |
| Number of Inlet Ports | 1 | |
| Number of Outlet Ports | 1 | |
| Angle | Straight | |
| Maximum Operating Pressure | 10bar | |
| Mounting Type | Panel | |
| Maximum Operating Temperature | 65°C | |
| Food Grade | Yes | |
| Minimum Operating Temperature | 1°C | |
| Body Material | Acetal Copolymer | |
| Standards Met | ACS, DM174/2004, EC1935/2004 , ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Connector A Push In 4 mm | ||
Connector B Push In 4 mm | ||
Pneumatic Fitting Type Bulkhead Tube-to-Tube Adaptor | ||
Connection Style Push-in | ||
Number of Inlet Ports 1 | ||
Number of Outlet Ports 1 | ||
Angle Straight | ||
Maximum Operating Pressure 10bar | ||
Mounting Type Panel | ||
Maximum Operating Temperature 65°C | ||
Food Grade Yes | ||
Minimum Operating Temperature 1°C | ||
Body Material Acetal Copolymer | ||
Standards Met ACS, DM174/2004, EC1935/2004 , ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270 and KTW, WRAS | ||
- COO (Country of Origin):
- KR
RS PRO Pneumatic Fitting, 4 mm Tube, Acetal Copolymer
This RS PRO pneumatic fitting is designed for efficient and reliable connections in pneumatic systems. Ideal for applications involving water, food, and air contact, this fitting ensures quick and secure tube connections, enhancing operational efficiency and reducing downtime.
Features and Benefits
Fluidfit design: Suitable for water, food, and air contact, ensuring versatility across applications
Quick connection and release: Saves time and reduces expenses with easy tube handling
Non-toxic material: Made from NSF and ACS approved materials, ensuring safety and compliance
High pressure tolerance: Operates effectively up to 10 bar, suitable for demanding environments
Temperature range: Functions between 1 °C and 65 °C, providing flexibility in various conditions
Food grade: Compliant with multiple international standards for food safety
Quick connection and release: Saves time and reduces expenses with easy tube handling
Non-toxic material: Made from NSF and ACS approved materials, ensuring safety and compliance
High pressure tolerance: Operates effectively up to 10 bar, suitable for demanding environments
Temperature range: Functions between 1 °C and 65 °C, providing flexibility in various conditions
Food grade: Compliant with multiple international standards for food safety
Applications
Water systems
Beverage industry
Vacuum applications
Compressed air systems
Gas and liquid transfer
Beverage industry
Vacuum applications
Compressed air systems
Gas and liquid transfer
Additional Information
Meets key standards such as ACS, DM174/2004, EC1935/2004, ISO9001, ISO14001, NSF 51, NSF 61, Reach and RoHS 3, W270, KTW, and WRAS, ensuring compliance across various markets.
