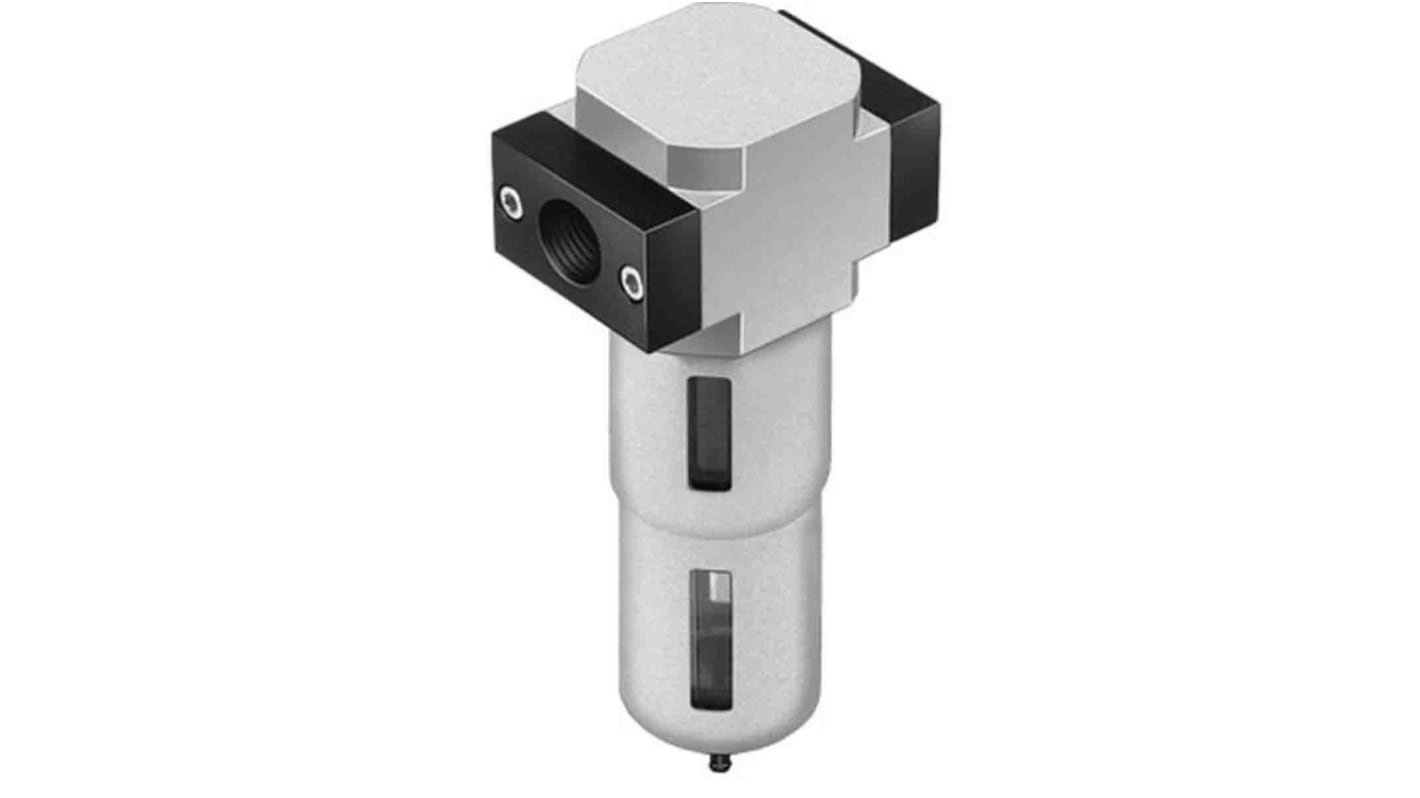

Festo D series 40μm G 1 0bar to 16 bar Pneumatic Filter 5300L/min max with Manual drain
- RS Stock No.:
- 203-0597
- Mfr. Part No.:
- LF-1-D-MAXI
- Brand:
- Festo
Subtotal (1 unit)*
£174.44
(exc. VAT)
£209.33
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £174.44 |
*price indicative
- RS Stock No.:
- 203-0597
- Mfr. Part No.:
- LF-1-D-MAXI
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Filtration Size | 40µm | |
| Port Connection | G 1 | |
| Drain Type | Manual | |
| Manufacturer Series | D | |
| Maximum Flow Rate | 5300L/min | |
| Minimum Operating Pressure | 0bar | |
| Maximum Operating Pressure | 16 bar | |
| Maximum Operating Temperature | +60°C | |
| Port Connection Thread Standard | G | |
| Minimum Operating Temperature | -10°C | |
| Port Connection Thread Size | 1 in | |
| For Use With | D Series | |
| Bowl Material | Polycarbonate | |
Select all | ||
|---|---|---|
Brand Festo | ||
Filtration Size 40µm | ||
Port Connection G 1 | ||
Drain Type Manual | ||
Manufacturer Series D | ||
Maximum Flow Rate 5300L/min | ||
Minimum Operating Pressure 0bar | ||
Maximum Operating Pressure 16 bar | ||
Maximum Operating Temperature +60°C | ||
Port Connection Thread Standard G | ||
Minimum Operating Temperature -10°C | ||
Port Connection Thread Size 1 in | ||
For Use With D Series | ||
Bowl Material Polycarbonate | ||
- COO (Country of Origin):
- HU
Festo Pneumatic Filter, 5300L/min Flow Rate, 40μm Filtration Size - LF-1-D-MAXI
For clean airflow in your pneumatic systems, choose this filter from Festo. It removes water, oil and other contaminants from the compressed air supply, so the output is pure and you can rely on optimum performance from your devices. The PE strainer on this device has a filtration grade of 40μm so it can catch even very small particles of debris. A durable die-cast zinc housing provides resistance to impact and corrosion, making this a suitable option for rugged conditions. The bowl that collects condensate water has a manual control knob for quick and simple draining.
• Light weight of 1.4kg to minimise strain on your pneumatic equipment
• Broad operating temperature range between -10°C and +60°C for use in challenging conditions
• Maximum flow rate of 5300l/min for quick air transmission
• Condensate bowl volume of 80cm³ provides enough storage to support uninterrupted operation
• Broad operating temperature range between -10°C and +60°C for use in challenging conditions
• Maximum flow rate of 5300l/min for quick air transmission
• Condensate bowl volume of 80cm³ provides enough storage to support uninterrupted operation
Applications
• Robotics and automation industries
• High-pressure and low-pressure air compressors
• Air conditioners
• High-pressure and low-pressure air compressors
• Air conditioners
What's the maximum operating pressure of this filter?
This filter has a maximum operating pressure of 16 bar, making it suitable for heavy-duty industrial applications.
