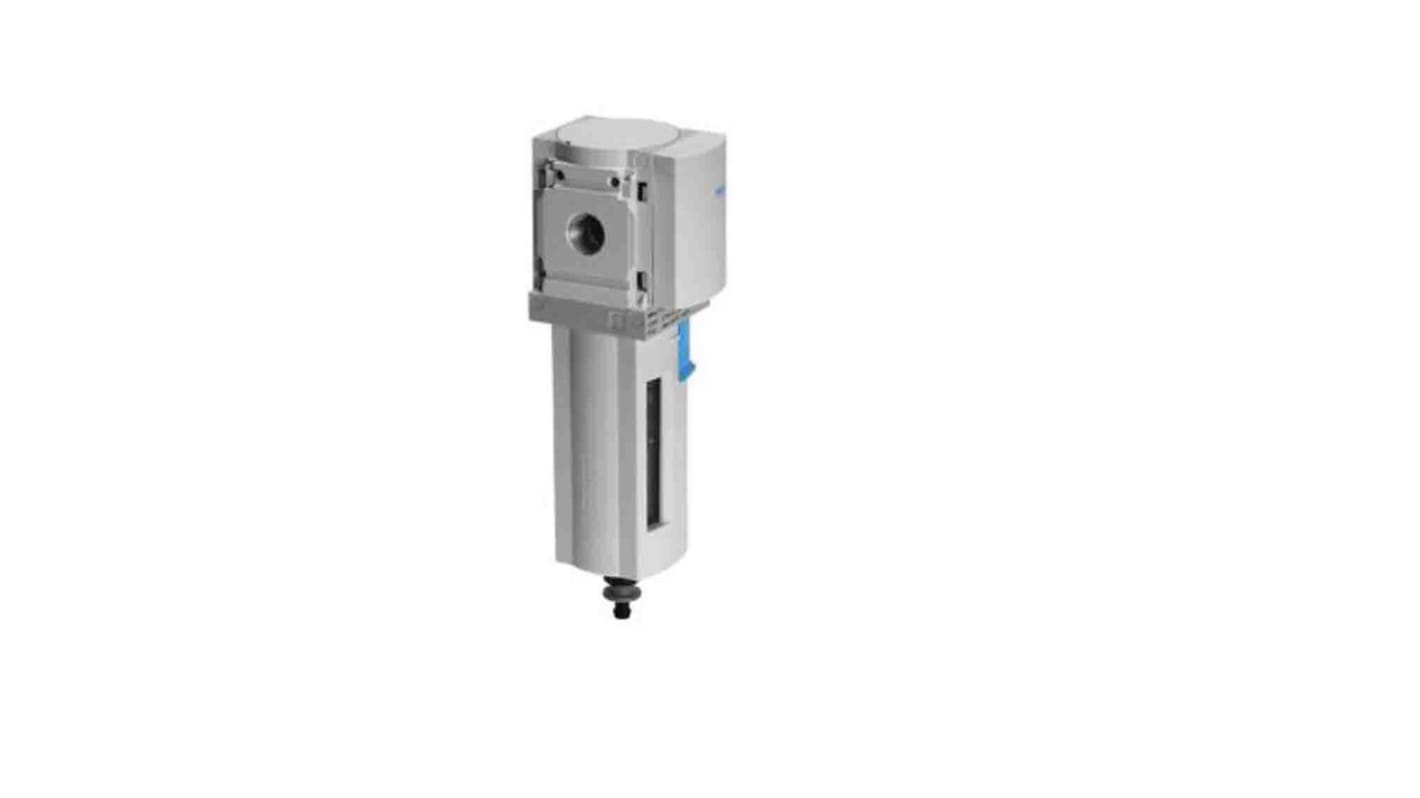

Festo MS series 40μm G 1/2 2bar to 12 bar Filter 4100L/min max with Automatic drain
- RS Stock No.:
- 202-3361
- Mfr. Part No.:
- MS6-LF-1/2-EUV
- Brand:
- Festo
Subtotal (1 unit)*
£119.55
(exc. VAT)
£143.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £119.55 |
*price indicative
- RS Stock No.:
- 202-3361
- Mfr. Part No.:
- MS6-LF-1/2-EUV
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Filtration Size | 40µm | |
Port Connection | G 1/2 | |
Drain Type | Automatic | |
Manufacturer Series | MS | |
Maximum Flow Rate | 4100L/min | |
Typical Flow Rate | 4100L/min | |
Minimum Operating Pressure | 2bar | |
Maximum Operating Pressure | 12 bar | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -10°C | |
Bowl Material | Aluminium | |
Select all | ||
---|---|---|
Brand Festo | ||
Filtration Size 40µm | ||
Port Connection G 1/2 | ||
Drain Type Automatic | ||
Manufacturer Series MS | ||
Maximum Flow Rate 4100L/min | ||
Typical Flow Rate 4100L/min | ||
Minimum Operating Pressure 2bar | ||
Maximum Operating Pressure 12 bar | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -10°C | ||
Bowl Material Aluminium | ||
- COO (Country of Origin):
- HU
Festo Series MS Filter, 40 μm Filtration size, 4100 L/min Maximum Flow Rate - MS6-LF-1/2-EUV, Numeric Part Number: 529621
This filter is designed for high-performance filtration in industrial applications. It boasts a filtration size of 40μm, which effectively separates contaminants from compressed air, enhancing system reliability. The in-line installation comes with G 1/2 ports, making it an ideal choice for various pneumatic systems. Its durable aluminium bowl adds to its functionality, combining superior performance with robust construction.
Features & Benefits
• Fully automatic condensate drain improves operational efficiency
• Integrated sintered filter with centrifugal separator enhances filtration accuracy
• Operating range from 2 bar to 12 bar allows versatile applications
• Designed for vertical mounting to optimise space utilisation
• High condensate separation degree of over 75% ensures system cleanliness
• Integrated sintered filter with centrifugal separator enhances filtration accuracy
• Operating range from 2 bar to 12 bar allows versatile applications
• Designed for vertical mounting to optimise space utilisation
• High condensate separation degree of over 75% ensures system cleanliness
Applications
• Utilised in installations where compressed air purity is critical
• Suitable for machinery requiring high flow rates and condensate management
• Commonly applied in electronics and mechanical production environments
• Suitable for machinery requiring high flow rates and condensate management
• Commonly applied in electronics and mechanical production environments
What are the temperature limits for effective operation?
This product operates efficiently between -10°C and +60°C, ensuring reliability in varying environmental conditions.
How does the design contribute to maintenance?
The automatic drain feature minimises manual intervention, allowing for continuous operation without frequent checks or service interruptions.
Can it be used with food-grade applications?
Yes, it is suitable for use with food, complying with necessary regulations and standards, making it a versatile option in critical environments.
What materials contribute to its durability?
The housing is made from die-cast aluminium, while the bowl consists of a wrought aluminium alloy, ensuring robust performance under pressure.
How effective is the filtration process compared to standard filters?
With a filtration size of 40μm and greater than 75% batch condensate removal effectiveness, this filter significantly enhances air purity compared to standard models.
