SMC 3 Pin M8 Direct PNP Solid State Switch Pneumatic Switch D-M9 Series LED Indicator
- RS Stock No.:
- 234-4545
- Mfr. Part No.:
- D-M9PSBPC
- Brand:
- SMC
Subtotal (1 unit)*
£39.25
(exc. VAT)
£47.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £39.25 |
*price indicative
- RS Stock No.:
- 234-4545
- Mfr. Part No.:
- D-M9PSBPC
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Series | D-M9 | |
| Product Type | Pneumatic Switch | |
| Operation Type | PNP | |
| Electrical Connection Type | 3 Pin M8 | |
| Sub Type | Solid State Switch | |
| Mount Type | Direct | |
| For Use With | CQ2, MGP, CY3R, MGT, MGF | |
| LED Indicator | Yes | |
| IP Rating | IP67 | |
| Switching Current | 10mA | |
| Applicable Load | IC Circuit/Relay/PLC | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Width | 15.5mm | |
| Standards/Approvals | IEC 529, RoHS | |
| Depth | 46mm | |
| Height | 18mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Series D-M9 | ||
Product Type Pneumatic Switch | ||
Operation Type PNP | ||
Electrical Connection Type 3 Pin M8 | ||
Sub Type Solid State Switch | ||
Mount Type Direct | ||
For Use With CQ2, MGP, CY3R, MGT, MGF | ||
LED Indicator Yes | ||
IP Rating IP67 | ||
Switching Current 10mA | ||
Applicable Load IC Circuit/Relay/PLC | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Width 15.5mm | ||
Standards/Approvals IEC 529, RoHS | ||
Depth 46mm | ||
Height 18mm | ||
- COO (Country of Origin):
- JP

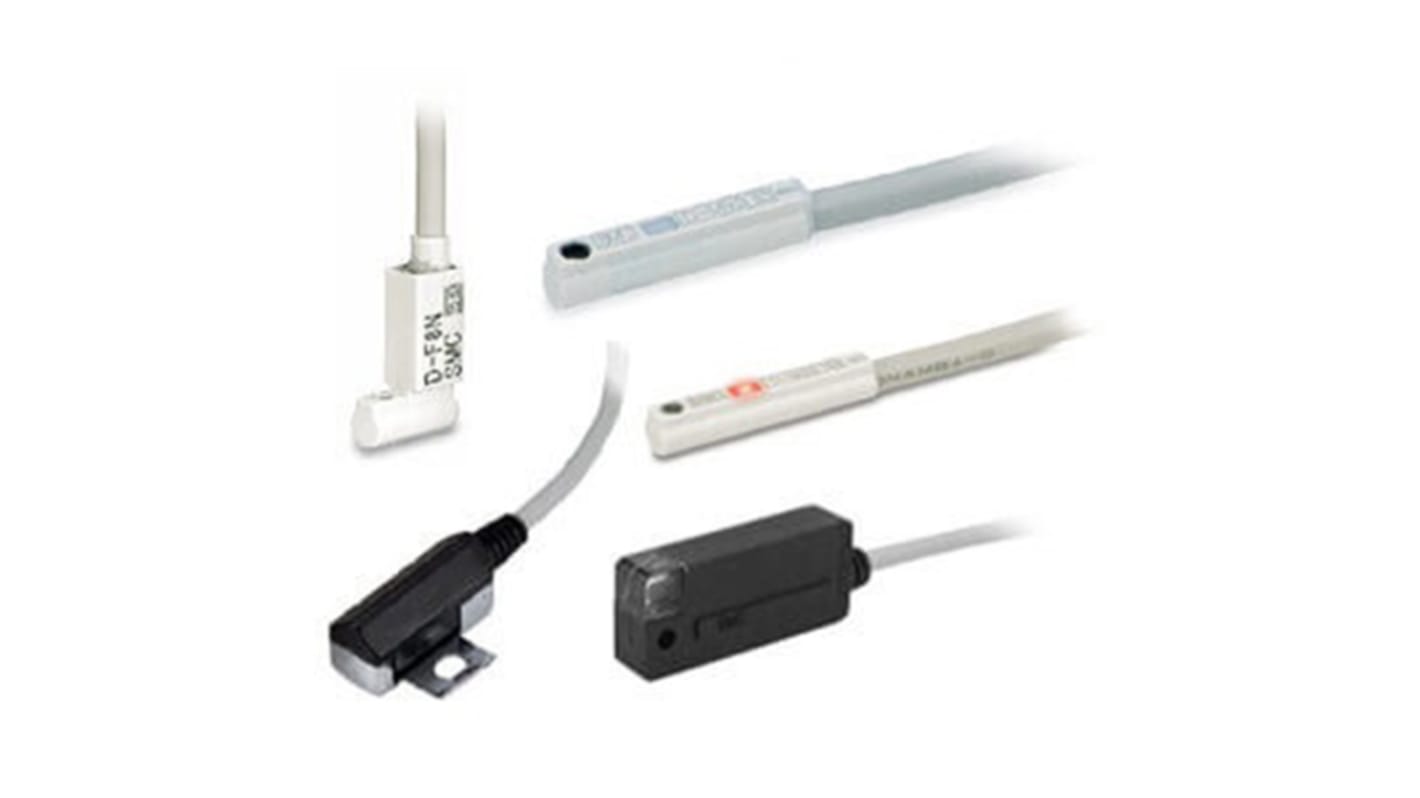

The SMC pre-wired connector auto switches are available in 3 or 4 pin 8mm style, or 4 pin 12mm style. 3 standard wire lengths are also available: 0.5m (S), 1.0m (M) and 3.0m (L). With the use of the pre-wired connector switch, the need for minimum order quantities for "special" auto switches with connectors is eliminated, and wiring with the use of standard connectors is simplified.
Eliminates harnessing work by cable with connector specifications
Adopts global standardized connector (IEC947-5-2)
IP67 construction
