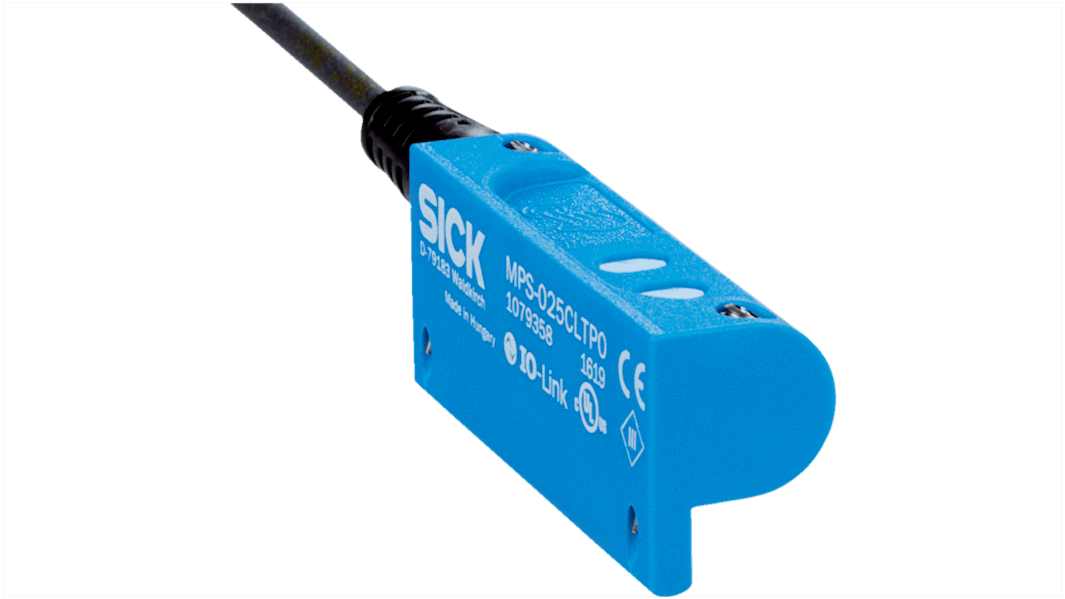

    Sick Magnetic Cylinder Sensor - Position Sensor Pneumatic Position Detector, IP67, 12 → 30V dc, MPS-C, with LED

    Sick
    RS Stock No.:
    212-8604
    Mfr. Part No.:
    MPS-100CLTU0
    Brand:
    Sick
    View all Pneumatic Cylinder Sensors
    Available to back order for despatch 01/02/2024
    Add to Basket
    Units

    Added

    Price Each

    £297.99

    (exc. VAT)

    £357.59

    (inc. VAT)

    UnitsPer unit
    1 +£297.99
    RS Stock No.:
    212-8604
    Mfr. Part No.:
    MPS-100CLTU0
    Brand:
    Sick

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    HU

    Product Details

    Overview


    At a glance


    Position sensor for direct mounting in C-slots on pneumatic cylinders and grippers
    Sensor variants with measuring ranges of 25 mm to 200 mm
    Analog outputs (for current or voltage), switching output, and IO-Link
    Mounting on other cylinder types (e.g., round body cylinders) is possible with adapters

    Your Benefit


    Rapid mounting and exchange of sensors with drop-in
    Straightforward installation as no additional mechanical components or position elements are required
    Can be integrated into the machine at any time, as the sensor is attached to the cylinder externally
    Easy adjustment of sensor settings and parameters during operation using a teach pad or IO-Link
    More flexibility compared to conventional cylinder sensors, as it is possible to define multiple switching points in the smallest of spaces
    Excellent reliability thanks to the rugged sensor design and non-contact measurement principle
    Advanced diagnostic options thanks to data transmission via IO-Link

    MPS-C position sensors continuously detect the piston position of pneumatic actuators using a direct, non-contact method. They can be mounted in C-slots without the need for additional accessories. The sensor settings can be adjusted during installation and during operation later on, using a teach field or IO-Link. The sensors continuously supply data via analog outputs or IO-Link, enabling flexible machine concepts and making it possible to solve tasks in areas such as quality monitoring and process control in conjunction with pneumatic cylinders and drives. This continuous transfer of position data upgrades the functionality of the pneumatic cylinders by making them more intelligent – and, as a result, more versatile.

    Applications


    Positioning of grippers when installing a gearshift assembly
    Monitoring of the part position when ultrasonic welding plastics
    Height measurement of a component using the MPS-C
    Double layer detection for printed circuit board
    Flexible positioning of cylinders
    Measuring the film tension
    Detection of gripper position and material wear in roof tile manufacturing

    Note


    Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.


    Specifications

    Attribute
    Value
    TypeMagnetic Cylinder Sensor - Position Sensor
    Supply Voltage12 → 30V dc
    Manufacturer SeriesMPS-C
    LED IndicatorYes
    Compatible WithC-Slot
    IP RatingIP67
    Minimum Operating Temperature-20°C
    Maximum Operating Temperature+70°C
    Outlet PortWire
