Festo Flow Sensor Flow Controller, IP65, 0 → 10V, NO/NC Operation, SFAW, 8036876
- RS Stock No.:
- 175-2242
- Mfr. Part No.:
- SFAW-100T-TG34-E-PNLK-PNVBA-M12
- Brand:
- Festo
Subtotal (1 unit)*
£371.22
(exc. VAT)
£445.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £371.22 |
*price indicative
- RS Stock No.:
- 175-2242
- Mfr. Part No.:
- SFAW-100T-TG34-E-PNLK-PNVBA-M12
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Type | Flow Sensor | |
Supply Voltage | 0 → 10V | |
Manufacturer Series | SFAW | |
Operation | NO/NC | |
IP Rating | IP65 | |
Minimum Operating Pressure | 0bar | |
Minimum Operating Temperature | 0°C | |
Maximum Operating Temperature | +50°C | |
Maximum Operating Pressure | 12 bar | |
Hazardous Area Certification | ATEX | |
Model Number p | 8036876 | |
Outlet Port | G 3/4 | |
Outlet Port - Connection Type | Threaded | |
Select all | ||
---|---|---|
Brand Festo | ||
Type Flow Sensor | ||
Supply Voltage 0 → 10V | ||
Manufacturer Series SFAW | ||
Operation NO/NC | ||
IP Rating IP65 | ||
Minimum Operating Pressure 0bar | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +50°C | ||
Maximum Operating Pressure 12 bar | ||
Hazardous Area Certification ATEX | ||
Model Number p 8036876 | ||
Outlet Port G 3/4 | ||
Outlet Port - Connection Type Threaded | ||
RoHS Status: Exempt
- COO (Country of Origin):
- BG

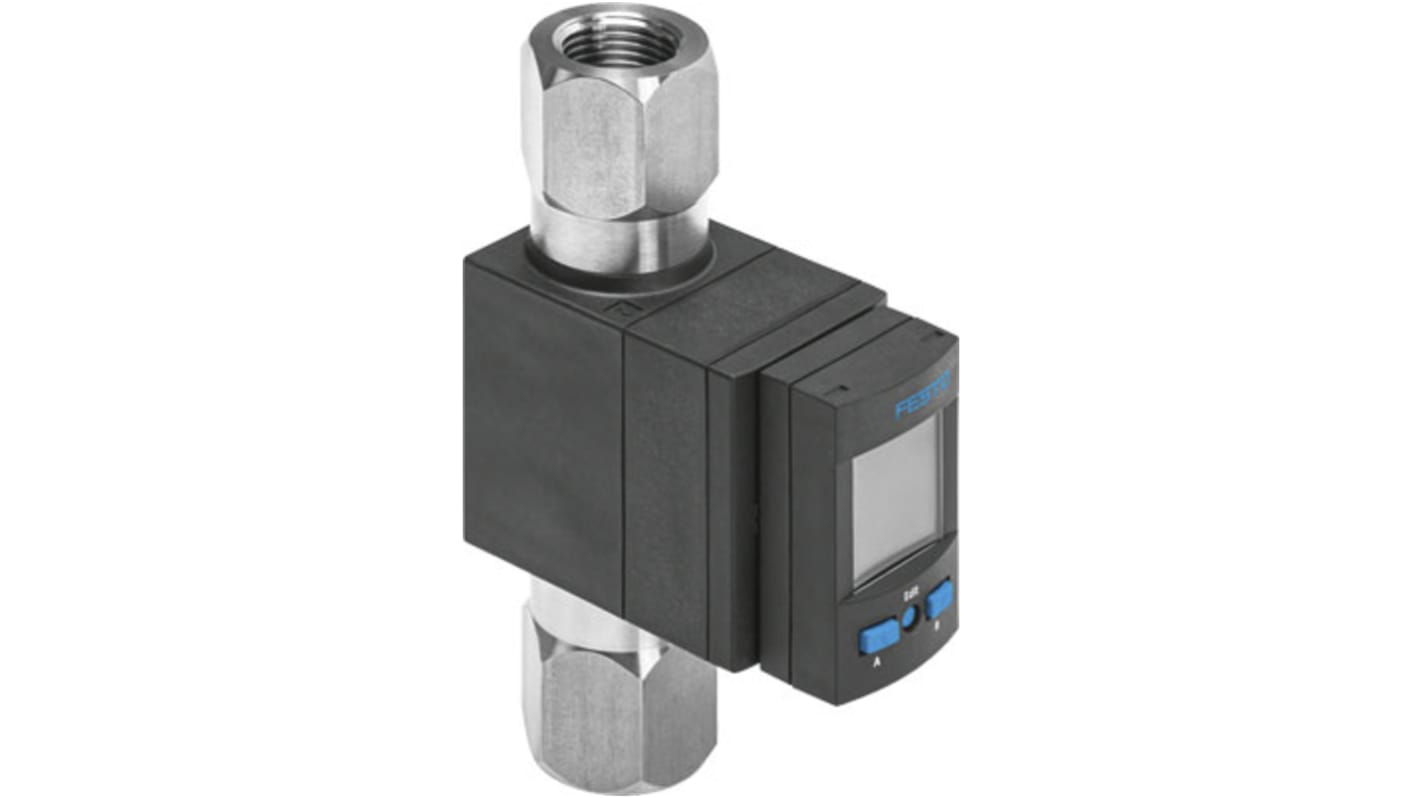

Festo Flow Controller, 0 to 12 Bar, IO-Link - SFAW-100T-TG34-E-PNLK-PNVBA-M12
Accurately measure and monitor the flow, volume and temperature of liquids in pipes or terminals with this flow controller from Festo. It records flow velocity according to the vortex principle, which limits leakages and ensures a wide flow turndown range. The low maintenance component has no moving parts, so doesn't call for regular maintenance or repairs. You can include a sensor to check the temperature of the flow medium for optimum power consumption.
• Switching outputs can be configured according to the specifications of applications to monitor threshold value or range
• Versatile component suitable for use with standard fluid media, water and neutral fluids
• Switching element has normally open and normally closed contacts to set different outputs
• Versatile component suitable for use with standard fluid media, water and neutral fluids
• Switching element has normally open and normally closed contacts to set different outputs
Applications
• Cylinder speed control
• Medical ventilators and intravenous infusions
• Water cooling systems
• Filling volume monitoring
• Medical ventilators and intravenous infusions
• Water cooling systems
• Filling volume monitoring
What fluid temperatures can this flow controller handle?
This Festo flow controller can handle fluid mediums at temperatures between 0°C and +90°C.
Why is it important to measure and control fluid flow in systems?
Fluid flow measurement and control are important for many applications, from automotive engines to drug delivery systems in medical equipment. Too much or too little fluid can damage equipment or endanger lives.
