Norgren Rear Clevis QA/8080/23, For Use With RA/8000, To Fit 80mm Bore Size
- RS Stock No.:
- 510-4365
- Mfr. Part No.:
- QA/8080/23
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£37.49
(exc. VAT)
£44.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £37.49 |
| 5 - 9 | £35.94 |
| 10 - 24 | £35.16 |
| 25 + | £34.37 |
*price indicative
- RS Stock No.:
- 510-4365
- Mfr. Part No.:
- QA/8080/23
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| To Fit Bore Size | 80mm | |
| For Use With | RA/8000 | |
| Product Type | Rear Clevis | |
| Manufacturer Series | QA | |
Select all | ||
|---|---|---|
Brand Norgren | ||
To Fit Bore Size 80mm | ||
For Use With RA/8000 | ||
Product Type Rear Clevis | ||
Manufacturer Series QA | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

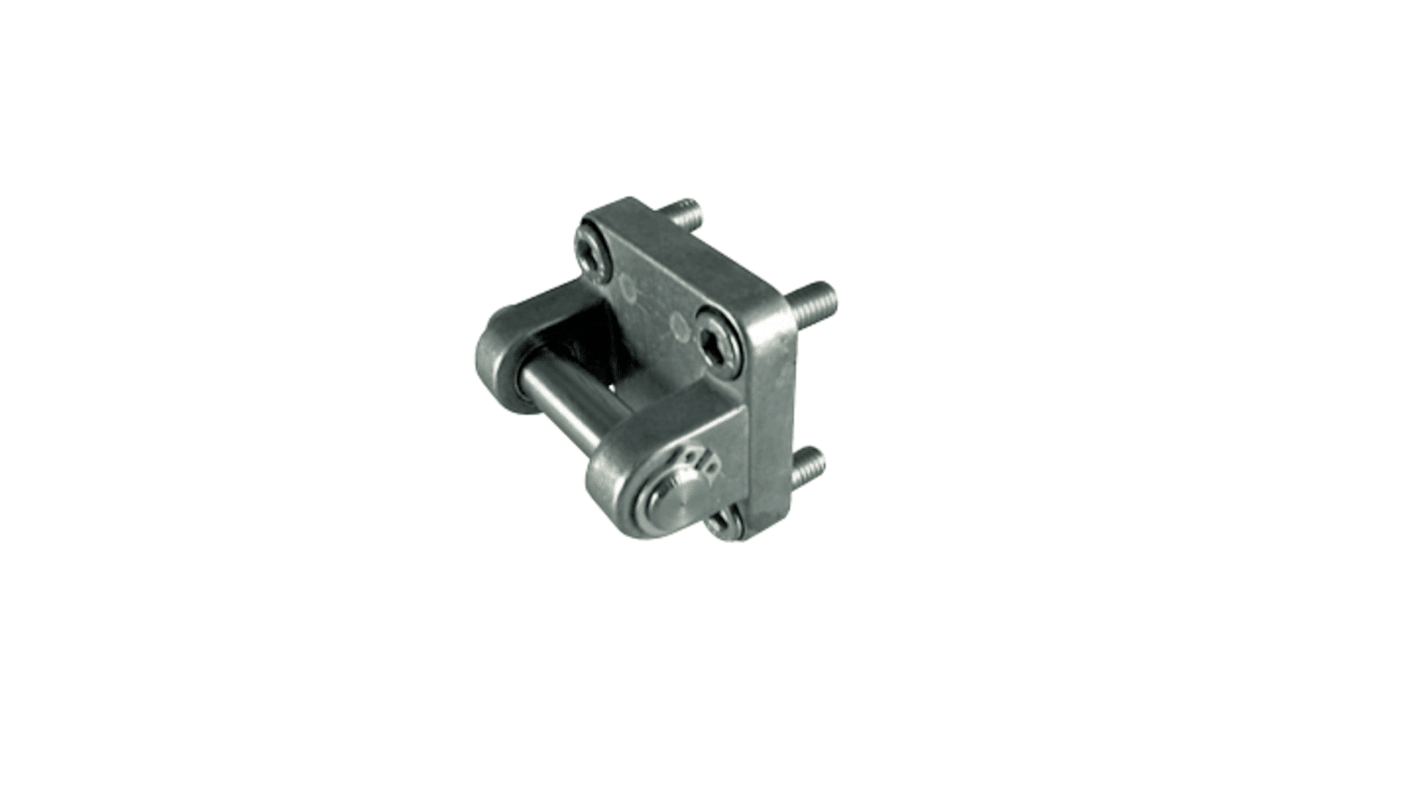

IMI Norgren Rear Clevis, 80mm Bore, 540g Weight - QA Series - QA/8080/23
For a sturdy mounting point for your pivoting pneumatic cylinder, turn to this rear clevis from IMI Norgren. You can attach it to a surface either horizontally or vertically, so it's a flexible option for achieving the setup you want. Mount the unit using the four screws and holes provided, then remove the pin from the clevis. Place the rod end in the centre of the clevis and secure it by replacing the pin. This allows the cylinder to pivot while holding the end firmly in position.
Features & Benefits
• Provides a flexible mounting option for IMI Norgren's PRA/182000 pneumatic profile cylinders
• Weighs just 540g, so it won't add much excess to your system
• Compact measurements of 72 (H) x 99 (L) x 90mm (W) help to avoid unnecessary bulk
• Weighs just 540g, so it won't add much excess to your system
• Compact measurements of 72 (H) x 99 (L) x 90mm (W) help to avoid unnecessary bulk
Applications
• Industrial automation
• Manufacturing industry
• Materials handling
• Manufacturing industry
• Materials handling
How do I know what bore size I need?
Measure the inside diameter of your cylinder using a bore gauge. This clevis is designed for an 80mm bore, which is a standard size and widely available.
