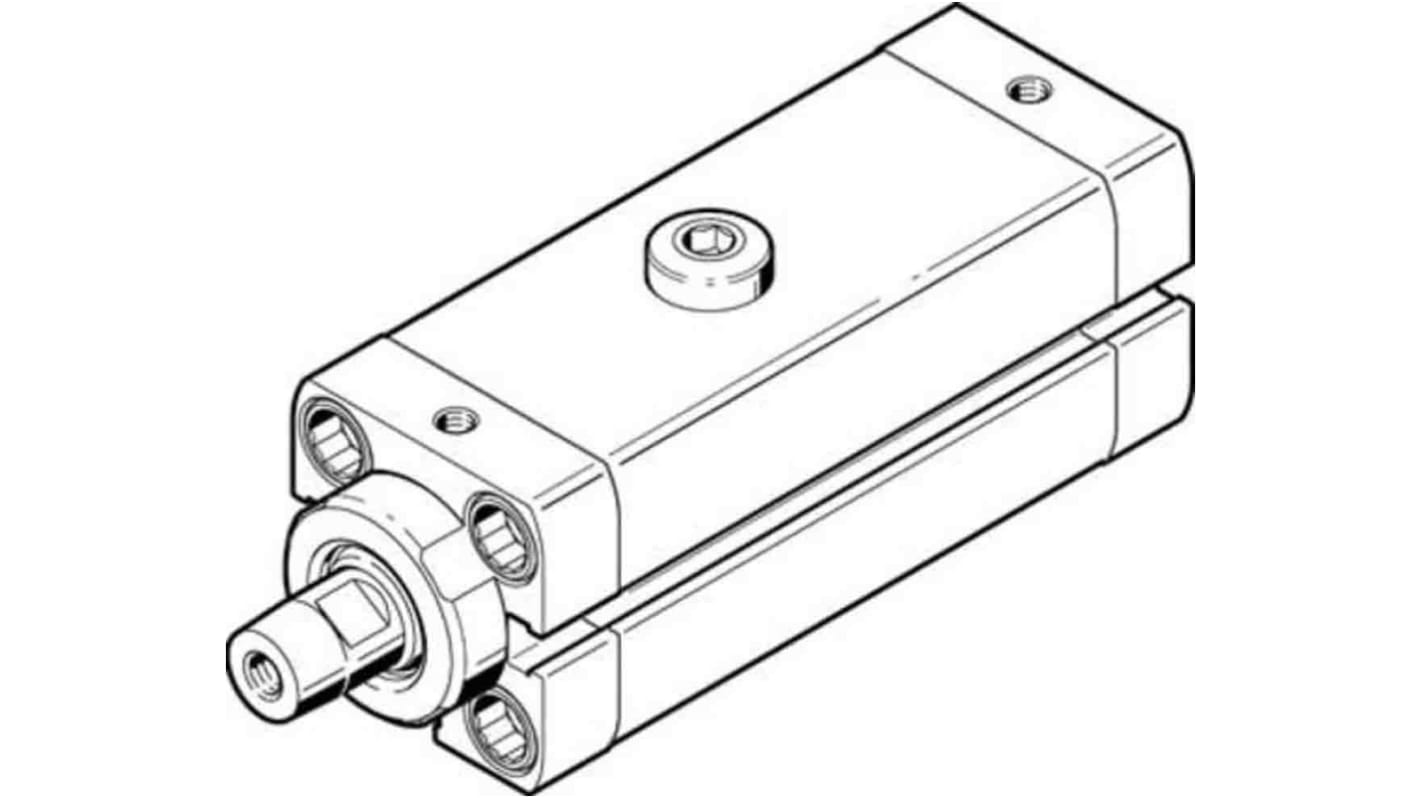

Festo Clamping Actuator CLR-25-10-L-P-A-K11-R8
- RS Stock No.:
- 202-9477
- Mfr. Part No.:
- CLR-25-10-L-P-A-K11-R8
- Brand:
- Festo
Subtotal (1 unit)*
£400.63
(exc. VAT)
£480.76
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £400.63 |
*price indicative
- RS Stock No.:
- 202-9477
- Mfr. Part No.:
- CLR-25-10-L-P-A-K11-R8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Clamp Stroke | 10mm | |
| Bore | 25mm | |
| Maximum Operating Pressure | 10 bar | |
| Manufacturer Series | CLR-25-10-L-P-A-K11-R8 | |
| Rotary Angle | 90° | |
| Absolute Maximum Pressure | 10bar | |
Select all | ||
|---|---|---|
Brand Festo | ||
Clamp Stroke 10mm | ||
Bore 25mm | ||
Maximum Operating Pressure 10 bar | ||
Manufacturer Series CLR-25-10-L-P-A-K11-R8 | ||
Rotary Angle 90° | ||
Absolute Maximum Pressure 10bar | ||
- COO (Country of Origin):
- CN
The Festo linear/swivel clamp CLR-25-10-L-P-A-K11-R8 clamping system with linear and swivel motion 90 degrees to the left. It has standard hole pattern according to ISO 21287 With dust and weld spatter protection.
Total stroke 23 mm
Piston diameter 25 mm
Piston rod thread M6
Swivel angle 90 deg +/- 3 deg
Clamping stroke 10 mm
Piston diameter 25 mm
Piston rod thread M6
Swivel angle 90 deg +/- 3 deg
Clamping stroke 10 mm
