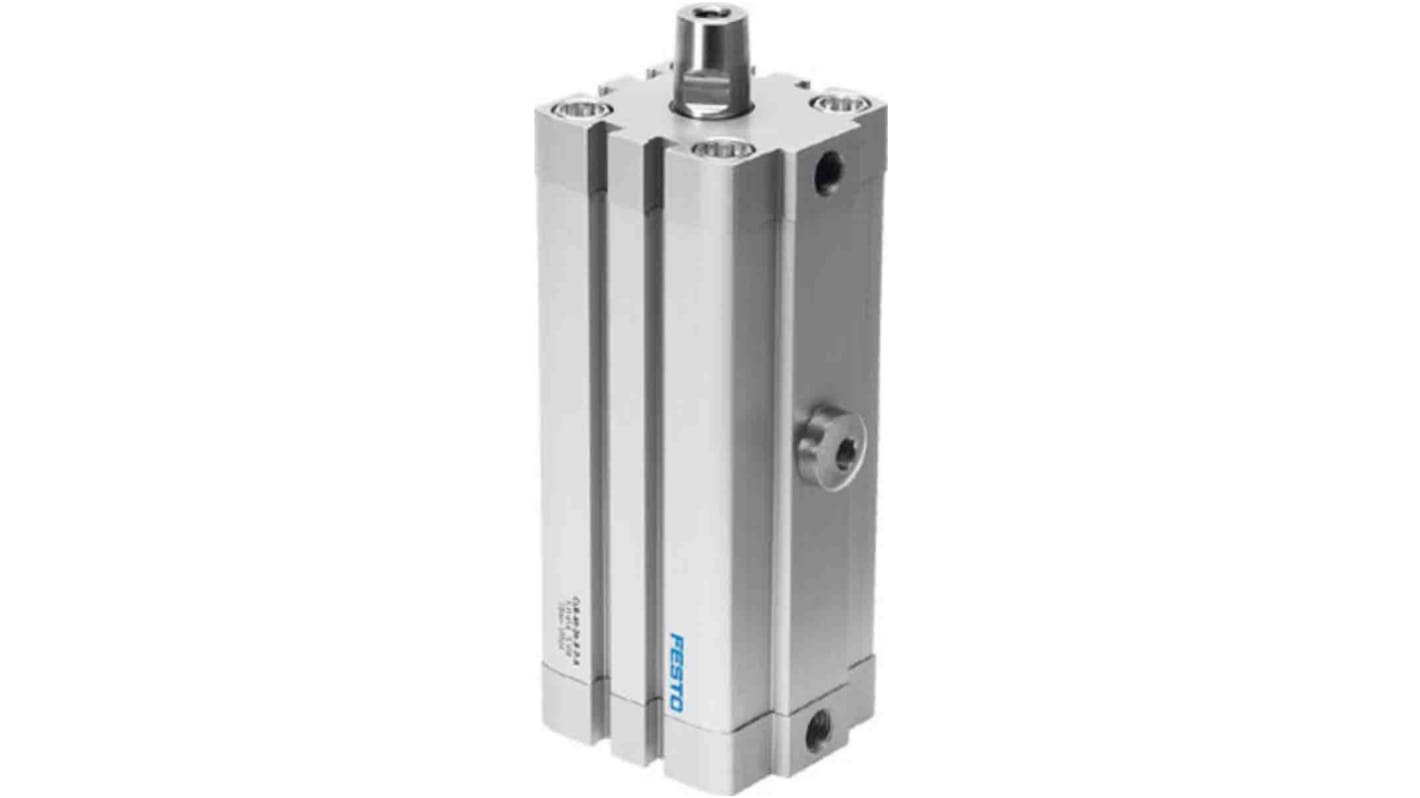

Festo Clamping Actuator CLR-32-20-R-P-A-B
- RS Stock No.:
- 202-9446
- Mfr. Part No.:
- CLR-32-20-R-P-A-B
- Brand:
- Festo
1 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£398.41
(exc. VAT)
£478.09
(inc. VAT)
| Units | Per unit |
| 1 + | £398.41 |
- RS Stock No.:
- 202-9446
- Mfr. Part No.:
- CLR-32-20-R-P-A-B
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Festo linear/swivel clamp CLR-32-20-R-P-A-B Clamping system with linear movement. It has standardised hole pattern to ISO 21287.
Total stroke 38 mm
Piston diameter 32 mm
Piston rod thread M8
Swivel angle 90 deg +/- 2 deg
Clamping stroke 20 mm
Piston diameter 32 mm
Piston rod thread M8
Swivel angle 90 deg +/- 2 deg
Clamping stroke 20 mm
Specifications
Attribute | Value |
|---|---|
| Clamp Stroke | 20mm |
| Bore | 32mm |
| Maximum Operating Pressure | 10 bar |
| Rotary Angle | 90° |
| Manufacturer Series | CLR-32-20-R-P-A-B |
| Absolute Maximum Pressure | 10bar |
