RS PRO Ball Valve type Pneumatic Actuated Valve 3/4in, 10 bar
- RS Stock No.:
- 910-8513
- Brand:
- RS PRO
Subtotal (1 unit)*
£232.99
(exc. VAT)
£279.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £232.99 |
*price indicative
- RS Stock No.:
- 910-8513
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Thread Size | 3/4in | |
Valve Type | Ball Valve | |
Return Type | Spring | |
Maximum Working Pressure | 10 bar | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Thread Size 3/4in | ||
Valve Type Ball Valve | ||
Return Type Spring | ||
Maximum Working Pressure 10 bar | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- IT

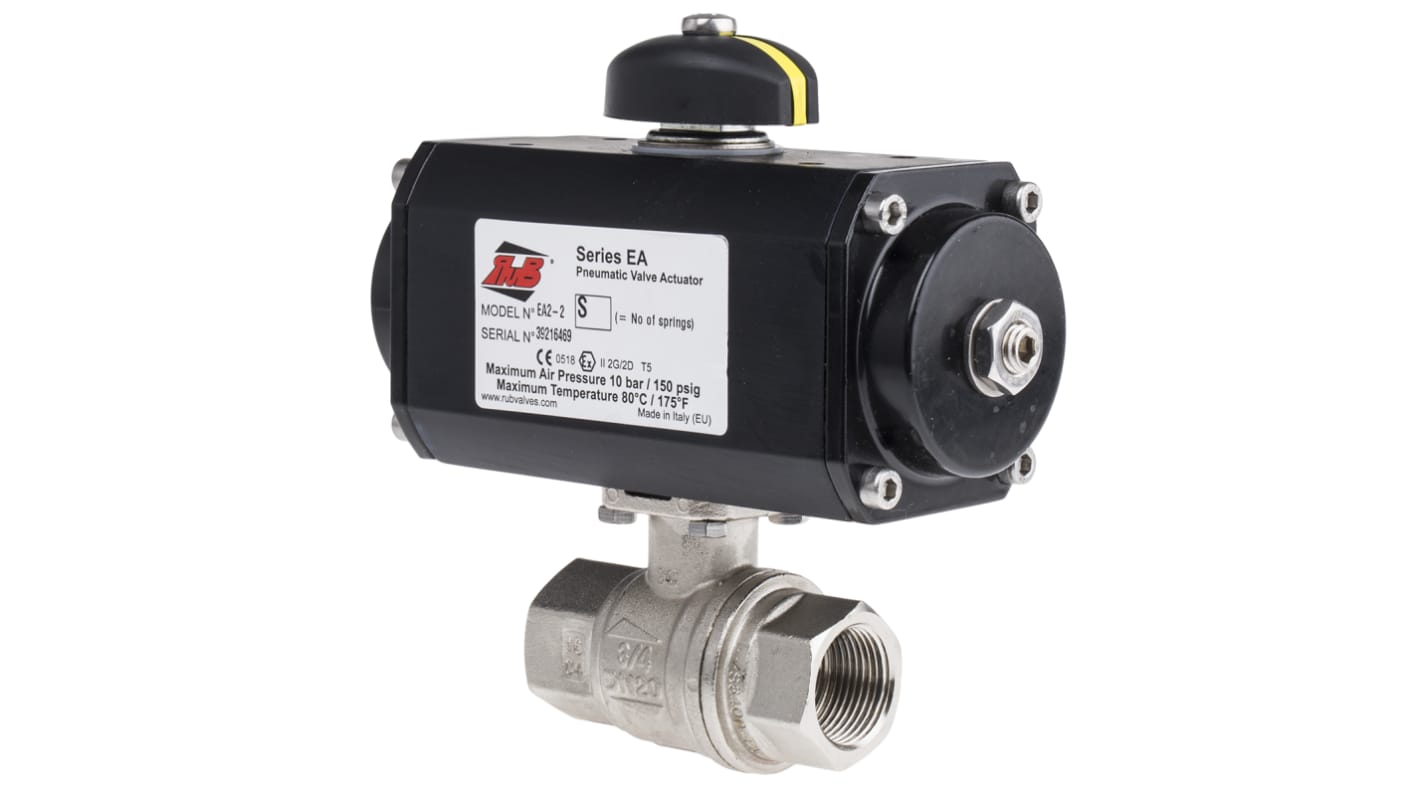

Pneumatic Actuator with s.64 Ball Valve
RS Pro pneumatic actuator with s.64 ball valve.
Features and Benefits
ISO 5211 direct mount on valve
NAMUR pads for direct mount of solenoid and limit switch
Pilot ring for perfect alignment of shaft and stem
Extruded aluminium body
Nickel plated steel shaft
Stainless steel fasteners
High tensile long life return springs
Visual position indicator
Indoor or outdoor installation
Single travel stop on one end
Fast field conversion between double-acting and spring-return
Minimum ambient temperature while actuator at rest: -35°C
NAMUR pads for direct mount of solenoid and limit switch
Pilot ring for perfect alignment of shaft and stem
Extruded aluminium body
Nickel plated steel shaft
Stainless steel fasteners
High tensile long life return springs
Visual position indicator
Indoor or outdoor installation
Single travel stop on one end
Fast field conversion between double-acting and spring-return
Minimum ambient temperature while actuator at rest: -35°C
