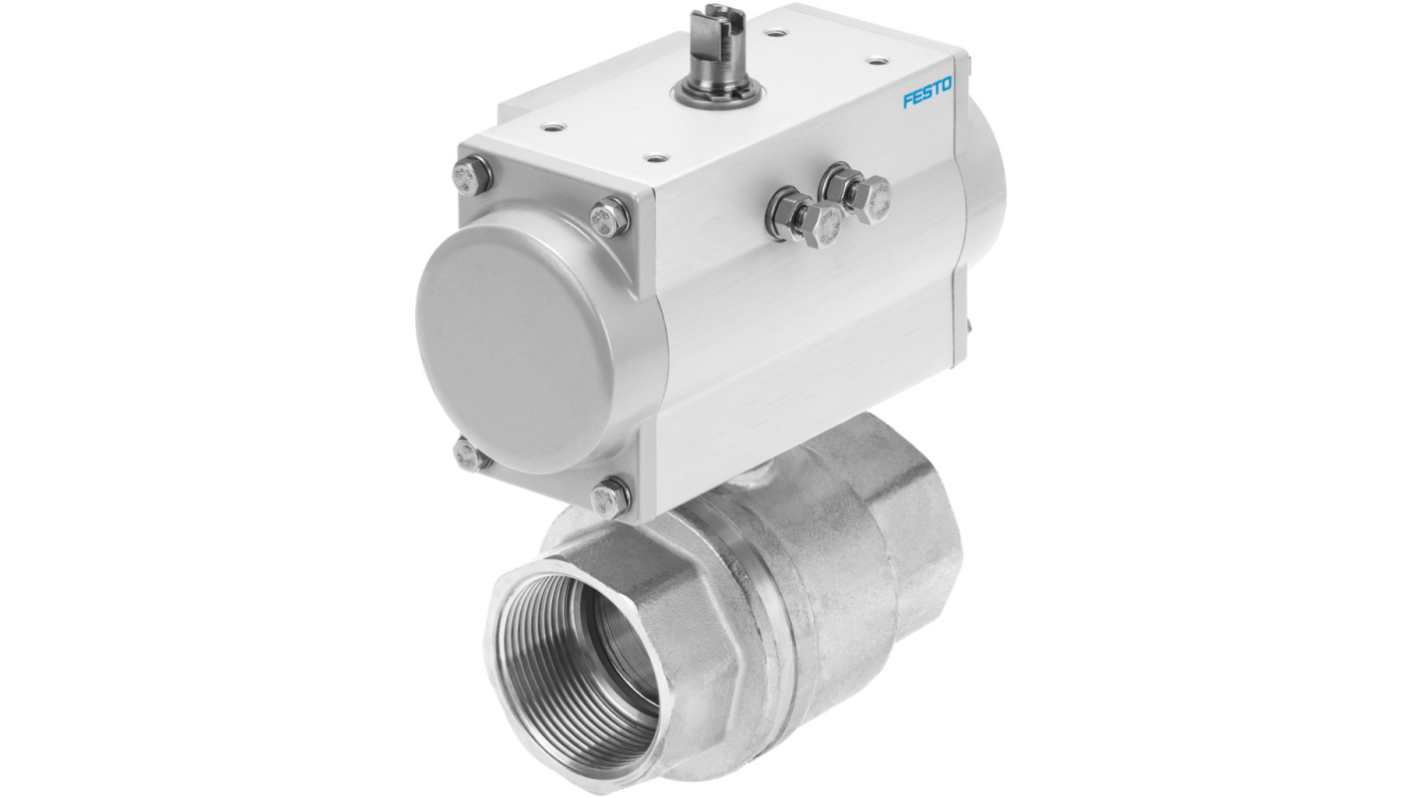

Festo Ball type Pneumatic Actuated Valve, Rp 3/8in, 40 bar
- RS Stock No.:
- 203-6106
- Mfr. Part No.:
- VZBM-A-3/8"-RP-40-D-2-B2-PB20
- Brand:
- Festo
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 203-6106
- Mfr. Part No.:
- VZBM-A-3/8"-RP-40-D-2-B2-PB20
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Thread Size | 3/8in | |
Valve Type | Ball | |
Default Valve Position | NC | |
Return Type | Spring | |
Thread Standard | Rp | |
Maximum Working Pressure | 40 bar | |
Select all | ||
---|---|---|
Brand Festo | ||
Thread Size 3/8in | ||
Valve Type Ball | ||
Default Valve Position NC | ||
Return Type Spring | ||
Thread Standard Rp | ||
Maximum Working Pressure 40 bar | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Actuated Valve, 3/8 in Thread size, 40 bar Maximum Working Pressure - VZBM-A-3/8-RP-40-D-2-B2-PB20, Numeric Part Number: 8070243
This pneumatic actuated valve is a robust solution designed for precise control in fluid handling. The ball valve features a 3/8 in Rp thread size, ensuring a secure connection in various applications. With a maximum working pressure of 40 bar, this valve is well-suited for demanding environments where reliability is essential.
Features & Benefits
• Single-acting actuator for easy operation
• Spring return mechanism ensures default closure
• Suitable for high-pressure applications up to 40 bar
• Nickel-plated brass housing offers durability and corrosion resistance
• Spring return mechanism ensures default closure
• Suitable for high-pressure applications up to 40 bar
• Nickel-plated brass housing offers durability and corrosion resistance
Applications
• Used with compressed air systems in automation
• Ideal for controlling inert gases and neutral fluids
• Suitable for water with no water vapour
• Effective in various mechanical and electrical setups
• Ideal for controlling inert gases and neutral fluids
• Suitable for water with no water vapour
• Effective in various mechanical and electrical setups
What are the operating conditions for this valve?
It operates effectively within a pressure range of 5.5 to 8 bar and can handle medium temperatures from -20 to 130 °C.
How does the spring return feature enhance functionality?
The spring return ensures the valve defaults to its closed position when not actuated, providing a safety mechanism in case of pressure loss.
What types of fluids can be handled by this valve?
It is designed for use with compressed air, inert gases, water without vapour, and other neutral fluids suited to its specified temperature range.
What installation positions are compatible with this valve?
The valve can be installed in any position, allowing flexibility for various piping configurations and applications.
