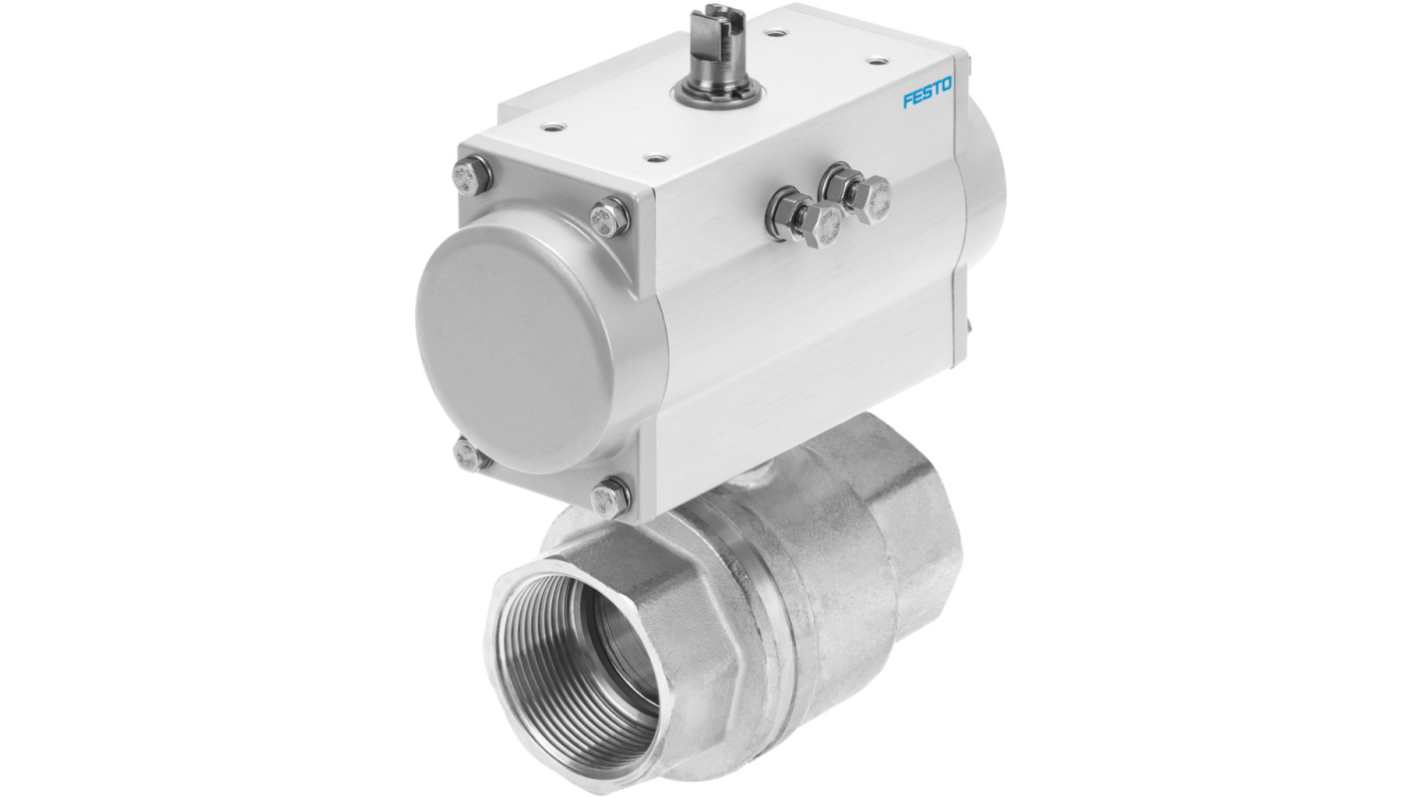

Festo Ball type Pneumatic Actuated Valve, Rp 1-1/2in, 25 bar
- RS Stock No.:
- 203-5999
- Mfr. Part No.:
- VZBM-A-11/2"-RP-25-D-2-B2-PB40
- Brand:
- Festo
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 203-5999
- Mfr. Part No.:
- VZBM-A-11/2"-RP-25-D-2-B2-PB40
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Thread Size | 1-1/2in | |
Valve Type | Ball | |
Default Valve Position | NC | |
Return Type | Spring | |
Thread Standard | Rp | |
Maximum Working Pressure | 25 bar | |
Select all | ||
---|---|---|
Brand Festo | ||
Thread Size 1-1/2in | ||
Valve Type Ball | ||
Default Valve Position NC | ||
Return Type Spring | ||
Thread Standard Rp | ||
Maximum Working Pressure 25 bar | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Actuated Valve, 1-1/2 in Thread size, NC Default Position - VZBM-A-11/2-RP-25-D-2-B2-PB40, Numeric Part Number: 8070248
This pneumatic actuated valve serves as a reliable component in automation systems, designed for fluid control in various applications. With a robust thread size of 1 in, this industrial valve accommodates various media, including compressed air, inert gases, and water. The valve features a spring return mechanism that ensures it returns to a default closed position when not actuated.
Features & Benefits
• Dual functionality with a 2-way ball valve design for efficient flow control
• Pneumatic actuation provides precise control in automated systems
• Versatile assembly position, allowing for flexible installation
• Robust maximum working pressure of 25 bar for high-pressure operations
• Nickel-plated brass housing ensures durability and corrosion resistance
• Pneumatic actuation provides precise control in automated systems
• Versatile assembly position, allowing for flexible installation
• Robust maximum working pressure of 25 bar for high-pressure operations
• Nickel-plated brass housing ensures durability and corrosion resistance
Applications
• Used in pneumatic systems for precise flow regulation
• Utilised in requiring robust high-pressure ball valves
• Suitable for controlling inert gases and neutral fluids
• Ideal for assembly in line installations with Rp1 thread connections
• Utilised in requiring robust high-pressure ball valves
• Suitable for controlling inert gases and neutral fluids
• Ideal for assembly in line installations with Rp1 thread connections
What is the maximum medium temperature that can be handled?
The valve can operate within a medium temperature range of -15 to 90 °C, ensuring optimal performance in various environments.
Can it operate under varying ambient temperatures?
Yes, it has an operational ambient temperature range from -20 to 80 °C, making it suitable for diverse industrial settings.
What types of fluids can be safely handled by this valve?
The valve is designed for use with compressed air, inert gases, water (without water vapour), and other neutral fluids in accordance with its specifications.
How is this valve maintained to ensure effective performance?
Regular maintenance involves ensuring that the operating medium is kept clean and dry, as lubricated operation may be required for continued functionality.
