Siemens Angle type Pneumatic Actuated Valve, Rp 3/8in to R 3/8in, 10 bar
- RS Stock No.:
- 645-123
- Mfr. Part No.:
- AEN10 / BPZ:AEN10
- Brand:
- Siemens
Subtotal (1 pack of 10 units)*
£143.62
(exc. VAT)
£172.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £143.62 | £14.362 |
*price indicative
- RS Stock No.:
- 645-123
- Mfr. Part No.:
- AEN10 / BPZ:AEN10
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Thread Size | 3/8in | |
Valve Type | Angle | |
Default Valve Position | NO | |
Return Type | Direct Action | |
Thread Standard | Rp | |
Thread Standard 2 | R | |
Thread Size 2 | 3/8in | |
Maximum Working Pressure | 10 bar | |
Select all | ||
---|---|---|
Brand Siemens | ||
Thread Size 3/8in | ||
Valve Type Angle | ||
Default Valve Position NO | ||
Return Type Direct Action | ||
Thread Standard Rp | ||
Thread Standard 2 R | ||
Thread Size 2 3/8in | ||
Maximum Working Pressure 10 bar | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT

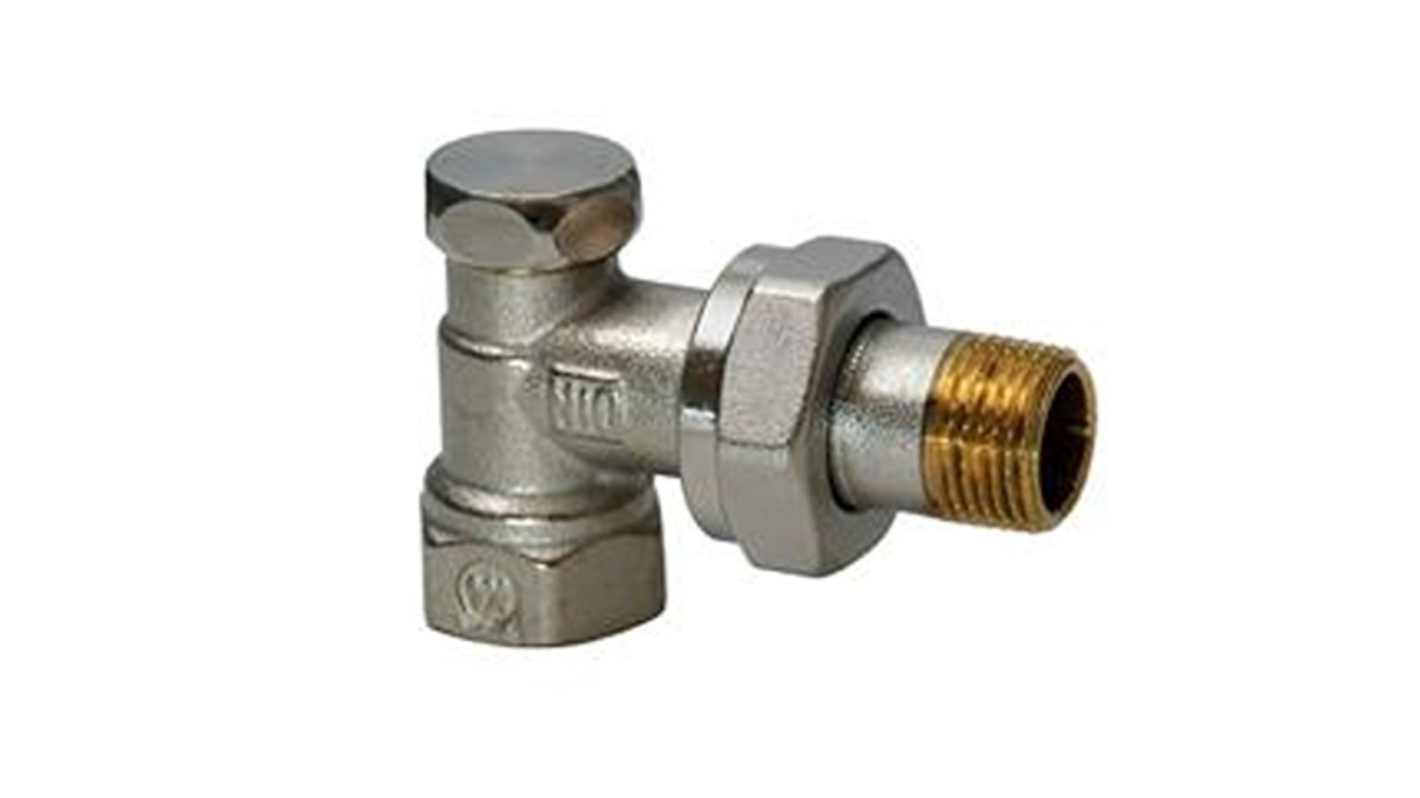

The Siemens Radiator Lock shield Valve: The Radiator Lock shield Valve is designed for use in hot water heating systems. It serves to shut off the flow of water to radiators during maintenance or replacement. Additionally, it helps throttle water flow for hydraulic balancing, particularly when thermostatic or manual valves lack presetting. The valve also features integrated presetting of kv-values and comes with internally and externally threaded connections (Rp/R), compliant with ISO 7-1 standards.
Presetting protected by a cap
Pressure class PN 10
RoHS compliant
Valve body made of brass and is nickel plated
Cap made of brass and is nickel plated
O-ring NBR
Pressure class PN 10
RoHS compliant
Valve body made of brass and is nickel plated
Cap made of brass and is nickel plated
O-ring NBR
