INA RSHEY20-XL-N Plummer Block House -, 20mm ID
- RS Stock No.:
- 649-195
- Mfr. Part No.:
- RSHEY20-XL-N
- Brand:
- INA
Subtotal (1 unit)*
£39.83
(exc. VAT)
£47.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £39.83 |
*price indicative
- RS Stock No.:
- 649-195
- Mfr. Part No.:
- RSHEY20-XL-N
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | INA | |
Inside Diameter | 20mm | |
Bearing Unit Type | Plummer Block | |
Material | Cast Iron | |
Centre Height | 33.3mm | |
Mount Hole Size | M8 | |
Select all | ||
---|---|---|
Brand INA | ||
Inside Diameter 20mm | ||
Bearing Unit Type Plummer Block | ||
Material Cast Iron | ||
Centre Height 33.3mm | ||
Mount Hole Size M8 | ||
RoHS Status: Exempt

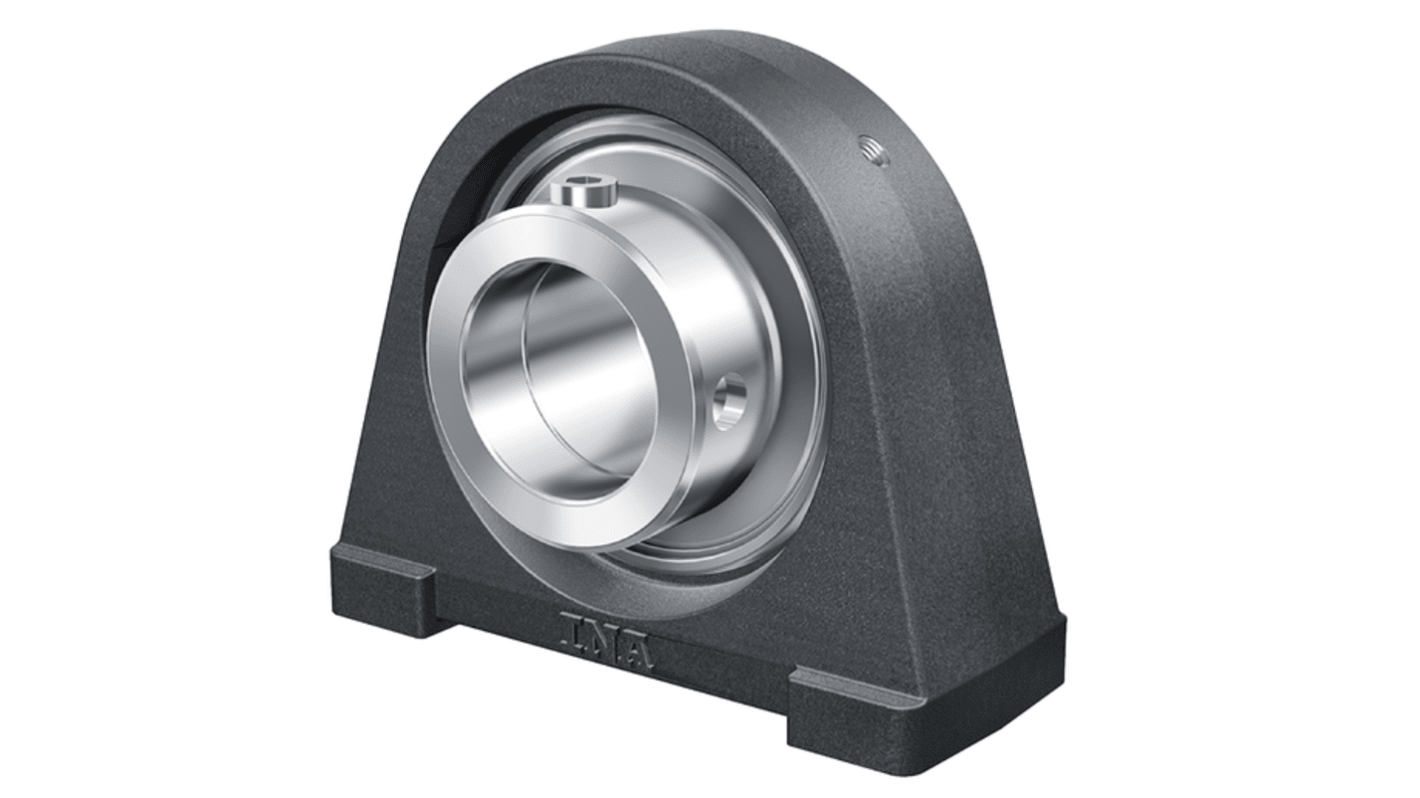

The INA Plummer block housing unit made from robust grey cast iron (GG). It features a radial insert ball bearing with grub screws in the inner ring for secure mounting, and is equipped with R seals to ensure effective protection against contaminants. The housing has a Groove N design with an undercut slot for end caps, facilitating easy installation and maintenance. This unit supports a bore diameter of 20 mm and can operate within a temperature range of -20 °C to +120 °C.
M6 connection thread for lubrication access
Includes KASK04 protecting cap for additional safeguarding
Durable construction
Includes KASK04 protecting cap for additional safeguarding
Durable construction
