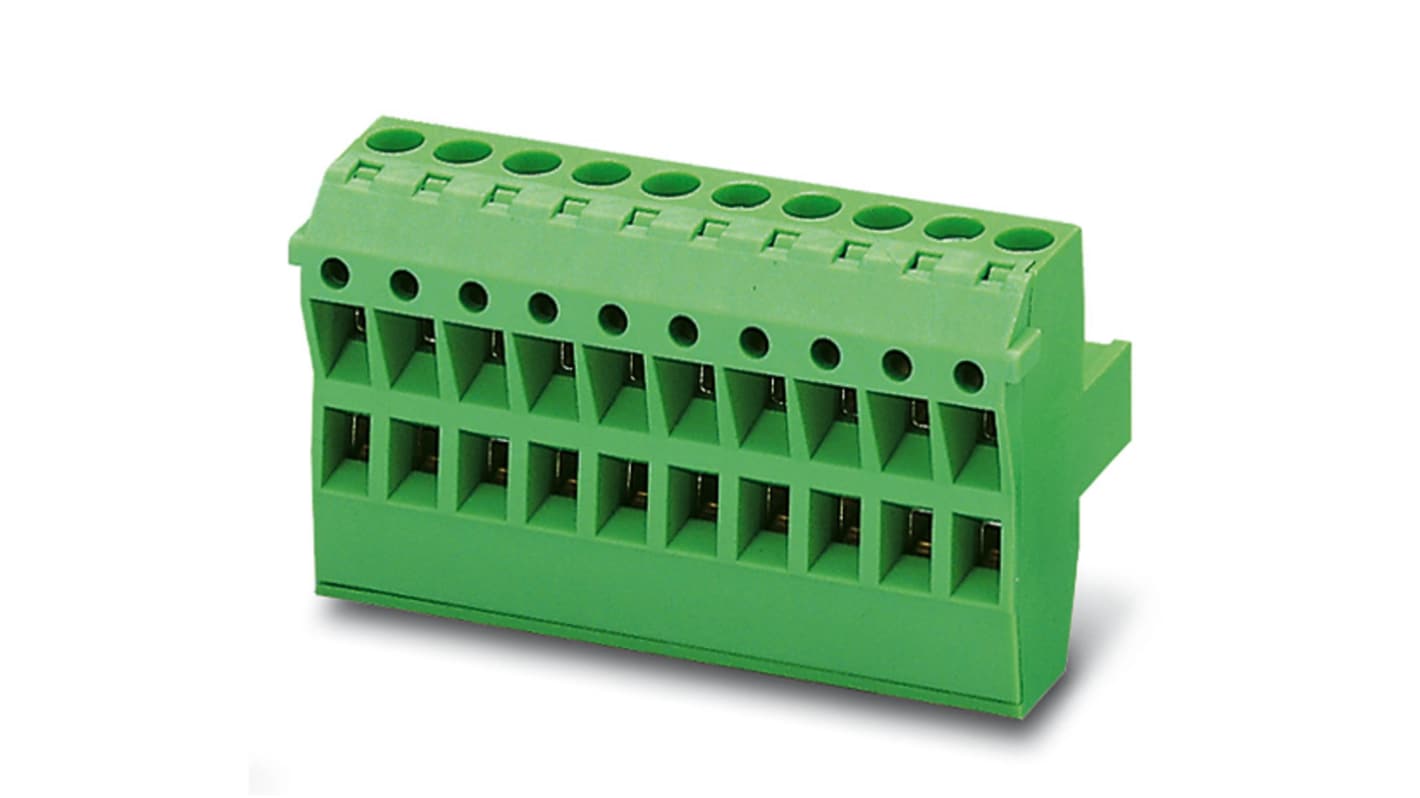

Phoenix Contact 5.08mm Pitch 10 Way Pluggable Terminal Block, Plug, Screw Termination
- RS Stock No.:
- 887-7108
- Mfr. Part No.:
- 1853094
- Brand:
- Phoenix Contact
Available to back order for despatch 05/07/2024
Added
Price Each (In a Box of 50)
£10.783
(exc. VAT)
£12.94
(inc. VAT)
| Units | Per unit | Per Box* |
| 50 + | £10.783 | £539.15 |
| *price indicative | ||
- RS Stock No.:
- 887-7108
- Mfr. Part No.:
- 1853094
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
PCB connector, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, Number of potentials: 10, Number of rows: 1, Number of positions per row: 10, number of connections: 20, product range: TMSTBP 2,5/..-ST, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, conductor/PCB connection direction: 0 °, Stecksystem: CLASSIC COMBICON, Locking: without, type of packaging: packed in cardboard, The plug allows conductors to be looped through from module to module.
Specifications
Attribute | Value |
|---|---|
| Pluggable Terminal Block Type | Plug |
| Number of Contacts | 10 |
| Pitch | 5.08mm |
| Series | TMSTBP 2.5/10-ST-5.08 |
| Termination Method | Screw |
| Current Rating | 12A |
| Voltage Rating | 630 V |
| Colour | Green |
| Material | Polyamide, Tin (Contact) |
