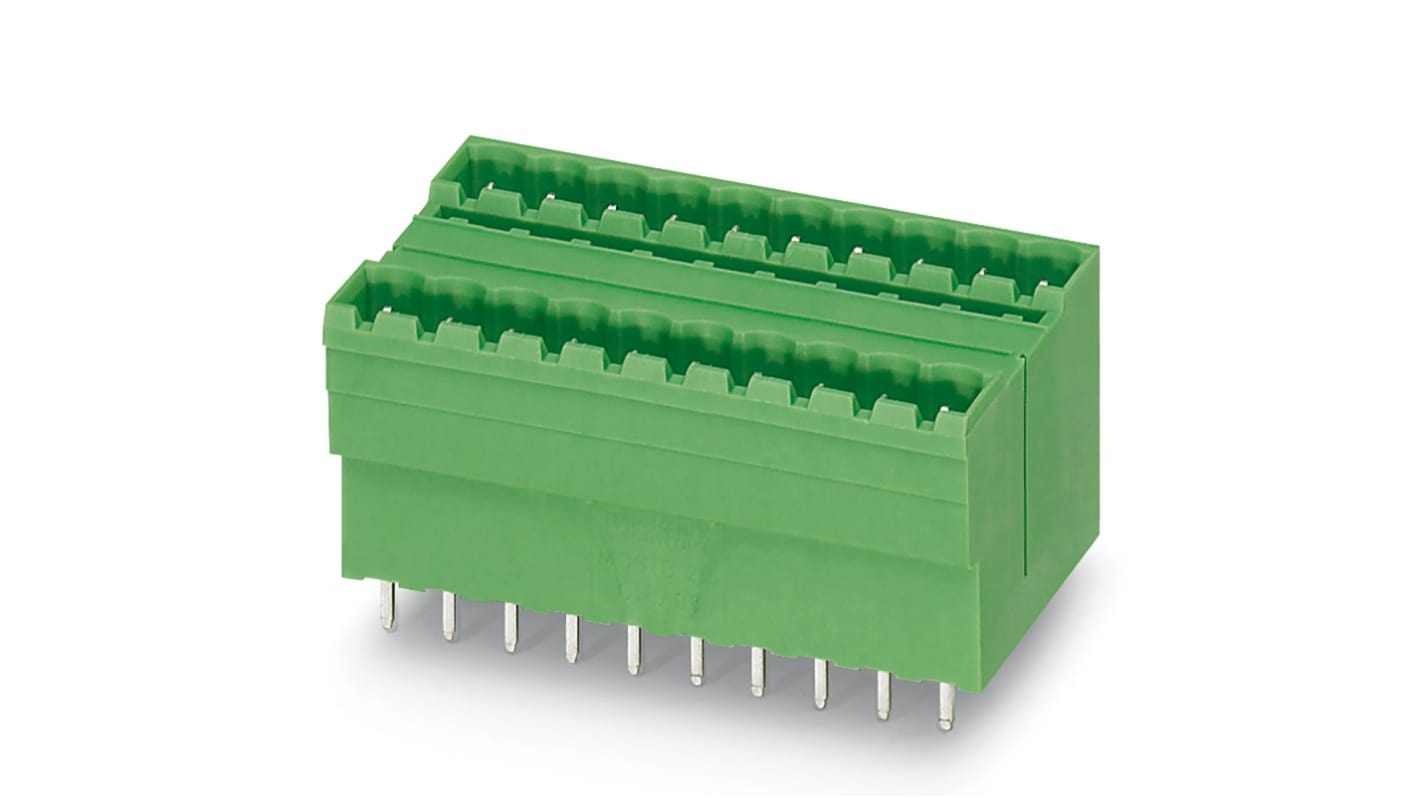

Phoenix Contact, 5.08mm Pitch, MDSTBV 2.5/15-G1-5.08, 15 Way, Pluggable Terminal Block, Header, Solder Termination,
- RS Stock No.:
- 882-0669
- Mfr. Part No.:
- 1762635
- Brand:
- Phoenix Contact
Subtotal (1 box of 50 units)*
£483.40
(exc. VAT)
£580.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
50 + | £9.668 | £483.40 |
*price indicative
- RS Stock No.:
- 882-0669
- Mfr. Part No.:
- 1762635
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Pluggable Terminal Block Type | Header | |
Number of Contacts | 15 | |
Pitch | 5.08mm | |
Series | MDSTBV 2.5/15-G1-5.08 | |
Termination Method | Solder | |
Current Rating | 10.0A | |
Voltage Rating | 630.0 V | |
Contact Material | Tin | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Pluggable Terminal Block Type Header | ||
Number of Contacts 15 | ||
Pitch 5.08mm | ||
Series MDSTBV 2.5/15-G1-5.08 | ||
Termination Method Solder | ||
Current Rating 10.0A | ||
Voltage Rating 630.0 V | ||
Contact Material Tin | ||
- COO (Country of Origin):
- PL
PCB headers, nominal cross section: 2.5 mm², color: green, nominal current: 10 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 30, Number of rows: 2, Number of positions per row: 15, number of connections: 30, product range: MDSTBV 2,5/..-G1, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, Stecksystem: CLASSIC COMBICON, Locking: without, type of packaging: packed in cardboard, In combination with MVSTB or FKCV plug components, both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with TMSTBP plug components is not possible!
