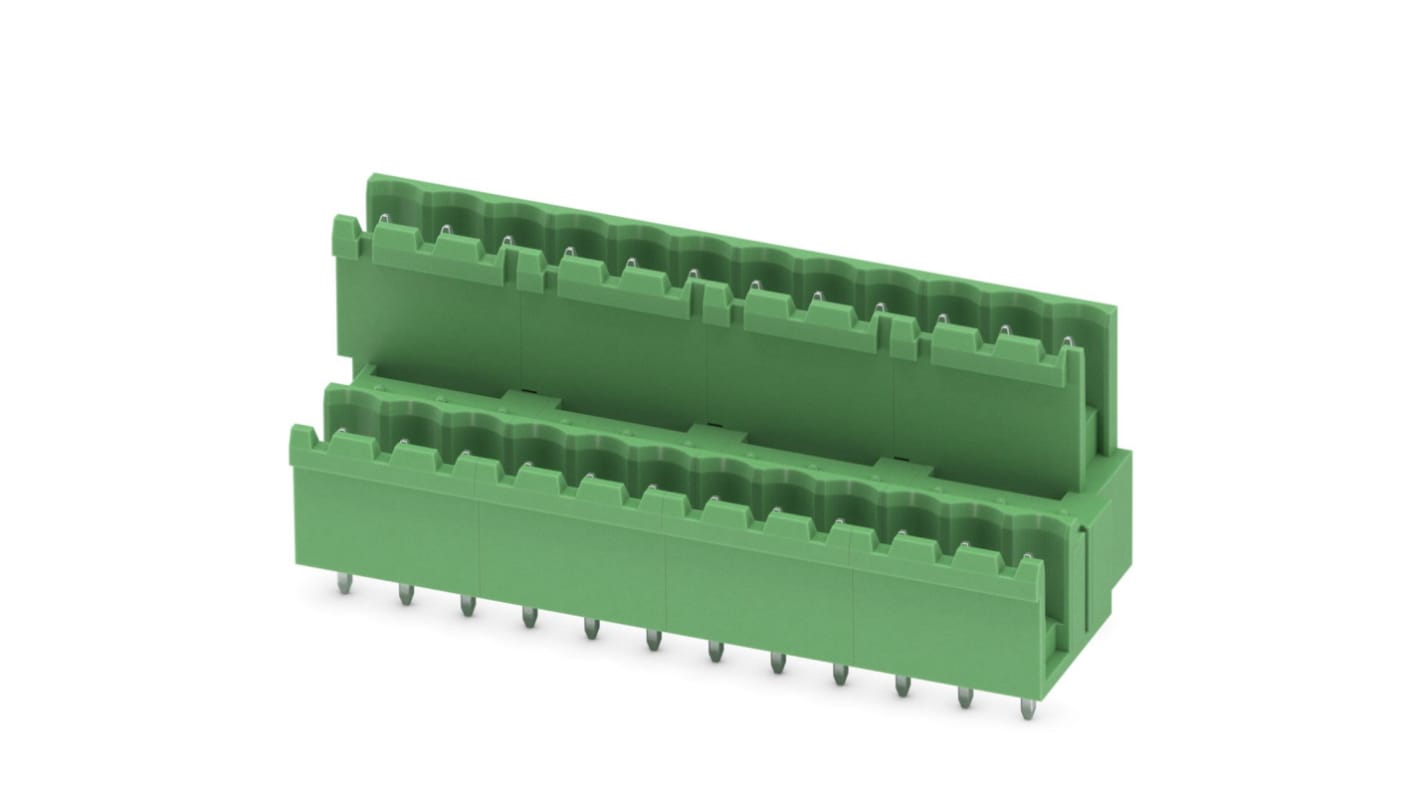

Phoenix Contact MDSTBV 2.5/12-G-5.08 Series Pluggable Terminal Block, 12-Contact, 5.08 mm Pitch, 2 Row, 1845581
- RS Stock No.:
- 881-9568
- Mfr. Part No.:
- 1845581
- Brand:
- Phoenix Contact
Subtotal (1 box of 50 units)*
£384.65
(exc. VAT)
£461.60
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 50 + | £7.693 | £384.65 |
*price indicative
- RS Stock No.:
- 881-9568
- Mfr. Part No.:
- 1845581
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 12 | |
| Pitch | 5.08mm | |
| Current | 10A | |
| Number of Rows | 2 | |
| Housing Material | Polybutylene Terephthalate | |
| Maximum Wire Size mm² | 2.5mm² | |
| Connector Gender | Male | |
| Colour | Green | |
| Wire Connection Method | Solder | |
| Voltage | 400 V | |
| Series | MDSTBV 2.5/12-G-5.08 | |
| Width | 63.5 mm | |
| Length | 28.5mm | |
| Depth | 26mm | |
| Standards/Approvals | UL 94 V-0, CSA, cULus, REACH, RoHS, VDE | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 12 | ||
Pitch 5.08mm | ||
Current 10A | ||
Number of Rows 2 | ||
Housing Material Polybutylene Terephthalate | ||
Maximum Wire Size mm² 2.5mm² | ||
Connector Gender Male | ||
Colour Green | ||
Wire Connection Method Solder | ||
Voltage 400 V | ||
Series MDSTBV 2.5/12-G-5.08 | ||
Width 63.5 mm | ||
Length 28.5mm | ||
Depth 26mm | ||
Standards/Approvals UL 94 V-0, CSA, cULus, REACH, RoHS, VDE | ||
- COO (Country of Origin):
- DE
PCB headers, nominal cross section: 2.5 mm², color: green, nominal current: 10 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 24, Number of rows: 2, Number of positions per row: 12, number of connections: 24, product range: MDSTBV 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, Stecksystem: CLASSIC COMBICON, Locking: without, type of packaging: packed in cardboard, Can be aligned! Mounting flange: Order No. 1836477, 1836480. In combination with MVSTB or FKCV plug components, both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with TMSTBP plug components is not possible!
