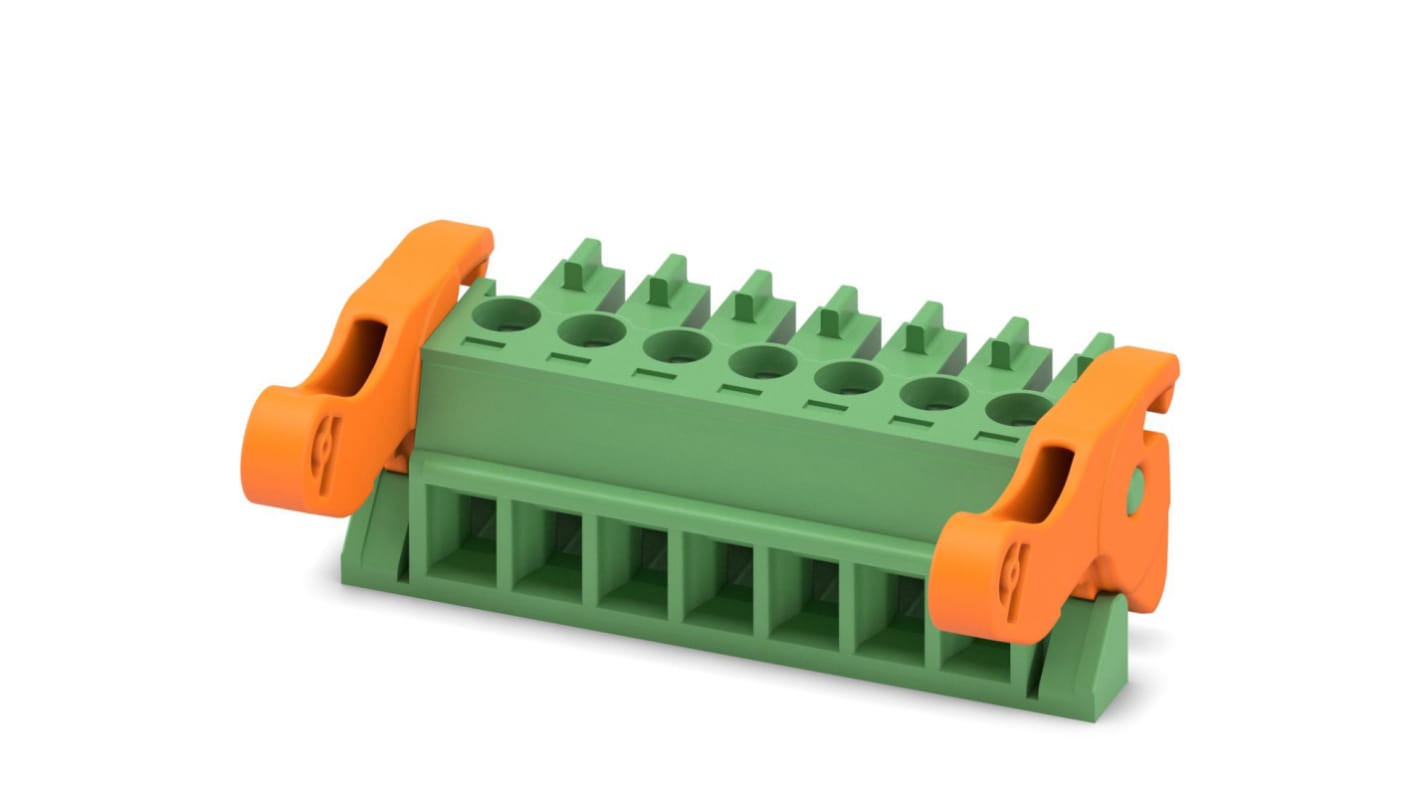

Phoenix Contact 3.81mm Pitch 7 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination
- RS Stock No.:
- 881-4591
- Mfr. Part No.:
- 1817097
- Brand:
- Phoenix Contact
Available to back order for despatch 19/08/2024
Price Each (In a Box of 50)
£6.445
(exc. VAT)
£7.734
(inc. VAT)
Units | Per unit | Per Box* |
|---|---|---|
| 50 + | £6.445 | £322.25 |
*price indicative
- RS Stock No.:
- 881-4591
- Mfr. Part No.:
- 1817097
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PCB connector, nominal cross section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Female connector, Number of potentials: 7, Number of rows: 1, Number of positions per row: 7, number of connections: 7, product range: MC 1,5/..-ST-LR, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, conductor/PCB connection direction: 0 °, Stecksystem: MINI COMBICON, Locking: Snap-in locking, type of packaging: packed in cardboard
Specifications
Attribute | Value |
|---|---|
| Pluggable Terminal Block Type | Plug |
| Number of Contacts | 7 |
| Pitch | 3.81mm |
| Series | MC 1.5/ 7-ST-3.81-LR |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Termination Method | Screw |
| Current Rating | 8A |
| Voltage Rating | 320 V |
| Colour | Green |
| Material | Polyamide, Tin |
