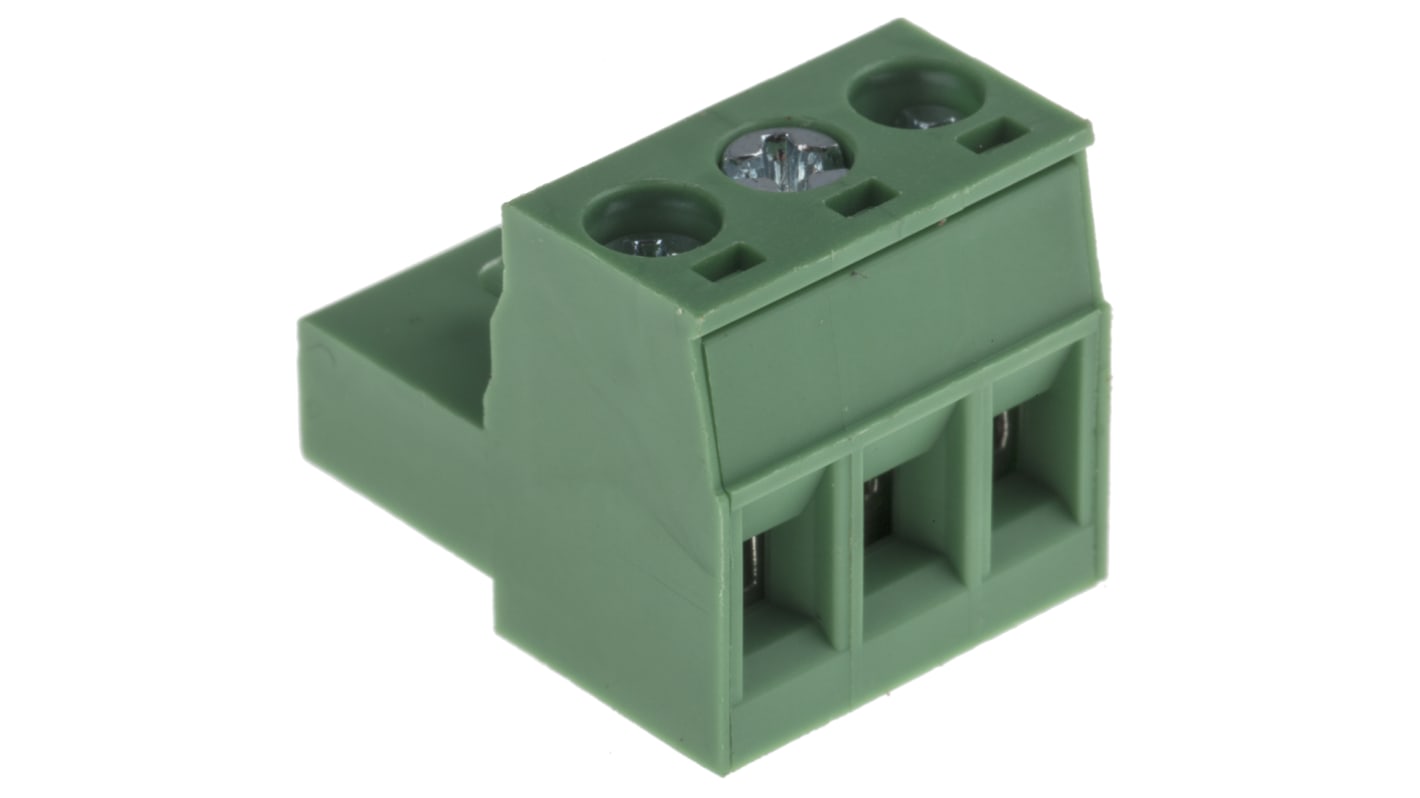

RS PRO 952 Series Pluggable Terminal Block, 3-Contact, 5 mm Pitch, 1 Row
- RS Stock No.:
- 874-5534
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£10.75
(exc. VAT)
£12.90
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 60 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £1.075 | £10.75 |
| 50 - 90 | £1.021 | £10.21 |
| 100 - 490 | £0.968 | £9.68 |
| 500 - 990 | £0.913 | £9.13 |
| 1000 + | £0.861 | £8.61 |
*price indicative
- RS Stock No.:
- 874-5534
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 10A | |
| Housing Material | Polyamide | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 12AWG | |
| Maximum Wire Size AWG | 28AWG | |
| Orientation | Straight | |
| Wire Connection Method | Screw | |
| Colour | Green | |
| Voltage | 300V | |
| Depth | 15.5mm | |
| Width | 18.4mm | |
| Series | 952 | |
| Standards/Approvals | No | |
| Length | 15mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 3 | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 10A | ||
Housing Material Polyamide | ||
Connector Gender Male | ||
Minimum Wire Size AWG 12AWG | ||
Maximum Wire Size AWG 28AWG | ||
Orientation Straight | ||
Wire Connection Method Screw | ||
Colour Green | ||
Voltage 300V | ||
Depth 15.5mm | ||
Width 18.4mm | ||
Series 952 | ||
Standards/Approvals No | ||
Length 15mm | ||
- COO (Country of Origin):
- CN
RS 5.0mm Board Edge Terminal Block Plug Connectors
Terminal block board edge plug connectors with a 5.0mm pitch and a 300V 12 A rating. These 5.0mm pluggable board edge terminal blocks have M2.5 rising cage clamp screw terminals that accept a wire size range of 28 to 12 AWG and green PA66 housings.
