Phoenix Contact MSTBVA 2.5/17-G-5.08-LR Series Pluggable Terminal Block, 17-Contact, 5.08 mm Pitch, 1 Row, 1809416
- RS Stock No.:
- 871-7933
- Mfr. Part No.:
- 1809416
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£207.25
(exc. VAT)
£248.70
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £4.145 | £207.25 |
*price indicative
- RS Stock No.:
- 871-7933
- Mfr. Part No.:
- 1809416
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 17 | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Housing Material | Polybutylene Terephthalate | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 2.5mm² | |
| Wire Connection Method | Solder | |
| Colour | Green | |
| Voltage | 320V | |
| Depth | 15.9mm | |
| Width | 96.52mm | |
| Standards/Approvals | CHINA RoHS, CSA, cULus, EU REACH SVHC, EU RoHS | |
| Series | MSTBVA 2.5/17-G-5.08-LR | |
| Length | 8.6mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 17 | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 12A | ||
Housing Material Polybutylene Terephthalate | ||
Connector Gender Male | ||
Maximum Wire Size mm² 2.5mm² | ||
Wire Connection Method Solder | ||
Colour Green | ||
Voltage 320V | ||
Depth 15.9mm | ||
Width 96.52mm | ||
Standards/Approvals CHINA RoHS, CSA, cULus, EU REACH SVHC, EU RoHS | ||
Series MSTBVA 2.5/17-G-5.08-LR | ||
Length 8.6mm | ||
- COO (Country of Origin):
- DE

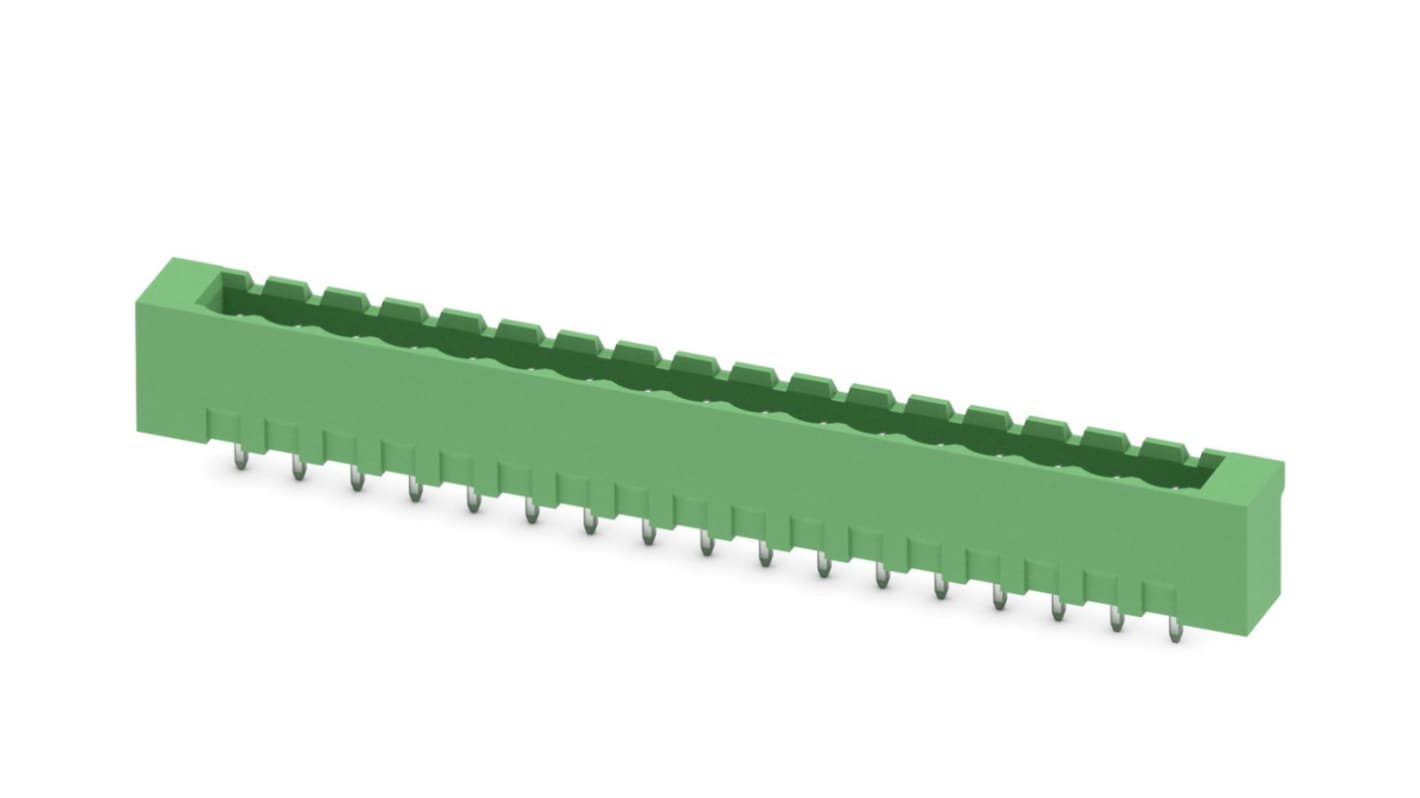

Phoenix Contact CLASSIC COMBICON MSTBV & MSTBVA 5.08mm Single Level Terminal Block Headers
A range of 5.08 mm pitch CLASSIC COMBICON PCB vertical through hole mount single level standard terminal block MSTBV and MSTBVA shrouded headers with male pins.
Part numbers prefixed with 1809 (MSTBVA) are for use with lock and release locking plug in terminal block connectors.
Part numbers prefixed with 1808 (MSTBV) have a release aid.
For coding section see stock number 648-6882
For marker labels see stock numbers 804-0961, 437-3598 and 437-3605
