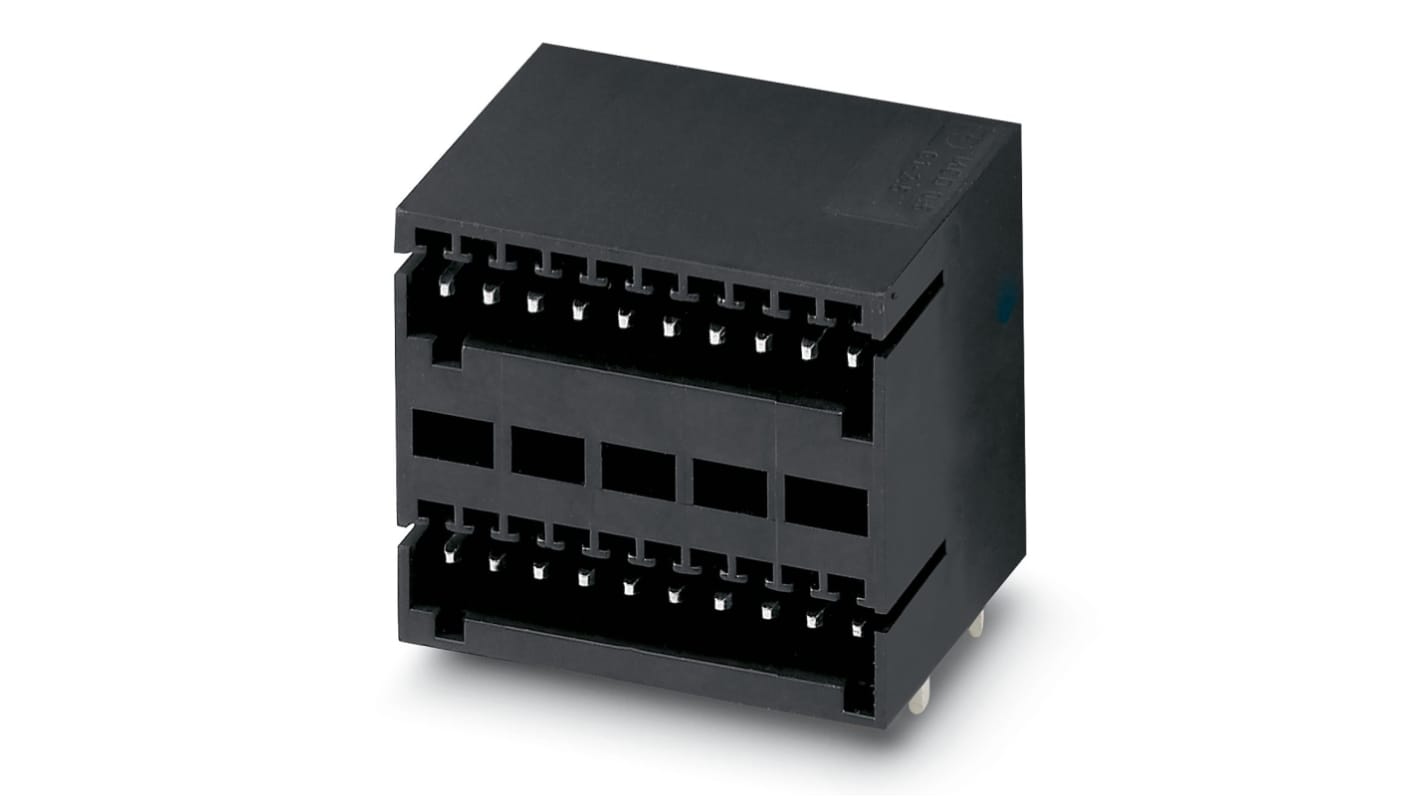

Phoenix Contact, 2.5mm Pitch, MCD 0.5/12-G1-2.5 HT BK, 12 Way, Pluggable Terminal Block, Header, Solder Termination,

View all Pluggable Terminal Blocks

Subtotal (1 box of 50 units)*

£881.45

(exc. VAT)

£1,057.75

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
50 +£17.629£881.45

*price indicative

Sponsored
Phoenix Contact jumper bars for terminals
Phoenix Contact
Phoenix Contact Jumper Bars
Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.
Buy Phoenix Contact Jumper Bars
RS Stock No.:
859-3765
Mfr. Part No.:
1955141
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Pluggable Terminal Block Type

Header

Number of Contacts

12

Pitch

2.5mm

Series

MCD 0.5/12-G1-2.5 HT BK

Termination Method

Solder

Current Rating

4.0A

Voltage Rating

160.0 V

Contact Material

Tin

COO (Country of Origin):
DE
PCB headers, nominal cross section: 0.5 mm², color: black, nominal current: 4 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 24, Number of rows: 2, Number of positions per row: 12, number of connections: 24, product range: MCD 0,5/..-G1-HT, pitch: 2.5 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 3.8 mm, Stecksystem: MICRO COMBICON - FK-MC 0,5, Locking: without, type of packaging: packed in cardboard, Standard component made of highly temperature resistant plastic

suitable for reflow process. User information and design recommendations on Through Hole Reflow Technology can be found at: "Downloads".
