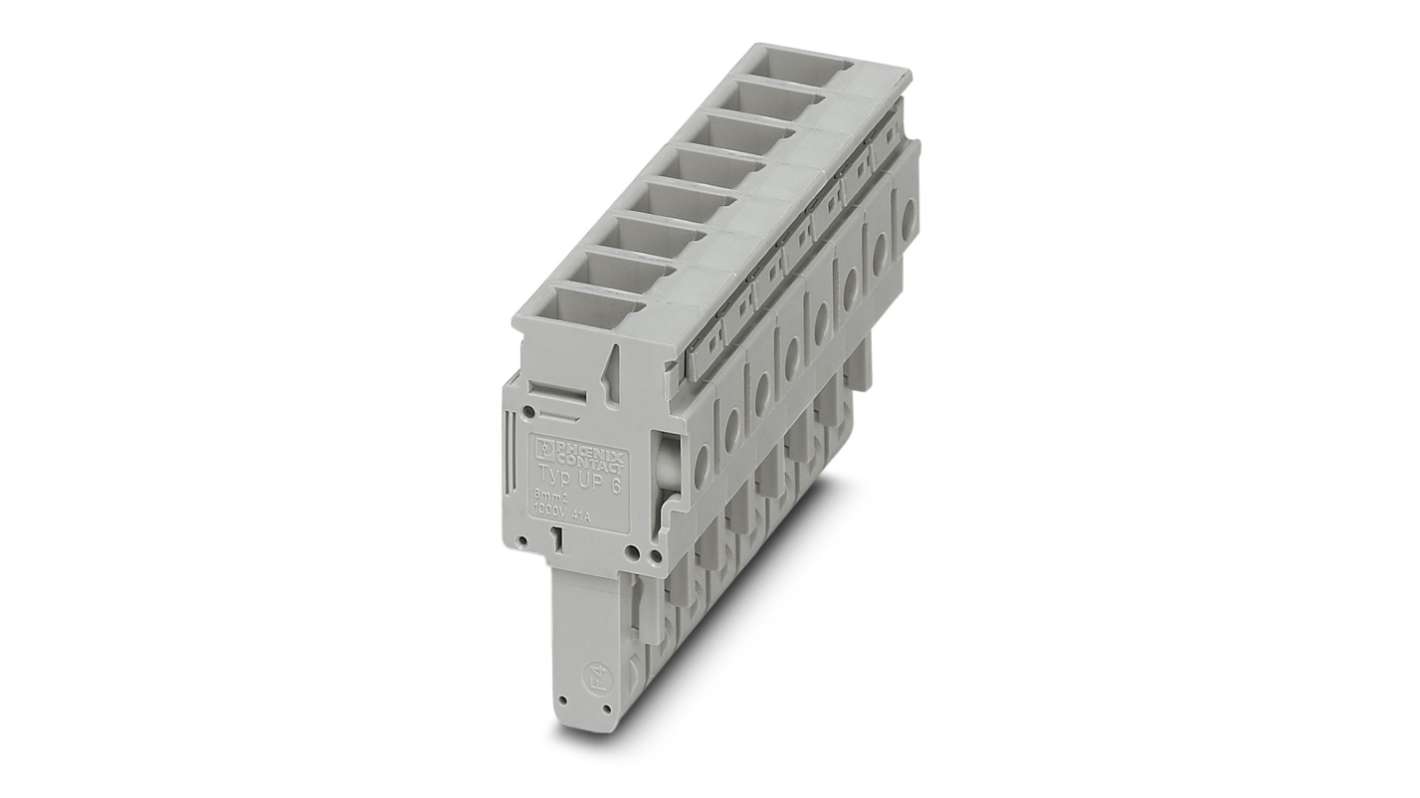

Phoenix Contact UP 6/8 Series Pluggable Terminal Block, 8-Contact, 8.2 mm Pitch, 1 Row, 3060681
- RS Stock No.:
- 857-0901
- Mfr. Part No.:
- 3060681
- Brand:
- Phoenix Contact
Subtotal (1 box of 25 units)*
£343.75
(exc. VAT)
£412.50
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 25 + | £13.75 | £343.75 |
*price indicative
- RS Stock No.:
- 857-0901
- Mfr. Part No.:
- 3060681
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 8 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 8.2mm | |
| Current | 41A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 6mm² | |
| Maximum Wire Size mm² | 0.2mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Wire Connection Method | Screw | |
| Colour | Grey | |
| Voltage | 1kV | |
| Standards/Approvals | RoHS | |
| Series | UP 6/8 | |
| Width | 65.6mm | |
| Depth | 42.7mm | |
| Length | 21mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 8 | ||
Product Type Pluggable Terminal Block | ||
Pitch 8.2mm | ||
Current 41A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 6mm² | ||
Maximum Wire Size mm² 0.2mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 10AWG | ||
Wire Connection Method Screw | ||
Colour Grey | ||
Voltage 1kV | ||
Standards/Approvals RoHS | ||
Series UP 6/8 | ||
Width 65.6mm | ||
Depth 42.7mm | ||
Length 21mm | ||
- COO (Country of Origin):
- CN
UP series CLIPLINE COMBI Plugs
The screw plugs can be combined with COMBI terminal blocks with all forms of connection technology and are available in two versions
The COMBI plugs for self-assembly provide solutions that users can implement themselves
The plugs are assembled directly on site by snapping together single-position plug elements
The plug design enables space-saving potential distribution by using four-conductor terminal blocks with two slots
