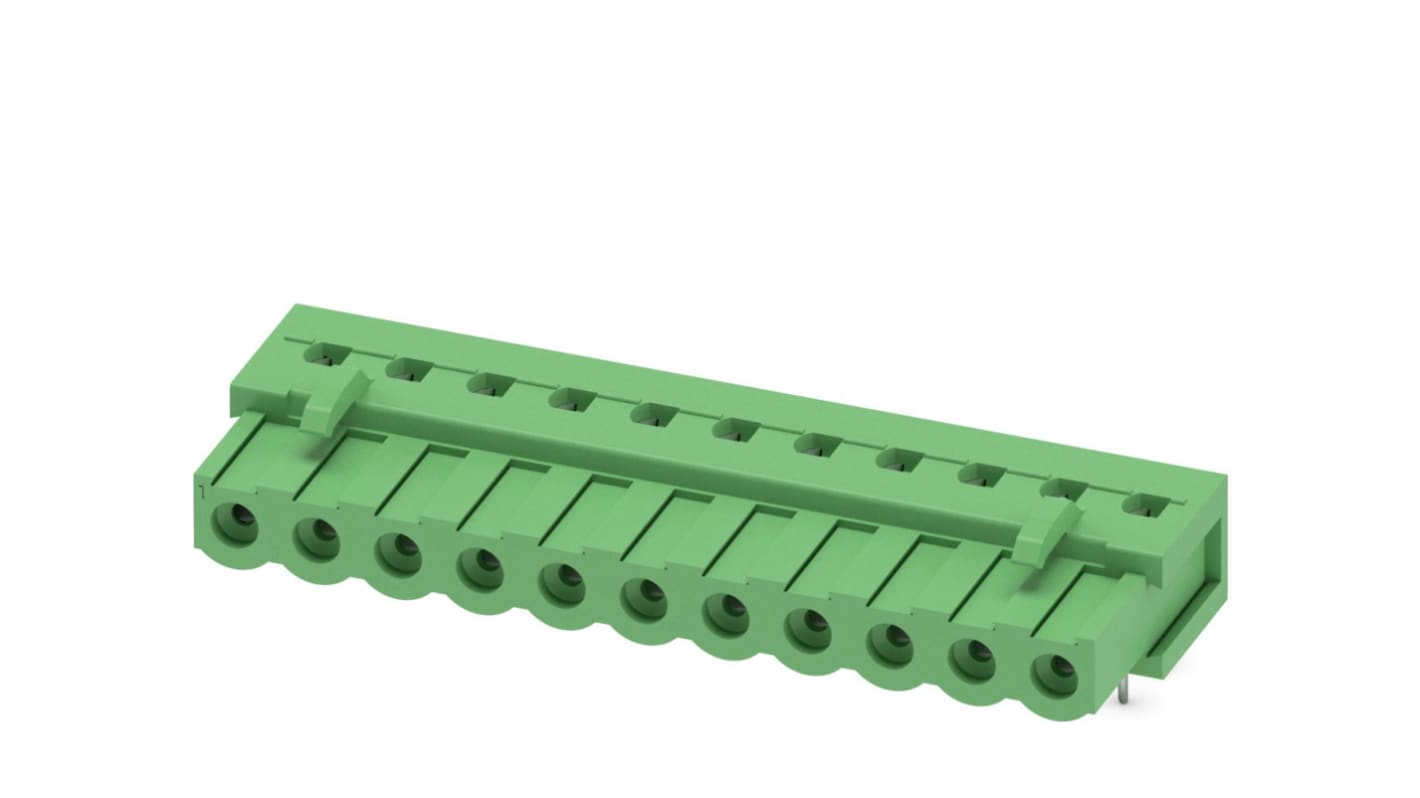

Phoenix Contact 5.08mm Pitch 11 Way Right Angle Pluggable Terminal Block, Inverted Header, Through Hole, Solder
- RS Stock No.:
- 856-2821
- Mfr. Part No.:
- 1943409
- Brand:
- Phoenix Contact
Available to back order for despatch 02/07/2024
Price Each (In a Box of 50)
£5.693
(exc. VAT)
£6.832
(inc. VAT)
Units | Per unit | Per Box* |
50 + | £5.693 | £284.65 |
*price indicative |
- RS Stock No.:
- 856-2821
- Mfr. Part No.:
- 1943409
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PCB headers, nominal cross section: 2.5 mm², color: green, nominal current: 16 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, Number of potentials: 11, Number of rows: 1, Number of positions per row: 11, number of connections: 11, product range: IC 2,5 HC/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, Stecksystem: POWER COMBICON 2,5, Locking: without, type of packaging: packed in cardboard, COMBICON connectors may only be activated under no load conditions. If for operating reasons small loads must be switched, experimental values are available upon request.
Specifications
Attribute | Value |
---|---|
Pluggable Terminal Block Type | Inverted Header |
Number of Contacts | 11 |
Pitch | 5.08mm |
Series | COMBICON Power |
Number of Rows | 1 |
Body Orientation | Right Angle |
Mounting Type | Through Hole |
Termination Method | Solder |
Current Rating | 16.0A |
Voltage Rating | 630.0 V |
Contact Material | Tin |
