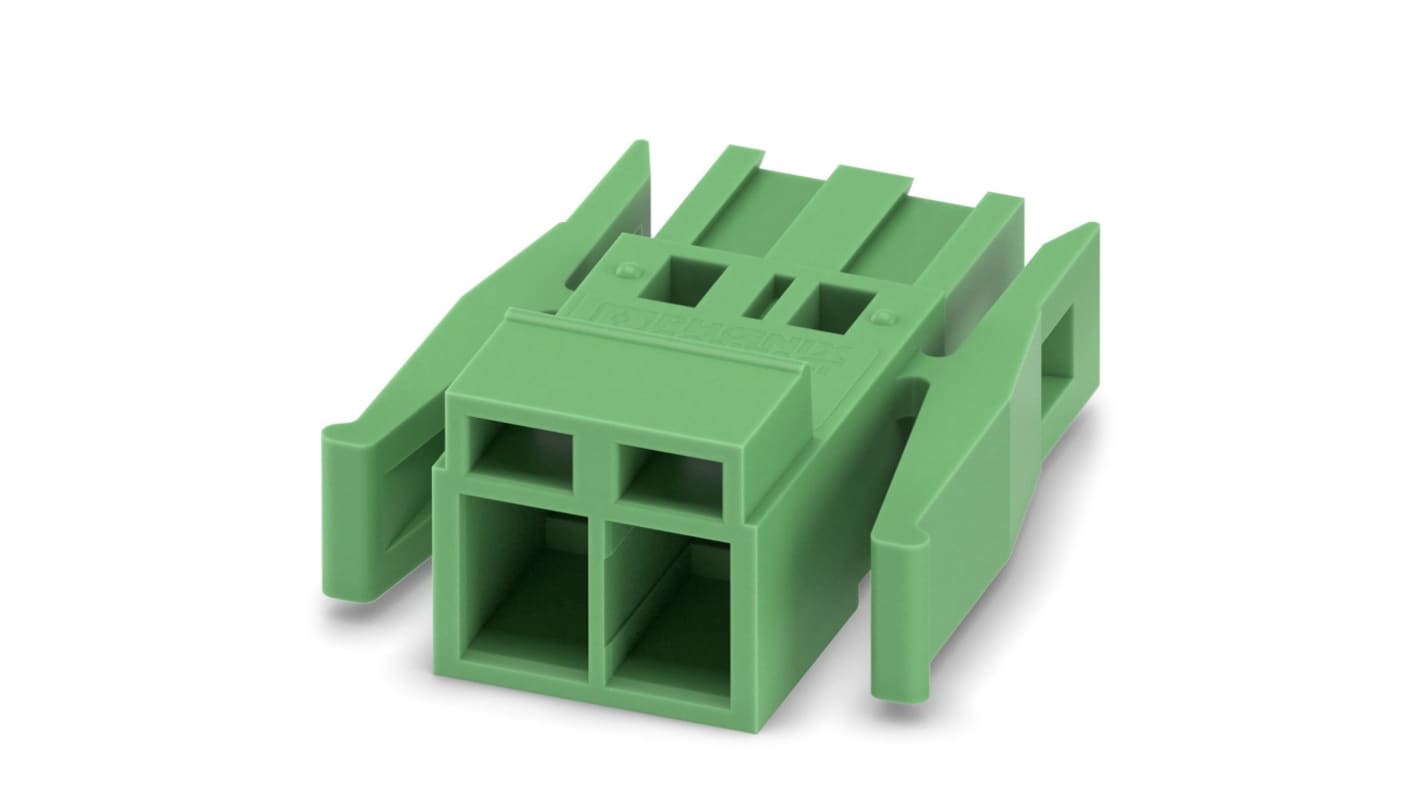

PCB connector, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, type of contact: Female connector, Number of potentials: 2, Number of rows: 1, Number of positions per row: 2, number of connections: 2, product range: MSTBC 2,5/..-STZ-RF, pitch: 5.08 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, Stecksystem: CLASSIC COMBICON, Locking: Snap-in locking, type of packaging: packed in cardboard, Corresponding female crimp contacts with current [A] and conductor cross section range [mm²] data: 10A/MSTBC-MT 0,5-1,0 (3190564)

10A/MSTBC-MT 0,5-1,0 BA (3190645)

12A/MSTBC-MT 1,5-2,5 (3190551)

12A/MSTBC-MT 1,5-2,5 BA (3190658). BA = Bandkontakte

Select all	Attribute	Value
	Brand	Phoenix Contact
	Pluggable Terminal Block Type	Plug
	Number of Contacts	2
	Pitch	5.08mm
	Series	MSTBC 2.5/ 2-STZ-5.08-R
	Termination Method	Screw
	Current Rating	12A
	Voltage Rating	630 V
	Colour	Green

	Select all
	Brand Phoenix Contact
	Pluggable Terminal Block Type Plug
	Number of Contacts 2
	Pitch 5.08mm
	Series MSTBC 2.5/ 2-STZ-5.08-R
	Termination Method Screw
	Current Rating 12A
	Voltage Rating 630 V
	Colour Green

Phoenix Contact, 5.08mm Pitch, MSTBC 2.5/ 2-STZ-5.08-R, 2 Way, Pluggable Terminal Block, Plug, Screw Termination,
