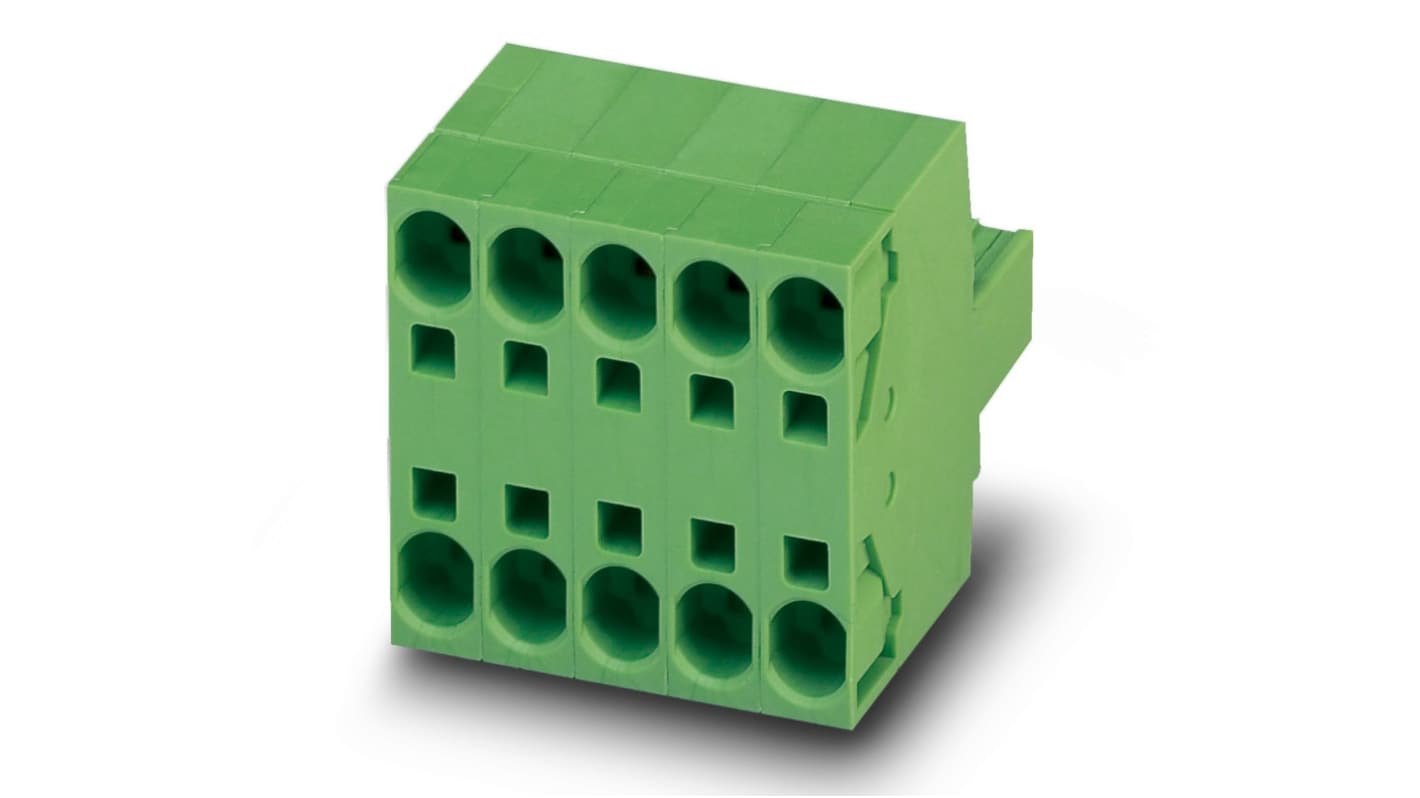

Phoenix Contact, 7.62mm Pitch, TSPC 5/ 8-ST-7.62, 8 Way, Pluggable Terminal Block, Plug, Spring Cage Termination,
- RS Stock No.:
- 854-0231
- Mfr. Part No.:
- 1728510
- Brand:
- Phoenix Contact
Subtotal (1 box of 25 units)*
£661.20
(exc. VAT)
£793.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
25 + | £26.448 | £661.20 |
*price indicative
- RS Stock No.:
- 854-0231
- Mfr. Part No.:
- 1728510
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Pluggable Terminal Block Type | Plug | |
Number of Contacts | 8 | |
Pitch | 7.62mm | |
Series | TSPC 5/ 8-ST-7.62 | |
Termination Method | Spring Cage | |
Current Rating | 41A | |
Voltage Rating | 1 kV | |
Colour | Green | |
Material | Polyamide, Tin | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Pluggable Terminal Block Type Plug | ||
Number of Contacts 8 | ||
Pitch 7.62mm | ||
Series TSPC 5/ 8-ST-7.62 | ||
Termination Method Spring Cage | ||
Current Rating 41A | ||
Voltage Rating 1 kV | ||
Colour Green | ||
Material Polyamide, Tin | ||
- COO (Country of Origin):
- DE
PCB connector, nominal cross section: 6 mm², color: green, nominal current: 41 A, rated voltage (III/2): 1000 V, contact surface: Tin, type of contact: Female connector, Number of potentials: 8, Number of rows: 1, Number of positions per row: 8, number of connections: 16, product range: TSPC 5/..-ST, pitch: 7.62 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, Stecksystem: POWER COMBICON 5, Locking: without, type of packaging: packed in cardboard
