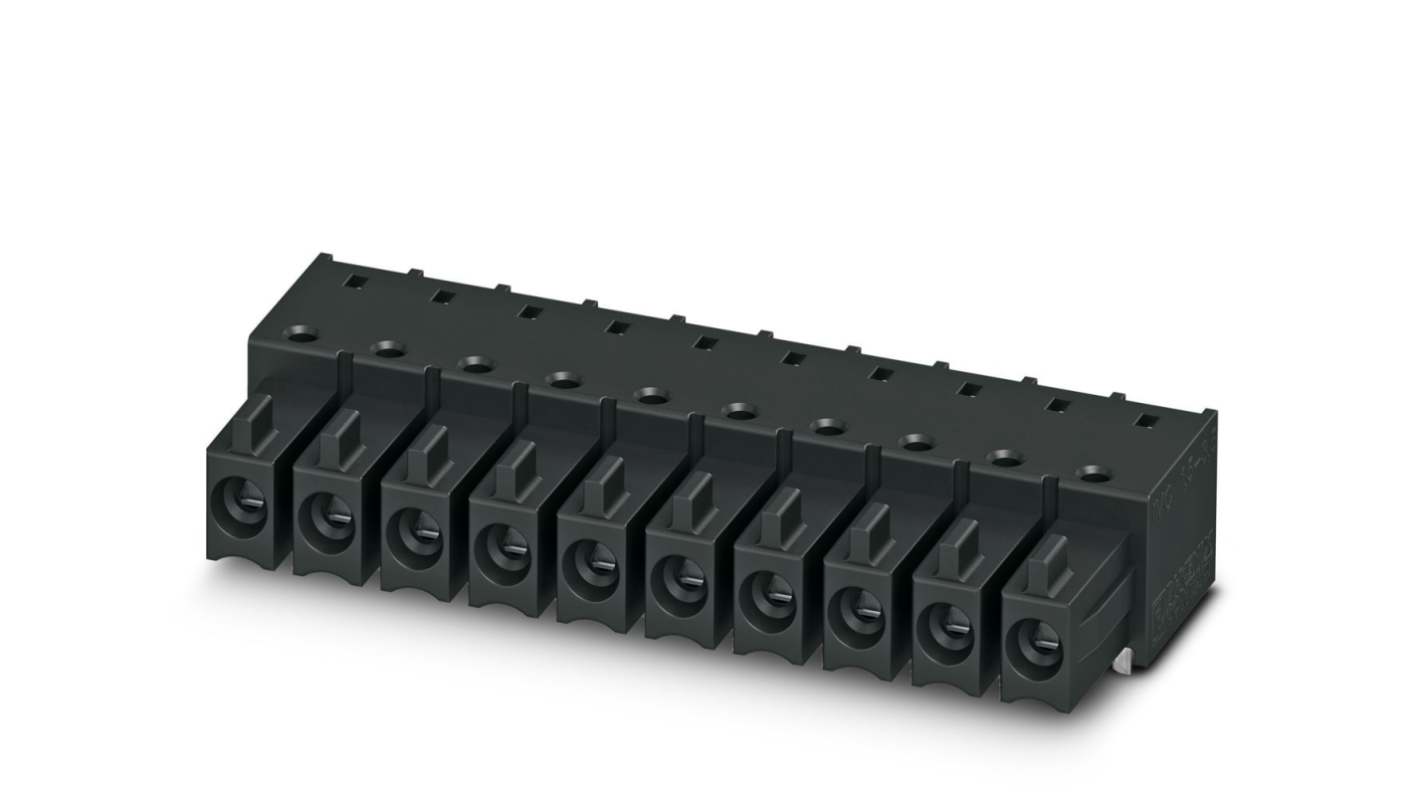

Phoenix Contact 3.5mm Pitch 10 Way Right Angle Pluggable Terminal Block, Inverted Header, Through Hole, Solder
- RS Stock No.:
- 852-0212
- Mfr. Part No.:
- 1830498
- Brand:
- Phoenix Contact
Available to back order for despatch 18/06/2024
Added
Price Each (In a Box of 50)
£3.982
(exc. VAT)
£4.778
(inc. VAT)
Units | Per unit | Per Box* |
50 + | £3.982 | £199.10 |
*price indicative |
- RS Stock No.:
- 852-0212
- Mfr. Part No.:
- 1830498
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PCB headers, nominal cross section: 1.5 mm², color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Female connector, Number of potentials: 10, Number of rows: 1, Number of positions per row: 10, number of connections: 10, product range: IMC 1,5/..-G-THR, pitch: 3.5 mm, mounting: THR soldering, pin layout: Linear double pinning, solder pin [P]: 2 mm, Stecksystem: MINI COMBICON, Locking: without, type of packaging: packed in cardboard
Specifications
Attribute | Value |
---|---|
Pluggable Terminal Block Type | Inverted Header |
Number of Contacts | 10 |
Pitch | 3.5mm |
Series | COMBICON Control |
Number of Rows | 1 |
Body Orientation | Right Angle |
Mounting Type | Through Hole |
Termination Method | Solder |
Current Rating | 8.0A |
Voltage Rating | 320.0 V |
