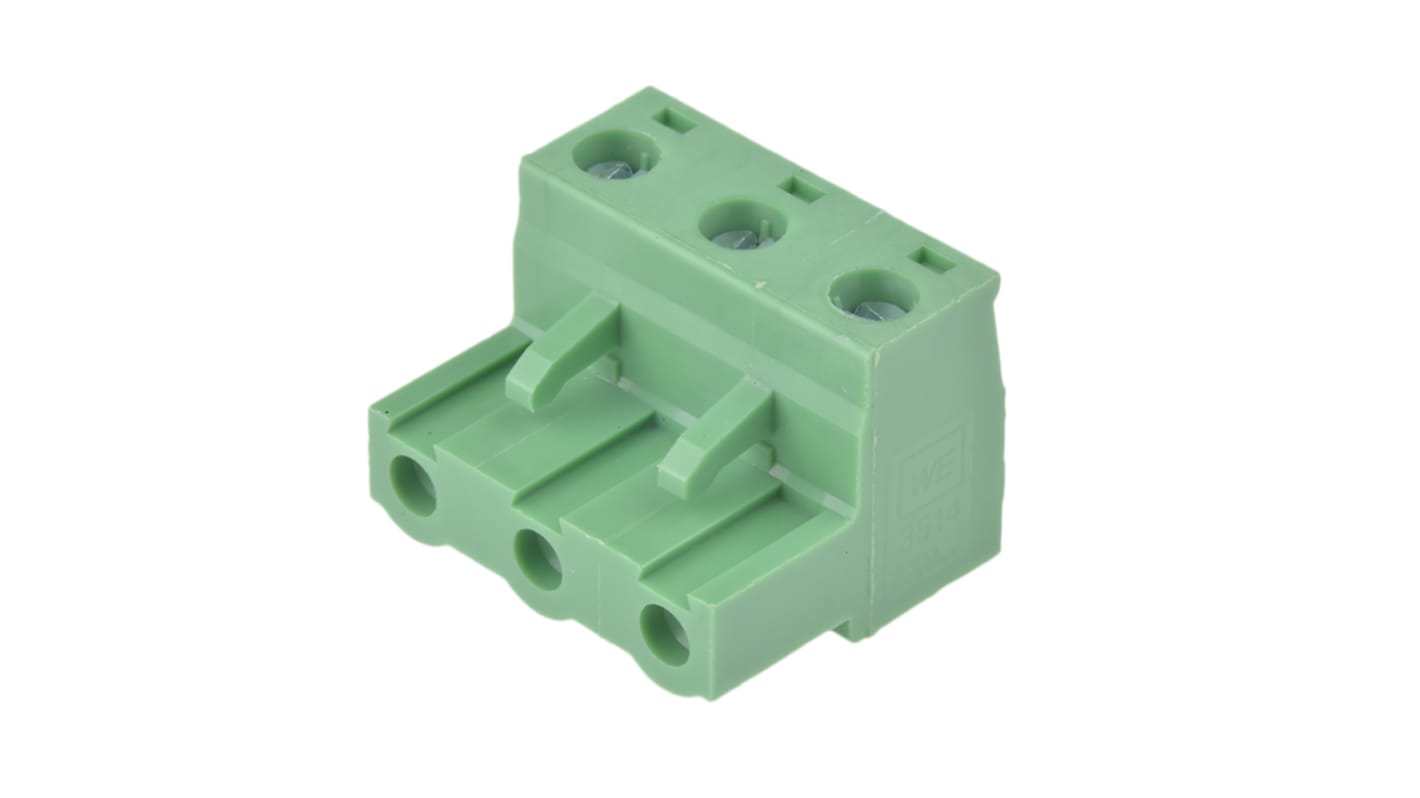

Wurth Elektronik 3514 Series Pluggable Terminal Block, 3-Contact, 7.62 mm Pitch, 1 Row, 691351400003

View all Pluggable Terminal Blocks
Bulk discount available

Subtotal (1 unit)*

£1.79

(exc. VAT)

£2.15

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 112 unit(s) ready to ship
  • Plus 135 unit(s) ready to ship from another location
  • Plus 390 unit(s) shipping from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£1.79
10 - 49£1.71
50 - 99£1.61
100 - 249£1.54
250 +£1.49

*price indicative

Development Kit Box with a flash stating "Win"
Win A Würth Elektronik Lighting Development Kit
Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.
Claim my Lighting Kit
RS Stock No.:
824-6673
Mfr. Part No.:
691351400003
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Number of Contacts

3

Product Type

Pluggable Terminal Block

Pitch

7.62mm

Current

20A

Number of Rows

1

Minimum Wire Size mm²

0.21mm²

Housing Material

Polyamide

Connector Gender

Male

Maximum Wire Size mm²

3.31mm²

Minimum Wire Size AWG

24 AWG

Maximum Wire Size AWG

12 AWG

Orientation

Straight

Colour

Green

Wire Connection Method

Cable Entry

Voltage

300 V ac

Series

3514

Depth

18.2mm

Standards/Approvals

No

Length

26.48mm

Width

15.1 mm

COO (Country of Origin):
CN

Wurth WR-TBL 3514 Series 7.62mm Pitch Vertical Terminal Block Plug Connectors


WR-TBL 3514 series 7.62mm pitch vertical cable mount terminal block plug connectors with female sockets and a 'slot' type M3 screw terminal that accepts a wire size of AWG 24-12. These WR-TBL 3514 series 7.62 mm pluggable terminal block cable mount connectors are made from green UL94-V0 PA66, have a tin plated phosphor bronze wire guard and have latches on the non-wire side.
