MPN

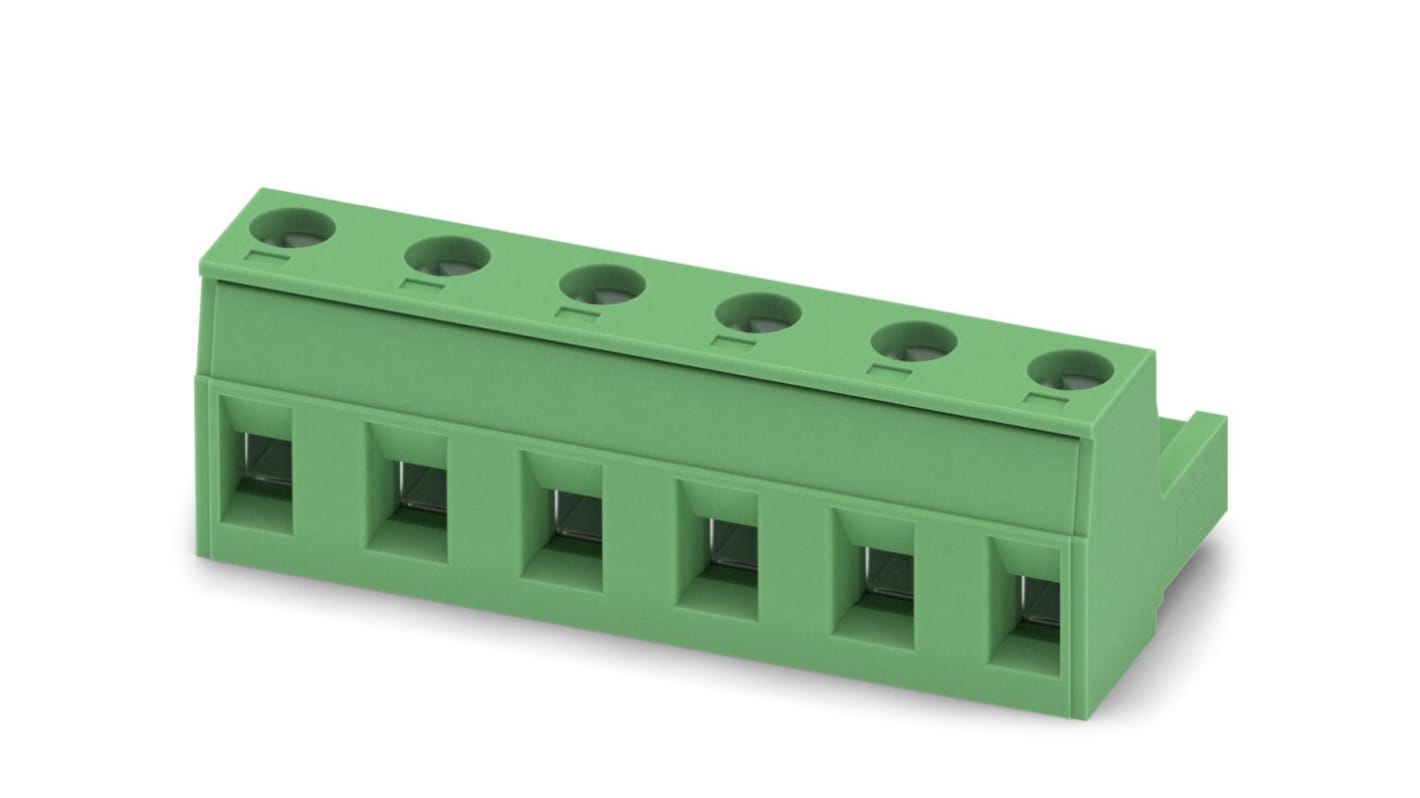

Phoenix Contact GMSTB 2.5/6-ST-7.62 Series Pluggable Terminal Block, 6-Contact, 7.62 mm Pitch, 1 Row

RS Stock No.:: 802-6218
Mfr. Part No.:: 1767041
Brand:: Phoenix Contact

Phoenix Contact GMSTB 2.5/6-ST-7.62 Series Pluggable Terminal Block, 6-Contact, 7.62 mm Pitch, 1 Row

Bulk discount available

Subtotal (1 unit)*

£7.25

(exc. VAT)

£8.70

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

12 unit(s) ready to ship
Plus 50 unit(s) shipping from 03 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£7.25
10 - 24	£6.54
25 - 49	£5.87
50 - 99	£5.29
100 +	£4.76

*price indicative

Phoenix Contact Jumper Bars

Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.

Buy Phoenix Contact Jumper Bars

RS Stock No.:: 802-6218
Mfr. Part No.:: 1767041
Brand:: Phoenix Contact

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Product Type	Pluggable Terminal Block
	Number of Contacts	6
	Pitch	7.62mm
	Number of Rows	1
	Current	12A
	Minimum Wire Size mm²	0.2mm²
	Housing Material	Polyamide
	Connector Gender	Female
	Maximum Wire Size mm²	2.5mm²
	Minimum Wire Size AWG	24 AWG
	Maximum Wire Size AWG	12 AWG
	Orientation	Straight
	Colour	Green
	Wire Connection Method	Screw Connection with Tension Sleeve
	Voltage	630 V
	Width	18.2 mm
	Series	GMSTB 2.5/6-ST-7.62
	Standards/Approvals	No
	Length	43.72mm
	Depth	15mm

	Select all
	Brand Phoenix Contact
	Product Type Pluggable Terminal Block
	Number of Contacts 6
	Pitch 7.62mm
	Number of Rows 1
	Current 12A
	Minimum Wire Size mm² 0.2mm²
	Housing Material Polyamide
	Connector Gender Female
	Maximum Wire Size mm² 2.5mm²
	Minimum Wire Size AWG 24 AWG
	Maximum Wire Size AWG 12 AWG
	Orientation Straight
	Colour Green
	Wire Connection Method Screw Connection with Tension Sleeve
	Voltage 630 V
	Width 18.2 mm
	Series GMSTB 2.5/6-ST-7.62
	Standards/Approvals No
	Length 43.72mm
	Depth 15mm

Datasheet 1767041

COO (Country of Origin):: DE

Phoenix Contact CLASSIC COMBICON GMSTB 7.62mm PCB Connectors

A Phoenix Contact range of CLASSIC COMBICON 7.62mm pitch GMSTB PCB Terminal Blocks for using anywhere in the world. The 2.5 series Terminal Block cable mount plug-in connectors have a female socket and a 0.2 to 2.5mm2 screw termination.

Features and Benefits

• 180° wire entry

• Pitch of 7.62 mm for when you need increased voltage

• Wire to wire

• Screw connection

• Various positions

• 24-12 wire gauge range

For screwdriver see stock number 390-9641

Phoenix Contact COMBICON 7.62mm Two Part Terminal Blocks

Approvals

UL94V-0
