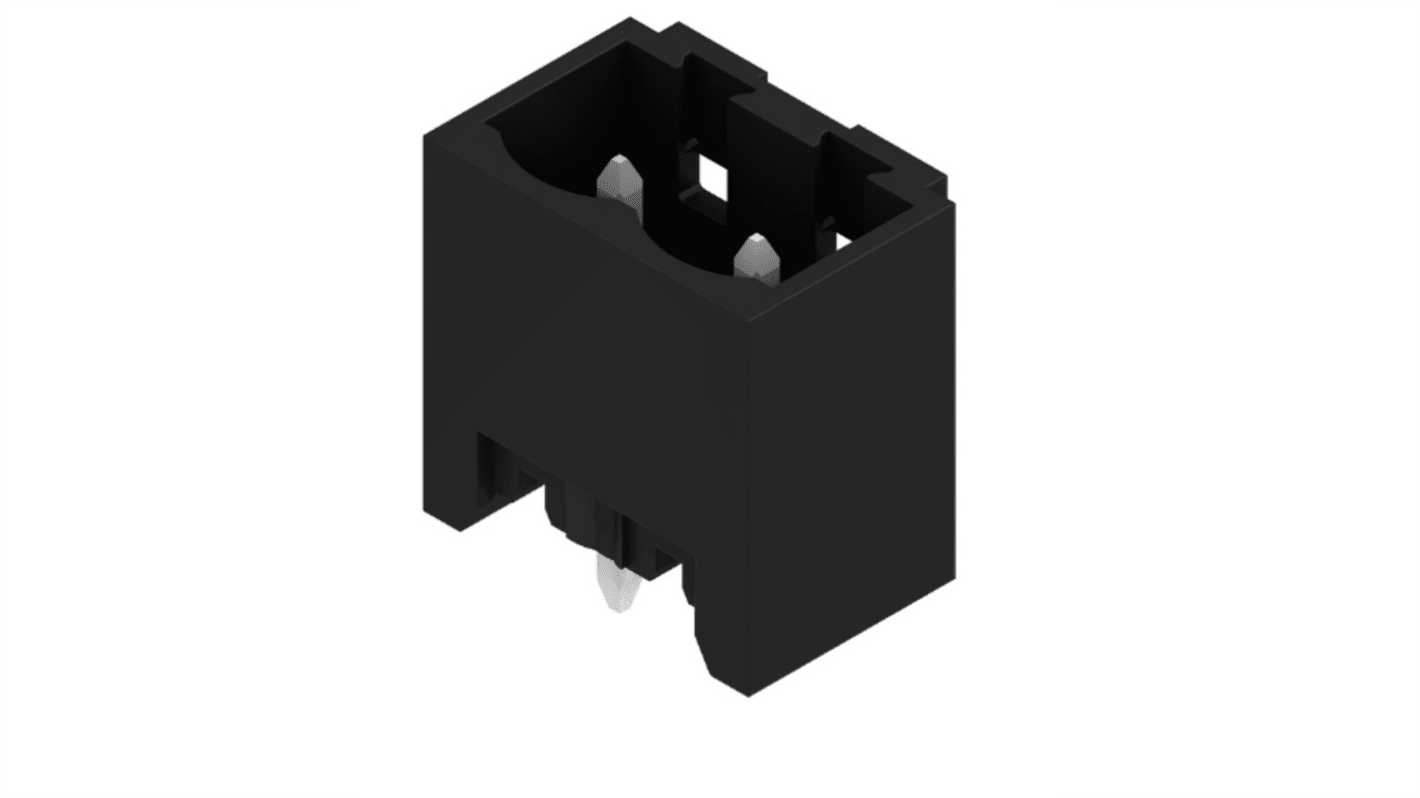

Weidmuller, 5.08mm Pitch, OMNIMATE SL, 2 Way, , Pluggable Terminal Block, Header, Through Hole, Solder Termination,

View all Pluggable Terminal Blocks
Bulk discount available

Subtotal (1 pack of 5 units)*

£2.17

(exc. VAT)

£2.605

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 120£0.434£2.17
125 - 370£0.288£1.44
375 - 995£0.284£1.42
1000 - 1995£0.28£1.40
2000 +£0.276£1.38

*price indicative

RS Stock No.:
733-0601
Mfr. Part No.:
1838210000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Pluggable Terminal Block Type

Header

Number of Contacts

2

Pitch

5.08mm

Series

OMNIMATE SL

Number of Rows

1

Body Orientation

Straight

Mounting Type

Through Hole

Termination Method

Solder

Current Rating

19.0A

Voltage Rating

400.0 V

Colour

Black

Contact Material

Copper Alloy

COO (Country of Origin):
DE

Closed Ends Vertical SMT Headers


These SL-SMT series 5.08mm pitch Omnimate headers have a 3.2mm pin length and a high temperature body material making them suitable for Wave or Reflow soldering. This enable these Through Hole Reflow (THR) connectors to be used on appropriately designed boards using Surface Mount Technology (SMT).

Note

For mating cable mount terminals see typical stock numbers 733-0777 for Screw type or 733-0828 for Rising Clamp type or 733-0878 for Tension Clamp Screwless type.


5.08mm Pitch -Weidmüller Omnimate Range


Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.


• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
