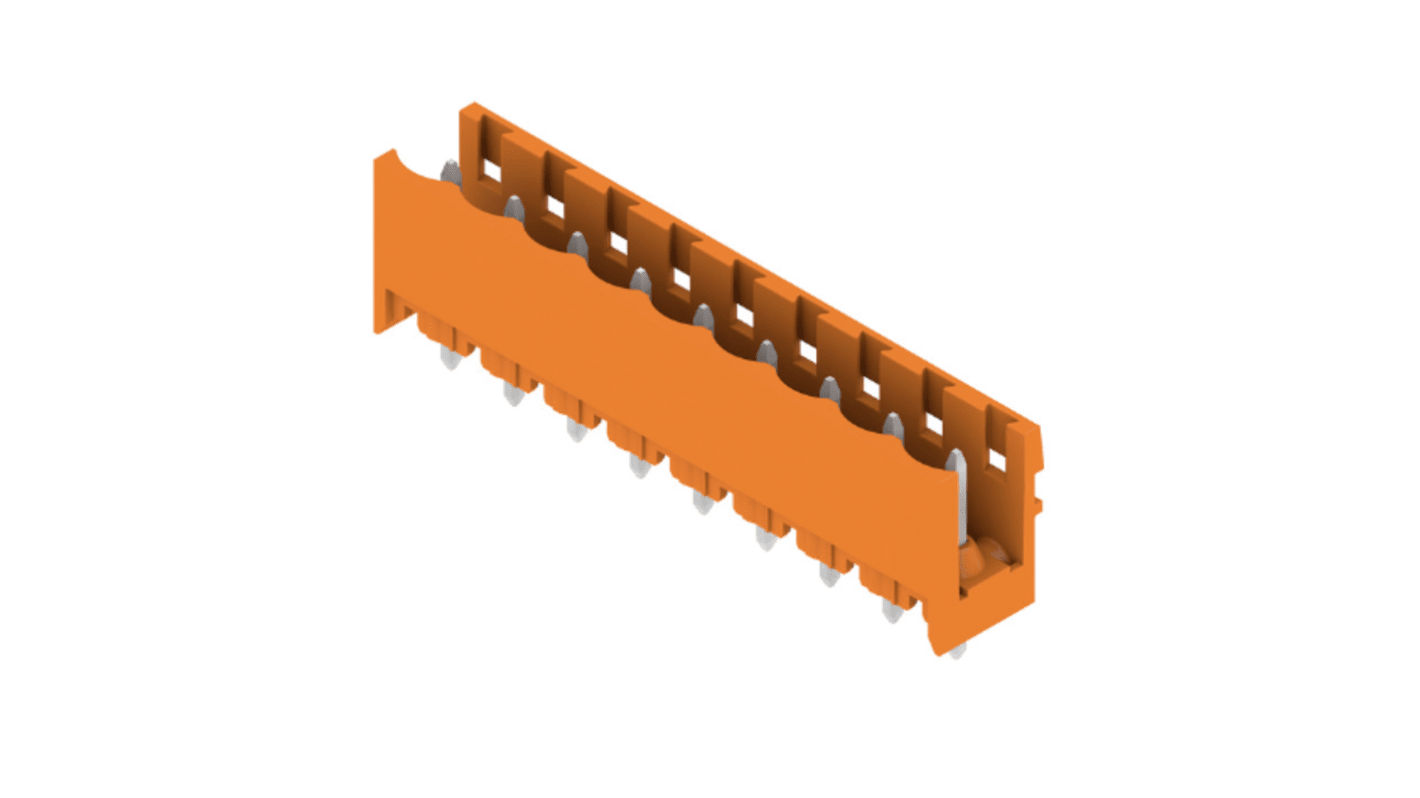

Weidmuller, 5.08mm Pitch, OMNIMATE SL, 9 Way, , Pluggable Terminal Block, Header, Through Hole, Solder Termination,

These SL 5.08mm pitch Omnimate headers have a 3.2mm pin length for optimised Wave soldering.

For mating cable mount terminals see typical stock numbers 733-0777 for Screw type or 733-0828 for Rising Clamp type or 733-0878 for Tension Clamp Screwless type.

This pluggable terminal block is designed for reliable connectivity in various applications. With a 5.08mm pitch and nine contact configuration, it features a straight body orientation suitable for through hole mounting. This block has robust performance characteristics, including a current rating of 18A and a voltage rating of 400V, making it a reliable choice for electrical connections.

• Straight body orientation facilitates easy installation on perforated boards
• High current rating of 18A supports demanding requirements
• Durable copper alloy material ensures excellent conductivity
• Optimised for wave soldering to minimise assembly time
• Manual coding capability enhances versatility for various setups
• Orange colour coding simplifies identification during assembly

• Used for industrial automation systems
• Ideal for connections in electronics assembly
• Suitable for mechanical engineering
• Recommended for solder terminal connection for reliable joint integrity
• Used for secure connections in various electrical installations

The connector employs a solder terminal connection, ensuring a secure and stable joint for optimal performance.

Yes, it can function within an operating temperature range of -50 to 100 °C, making it suitable for demanding environments.

This connector is equipped with nine contacts, allowing for multiple wiring configurations.

Yes, the terminal block can be manually coded or ordered pre-coded for convenience and flexibility in applications.

5.08mm Pitch -Weidmüller Omnimate Range

Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.

• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
