MPN

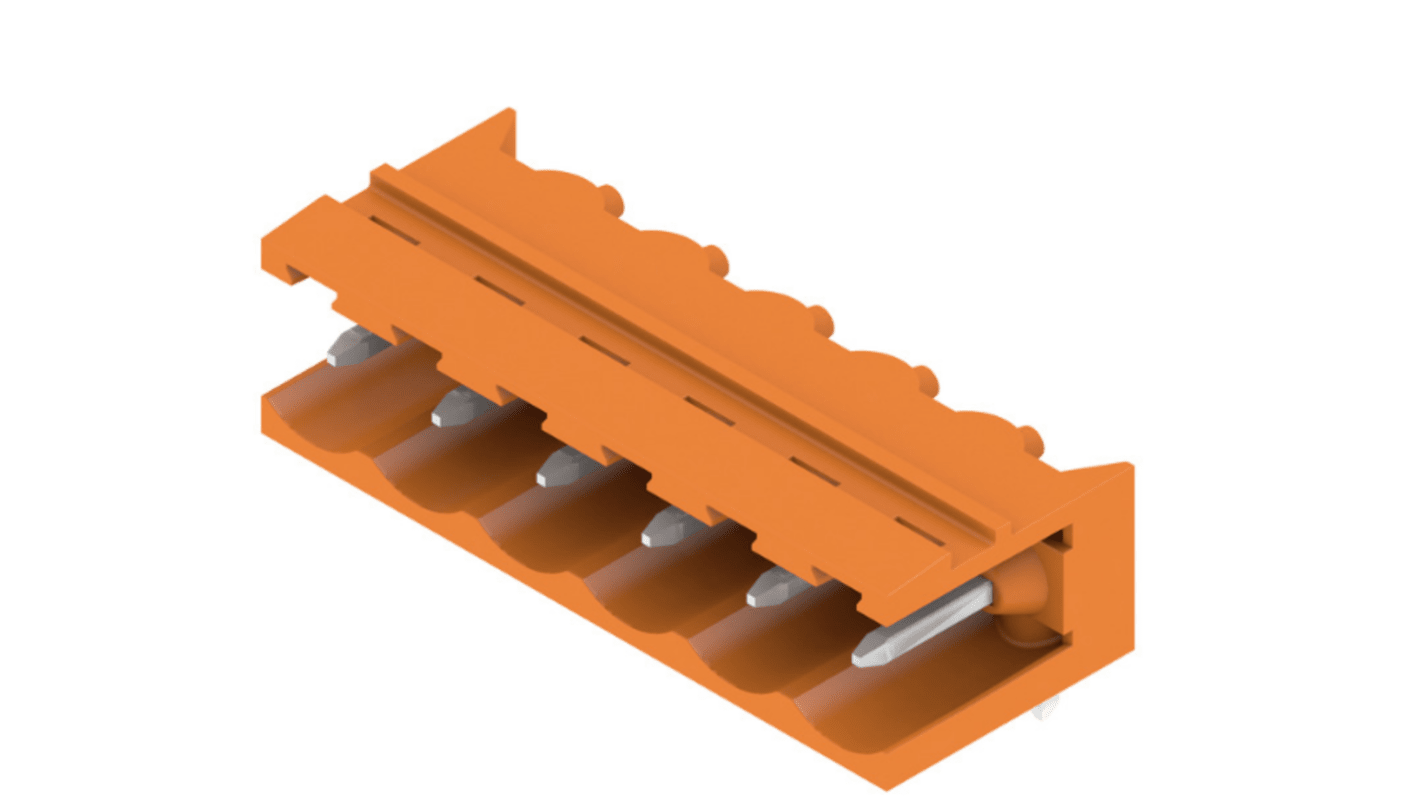

Weidmuller, 5.08mm Pitch, SL, 6 Way, Right Angle, Pluggable Terminal Block, Header, Through Hole, Solder Termination,

RS Stock No.:: 733-0409
Mfr. Part No.:: 1146810000
Brand:: Weidmüller

Weidmuller, 5.08mm Pitch, SL, 6 Way, Right Angle, Pluggable Terminal Block, Header, Through Hole, Solder Termination,

Bulk discount available

Subtotal (1 pack of 5 units)*

£5.91

(exc. VAT)

£7.09

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

70 unit(s) ready to ship
Plus 25 unit(s) ready to ship from another location
Plus 150 unit(s) shipping from 09 September 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 120	£1.182	£5.91
125 - 370	£1.066	£5.33
375 - 995	£0.942	£4.71
1000 - 1995	£0.83	£4.15
2000 +	£0.768	£3.84

*price indicative

RS Stock No.:: 733-0409
Mfr. Part No.:: 1146810000
Brand:: Weidmüller

Horizontal Open Ends Thro Hole Headers 3.2mm Pin Length

These SL 5.08mm pitch Omnimate headers have a 3.2mm pin length for optimised Wave soldering.

Note

For mating cable mount terminals see typical stock numbers 733-0777 for Screw type or 733-0828 for Rising Clamp type or 733-0878 for Tension Clamp Screwless type.

Weidmuller Series SL Pluggable Terminal Block, 6 Contacts, 5.08mm Pitch - 1146810000

This pluggable terminal block is designed for efficient connectivity in various applications. Known as a header terminal block, it features a right-angle orientation and a through hole solder connection. With 6 contacts and a pitch of 5.08mm, this terminal block establishes robust electrical connections while ensuring space-saving integration in your projects.

Features & Benefits

• High current rating of 18A ensures reliable power transmission
• Voltage rating up to 400V caters to diverse electrical environments
• Constructed from copper alloy for excellent conductivity and durability
• Right-angle design facilitates easier routing in tight spaces
• Solder terminal connection provides secure and stable installations
• Compatible with both coded and pre-coded configurations

Applications

• Suitable for use in automation control systems
• Ideal for in electrical machinery and devices
• Used for connecting printed circuit boards securely
• Recommended for industrial electronics requiring robust connectivity

What materials are used in the construction of this terminal block?

This terminal block is made from copper alloy for the contacts, while the insulation is constructed from PAGF, ensuring high reliability and durability in various operating conditions.

How does the design contribute to ease of installation?

The right-angle orientation allows for straightforward integration into PCBs, while the through hole solder connection reduces mechanical strain on solder points during installation, enhancing stability.

Can this terminal block withstand extreme temperatures?

Yes, it operates effectively across a temperature range from -50 to 100 °C, making it suitable for demanding environments without compromising performance.

What makes this terminal block suitable for high current applications?

With a current rating of 18A, the design incorporates a robust copper alloy contact material that ensures minimal resistance and heat generation during operation.

Is this product conforming to industry standards?

Yes, the terminal block meets internationally recognised standards, upholding reliability and safety in electrical installations, which are essential for automation and industrial applications.

5.08mm Pitch -Weidmüller Omnimate Range

Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.

• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Weidmüller
	Pluggable Terminal Block Type	Header
	Number of Contacts	6
	Pitch	5.08mm
	Series	SL
	Number of Rows	1
	Body Orientation	Right Angle
	Mounting Type	Through Hole
	Termination Method	Solder
	Current Rating	18.0A
	Voltage Rating	400.0 V
	Colour	Orange
	Contact Material	Copper Alloy
	Material	Copper Alloy (Contact), PAGF (Insulation)

	Select all
	Brand Weidmüller
	Pluggable Terminal Block Type Header
	Number of Contacts 6
	Pitch 5.08mm
	Series SL
	Number of Rows 1
	Body Orientation Right Angle
	Mounting Type Through Hole
	Termination Method Solder
	Current Rating 18.0A
	Voltage Rating 400.0 V
	Colour Orange
	Contact Material Copper Alloy
	Material Copper Alloy (Contact), PAGF (Insulation)
